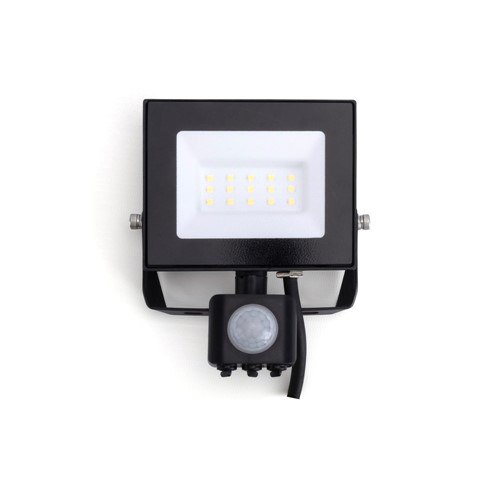

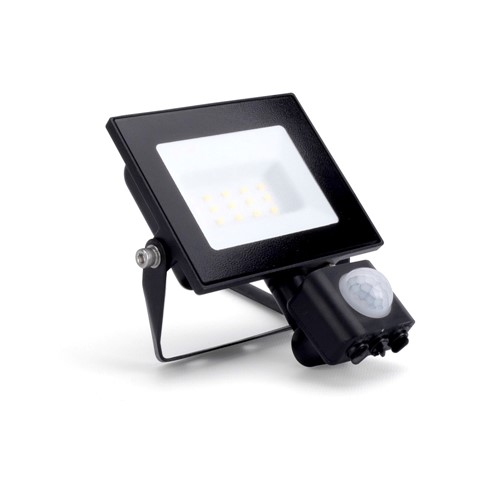

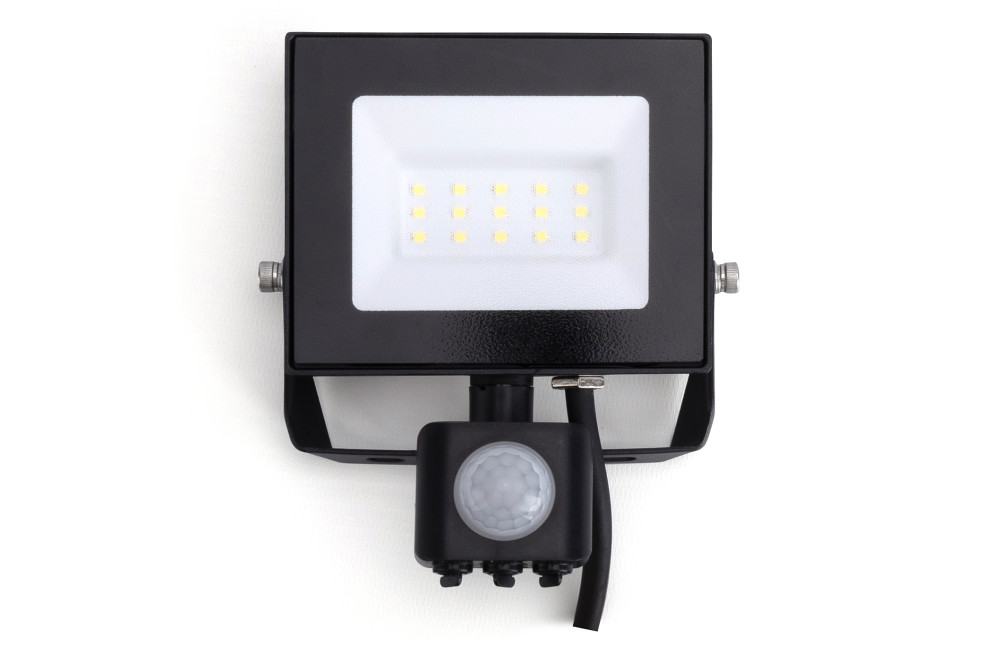

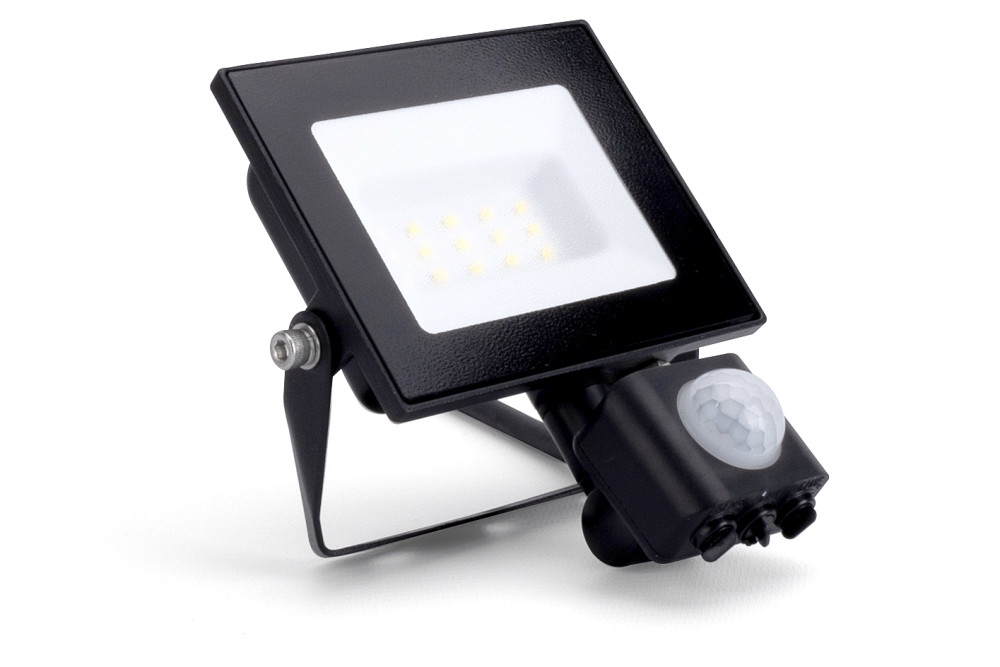

COMPACT SLIM FLOODLIGHT PIR 10W 1000LM 4000K 120 BEAM 100LM/W IP65 IK08 INTEGRAL LED BLACK

Part Number:

ILFLE037

The Integral LED Compact Slim Floodlight is designed for industrial, commercial, and large-scale residential applications.

With an IP65 weatherproof rating and IK05 impact protection, its durable black aluminium construction and polycarbonate lens ensure long-lasting performance.

Producing a powerful 1000 lumens from only 10W input (100lm/W efficacy) and 4000K cool white colour temperature, it provides bright, energy-efficient lighting over a 120° beam angle.

Featuring a PIR motion sensor for enhanced security, the floodlight automatically activates when movement is detected reducing energy costs.

Combining robust features with an affordable price point, the Compact Slim delivers exceptional value for money.

Product Feature 1:
1000lm
Product Feature 2:
IP65 (including sensor)
Product Feature 3:
Cool White
Product Feature 4:
100lm/W
Availability:
0

More stock due in on 09/06/2025

Suggested products

Barcode 5055788293538
Quick Order Code 075318
Category Luminaires
Range Name Compact Slim
Product Type Floodlights
Product Body Finish Black
Market Segment Residential and Commercial
Finish Black
Warranty (Years) 3
Emergency Option No
Product Length (mm) 145
Product Depth (mm) 71
Product Width (mm) 126.5
Product Weight (g) 210
Optic Clear Refractor
Material Aluminium, Polycarbonate, Glass
Construction Die Cast Aluminium
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Wall Mounted
Mounting Type Pre Wired 1M flex
Placement / Application Indoor, Outdoor, General Lighting
Beam Type Symmetrical
Luminous Flux in Lumens (lm) 1000
Luminous efficacy (lm/W) 100
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 70
Frequency Range (Hz) 50
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 25000
Sensor / Overide Yes with sensor
Switching Cycles 50000
Useful Lumens (lm) 1000
Power Consumption (W) 10
Power Factor 0.5
Voltage Range (v) 220-240
Amperage (mA) 50
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK05
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Barcode 5055788293538
Package Weight (g) 100
Package Length (mm) 132
Package Width (mm) 63
Package Depth (mm) 150

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
