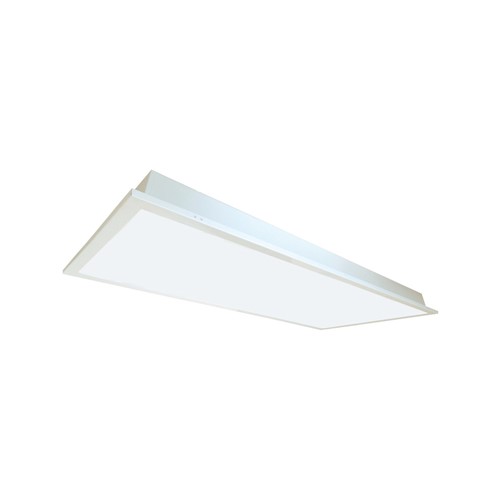

HIGH PERFORMANCE+ PANEL 1200X300 IP44 3500LM 25W 4000K NON-DIMM 140LM/W BACKLIT INTEGRAL

Part Number:

ILP1230B001

This 25W and 3500lm Integral LED Performance+ panel delivers a uniform white light across the whole of its surface. Its very high level of efficacy (140lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.

The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations.

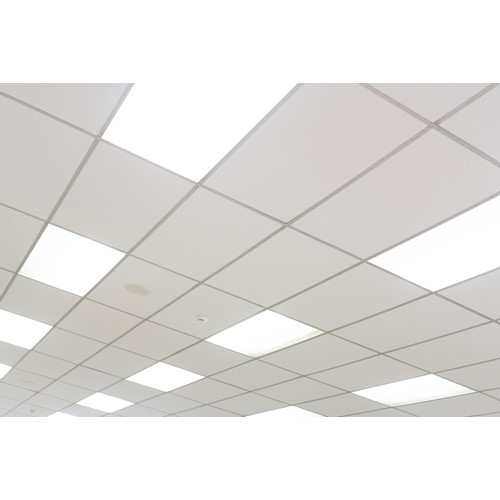

Its lightweight steel and PC design means installation is simple and maintenance is minimal. It is an ideal solution for many applications: offices, meeting rooms, corridors, airports, schools/universities and retails environments.

Product Feature 1:
Cool White
Product Feature 2:
3500 Lumens
Product Feature 3:
140lm/W
Product Feature 4:
TP(a) rated Polycarbonate diffuser
Product Feature 5:
5 Year Warranty
Availability:
3

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 142542
Barcode 5055788228981
Category Panels
Range Name High Performance+
Product Type 1200 x 300
Product Body Finish White steel
Market Segment Commercial indoor
Warranty (Years) 5
Product Length (mm) 1196
Product Depth (mm) 85
Product Width (mm) 296
Product Weight (g) 3100
Optic TP(a) rated Polycarbonate diffuser
Material Steel, Polycarbonate
Construction Folded Mild Steel and Polycarbonate diffuser
Luminaire Fixing Recessed in ceiling grid, surface mounted (with accessory)
Panel Equivalent The Luminaire is Class II
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 3500
Luminous efficacy (lm/W) 140
Peak Intensity (Cd) 1307
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Back-lit
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power (W) 25
Power Consumption (W) 25
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 86.4
Amperage (mA) 105
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP40
IP Rating (Ingress Protection) IP44
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
TP rating TP(a)
Package Weight (g) 4200
Package Length (mm) 1250
Package Width (mm) 650
Package Depth (mm) 108
Qty per euro pallet 25
