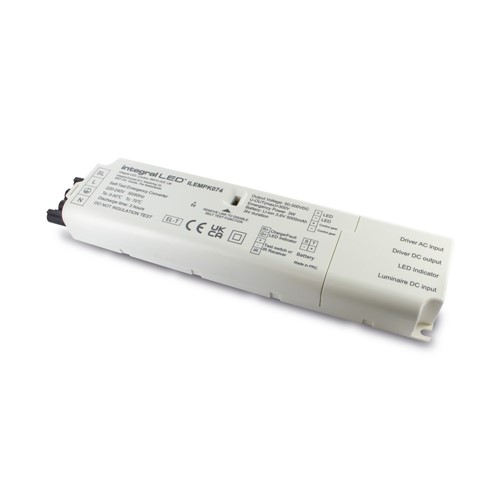

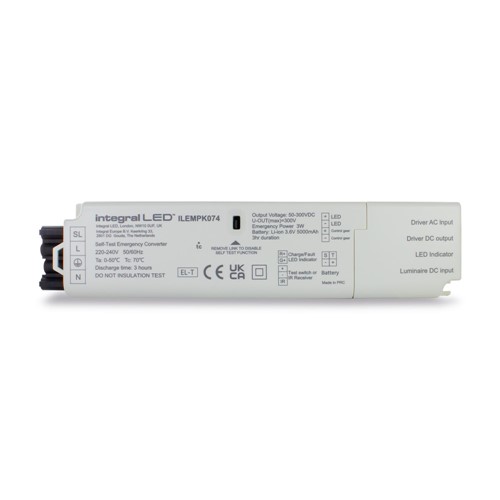

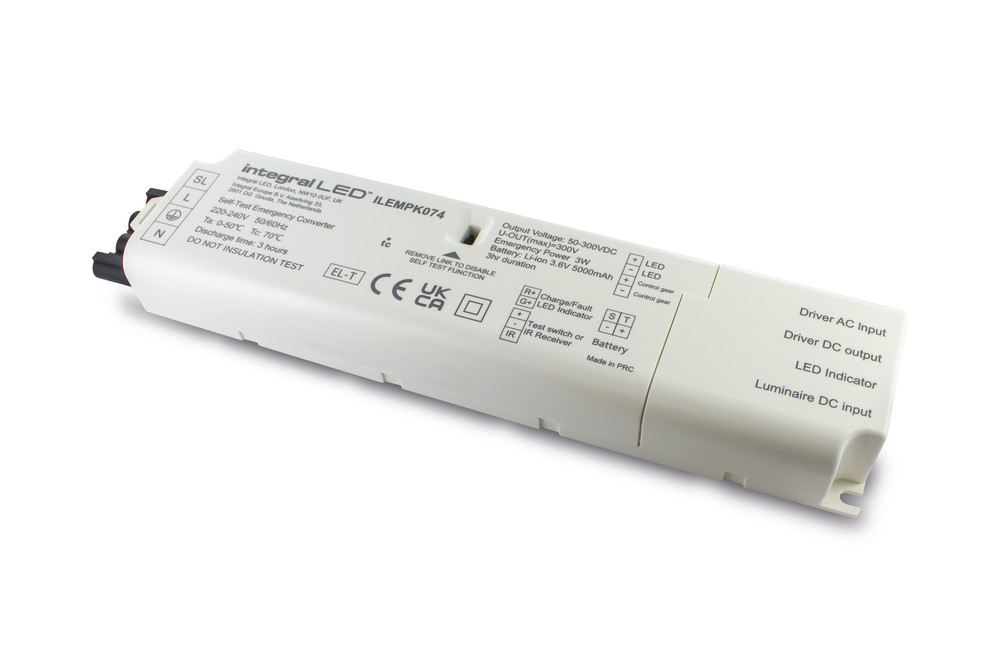

EMERGENCY CONVERSION KIT IP20 FOR ILP6060B041 ILP6060B042 and ILP6060B043 PANELS 3HR WITH REMOTE LED INDICATOR AND TEST BUTTON

Part Number:

ILEMPK074

This compact, all-in-one Emergency Conversion Kit is suitable for Integral High Performance+ Variable panels only for use in switchable Maintained mode. It will provide emergency lighting for 3 hours. It is simple to install and features an optional remote test button and LED indicator.

Product Feature 1:
3W
Product Feature 2:
Lithium ION battery
Product Feature 3:
3 Year Warranty (1 year for battery)

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 919859
Barcode 5055788253105
Category Emergency
Range Name Conversion Kit
Product Type Emergency Conversion Kit
Product Body Finish Matt white
Market Segment Commercial indoor
Finish Matt White
Warranty (Years) 3
Emergency Option Optional Conversion Kit
Emergency Category Emergency Kit
Linkable No
Product Length (mm) 230
Product Depth (mm) 26
Product Width (mm) 55
Product Weight (g) 325
Material Polycarbonate
Construction Polycarbonate
Placement / Application Indoor, Emergency Lighting
Frequency Range (Hz) 50
Useful Lumens (lm) 0
Power Consumption (W) 3
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Output Voltage (V) 50-300
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Type Non-Maintained
LVD Certified Yes
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK06
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 40
Package Weight (g) 405
Package Length (mm) 295
Package Width (mm) 80
Package Depth (mm) 30
