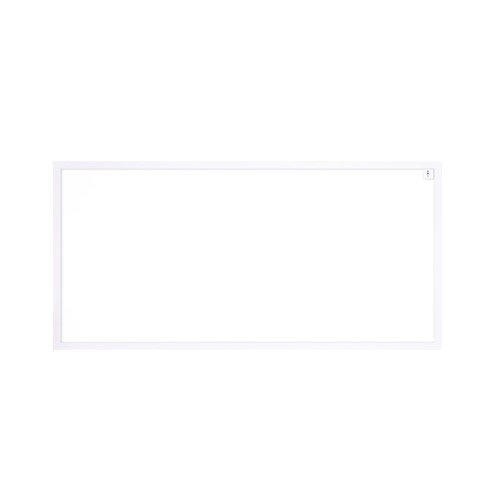

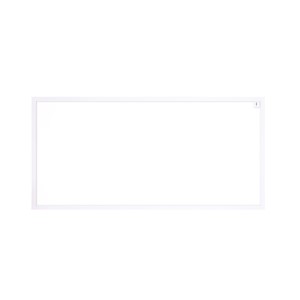

HIGH PERFORMANCE+ PANEL EMERGENCY 3HR 1200X600 IP40 6900LM 46W 4000K NON-DIMM 150LM/W BACKLIT INTEGRAL
Part Number:
ILP1260B007
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
This 46W and 6900lm Integral LED High Performance+ panel with integrated emergency function delivers a uniform Cool white light across the whole of its surface. Its very high level of efficacy (150lm/W) offers savings in running cost against traditional 144W fluorescent fitting as well as many other LED panel.
Its lightweight steel, integrated emergency pack and polycarbonate diffuser means installation is simple and maintenance is minimal. With charge indicator and self-test button positioned on the front of the panel it can then be viewed from all angles so continued function can be quickly confirmed. Once installed correctly in the event of mains power failure the panel will continue emitting light (150 lumen output) for a minimum of 3 hours.
All Integral LED emergency panels comply with BS EN 60598-2-22 and comply with designs that require compliance with BS EN 50172:2004.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 6900 Lumens
- Product Feature 3:
- 150lm/W
- Product Feature 4:
- TP(a) rated Polycarbonate diffuser
- Product Feature 5:
- 5 Year Warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788221623 |
|---|---|
| Quick Order Code | 233156 |
| Category | Panels |
| Range Name | High Performance+ |
| Product Type | 1200 x 600 |
| Product Body Finish | White steel |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Panels |
| Product Length (mm) | 1196 |
| Product Depth (mm) | 87 |
| Product Width (mm) | 596 |
| Product Weight (g) | 5550 |
| Optic | TP(a) rated Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |

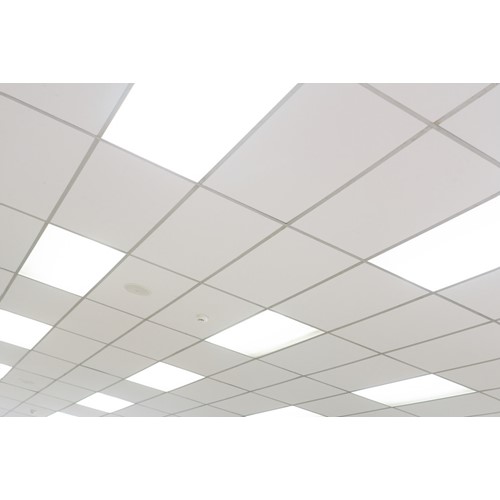

| Luminaire Fixing | Recessed in ceiling grid, surface mounted (additional surface mounting kit requied) |
| Panel Equivalent | The Luminaire is Class II |
| Placement / Application | Indoor, General Lighting, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 6900 |
|---|---|
| Luminous efficacy (lm/W) | 150 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Back-lit |
| Lifetime (hours) | 50000 |
| Lighting Method | Back-lit |
| Lumens in Emergency mode (lm) | 150 |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 46 |
|---|---|
| Power Consumption (W) | 46 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 50 |
| Battery Configuration | Panasonic HHR210AH DC1.2V 2100mAh |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP40 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(a) |
Packaging
| Barcode | 5055788221623 |
|---|---|
| Package Weight (g) | 8530 |
| Package Length (mm) | 1250 |
| Package Width (mm) | 650 |
| Package Depth (mm) | 108 |
| Qty per euro pallet | 12 |
