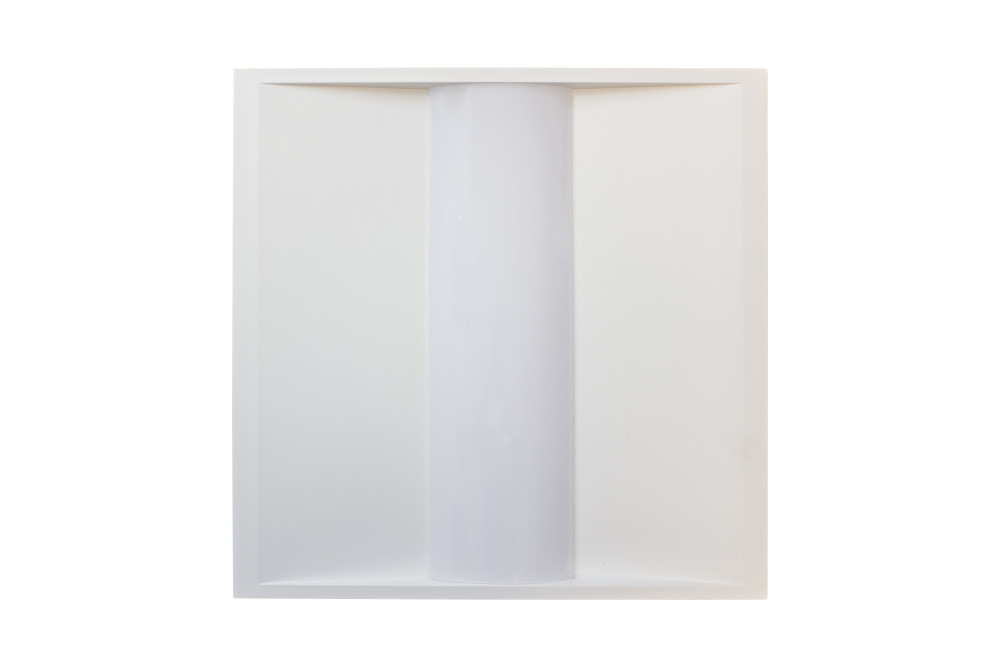

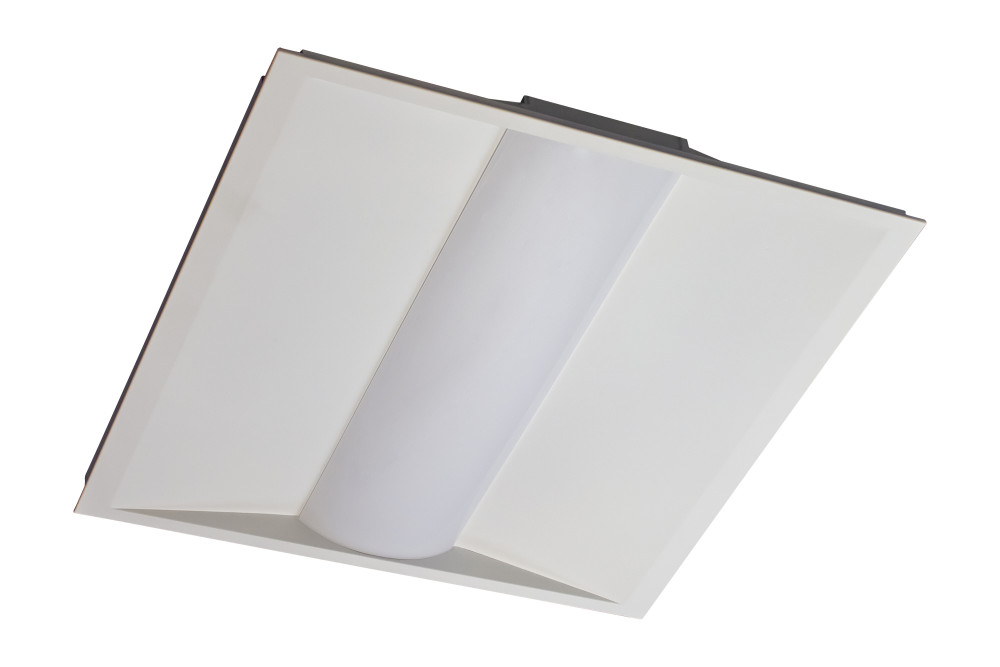

ARC LED RECESSED MODULAR 600x600 3380lm 26W CCT SWITCHABLE 3000K 4000K 5000K TPA BACKLIT NON-DIMMABLE 130lm/w
Part Number:
ILP6060B046
Integral LED’s Arc recessed modular fittings feature a Tri-surfaced angled construction with a prismatic diffuser. It incorporates direct and indirect lighting, helping to achieve URG<19 ratings. The angled construction also allows for more control of the beam angle delivering a more attractive light compared to standard panels.
Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.
The prismatic TP(a) polycarbonate diffuser has been tested and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations (The testing is performed to this standard by a certified lab in China).
Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.
The prismatic TP(a) polycarbonate diffuser has been tested and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations (The testing is performed to this standard by a certified lab in China).
- Product Feature 1:
- CCT Switchable 3000K-4000K-5000K
- Product Feature 2:
- 3380 Lumens
- Product Feature 3:
- 130lm/W
- Product Feature 4:
- IP40
- Product Feature 5:
- TP(a) rated diffuser
- Product Feature 6:
- 5 Year Warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 350218 |
|---|---|
| Barcode | 5055788275121 |
| Category | Panels |
| Range Name | Arc |
| Product Type | 600 x 600 |
| Product Body Finish | RAL9016 |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Length (mm) | 595 |
| Product Depth (mm) | 50 |
| Product Width (mm) | 595 |
| Product Weight (g) | 2400 |
| Optic | TP(a) rated Polycarbonate diffuser |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied) |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 3380 |
|---|---|
| Luminous efficacy (lm/W) | 130 |
| Peak Intensity (Cd) | 1100 |
| Correlated Colour Temperature (CCT) (K) | 3000-4000-5000 |
| Colour Temperature | 3000/4000/5000 - Warm White/Cool White/Daylight |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Back-lit |
| Lifetime (hours) | 50000 |
| Lighting Method | Back-lit |
| Switching Cycles | 30000 |
Electrical Data
| Power Consumption (W) | 26 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP40 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(a) |
Packaging
| Package Weight (g) | 2800 |
|---|---|
| Package Length (mm) | 652 |
| Package Width (mm) | 635 |
| Package Depth (mm) | 75 |
