EVO LED RECESSED MODULAR 1200x300 3600lm 36W 4000k TPA UGR<19 BACKLIT NON-DIMM 100lm/w INTEGRAL

Part Number:

ILP1230B006

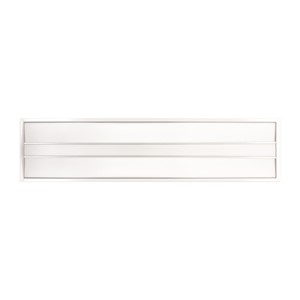

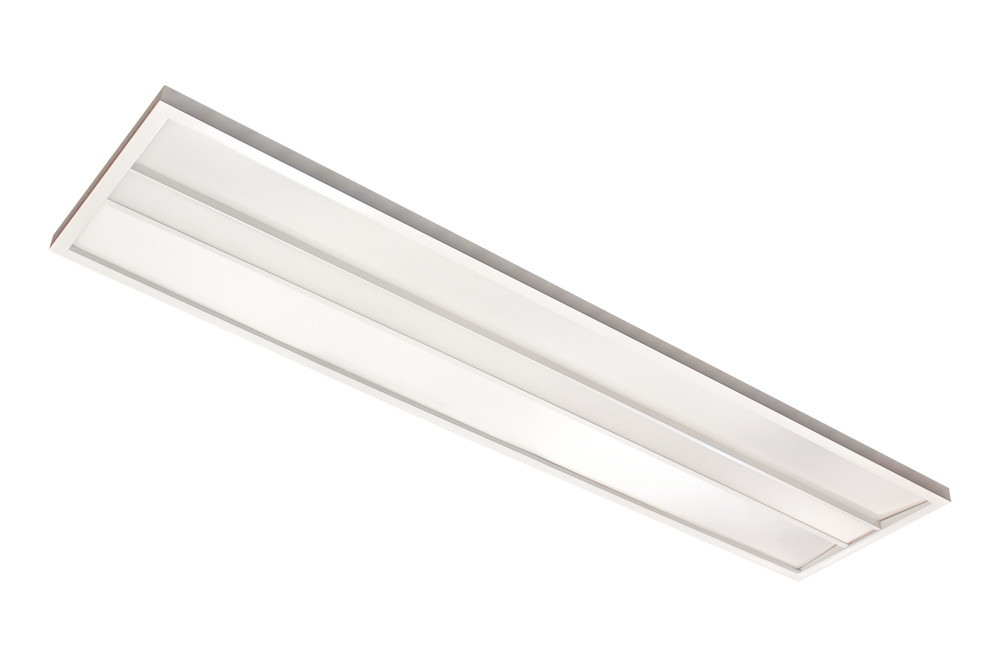

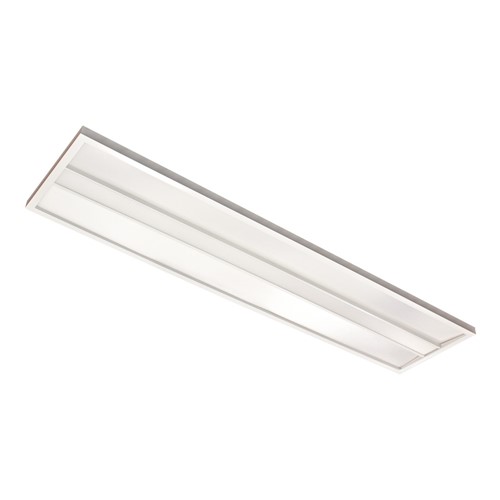

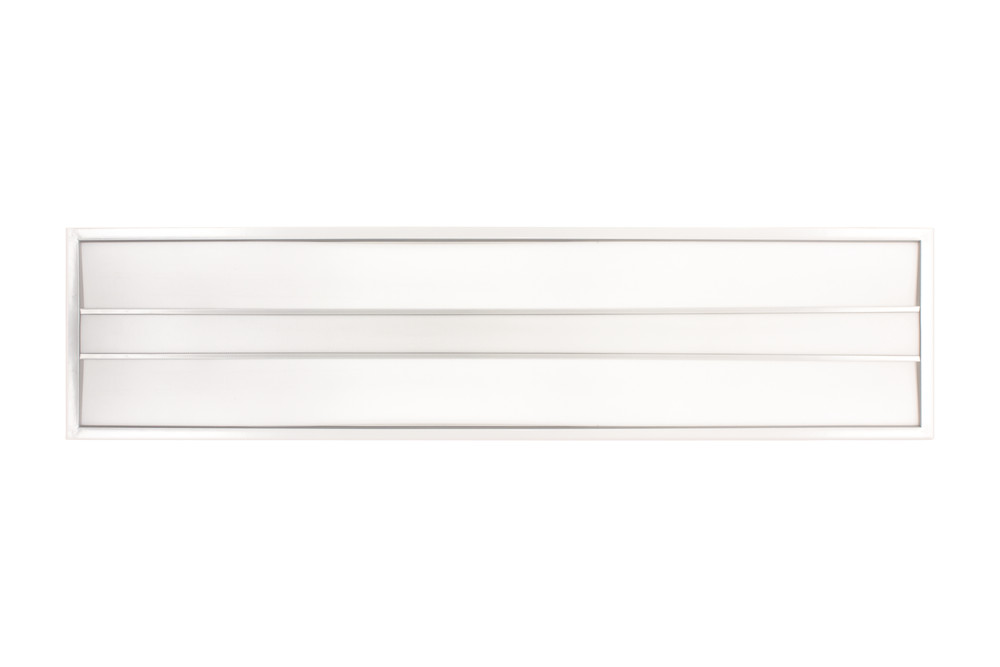

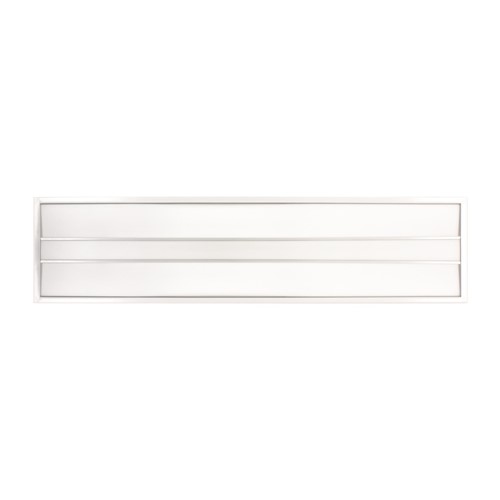

Integral LED’s recessed modular fittings feature a 3-surface angled construction with a prismatic diffuser, helping achieve URG<19 rating without modifying the traditional diffuser present in standard panels. The angled construction also allows for more control of the beam angle delivering a more attractive light compared to standard panels.

Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.

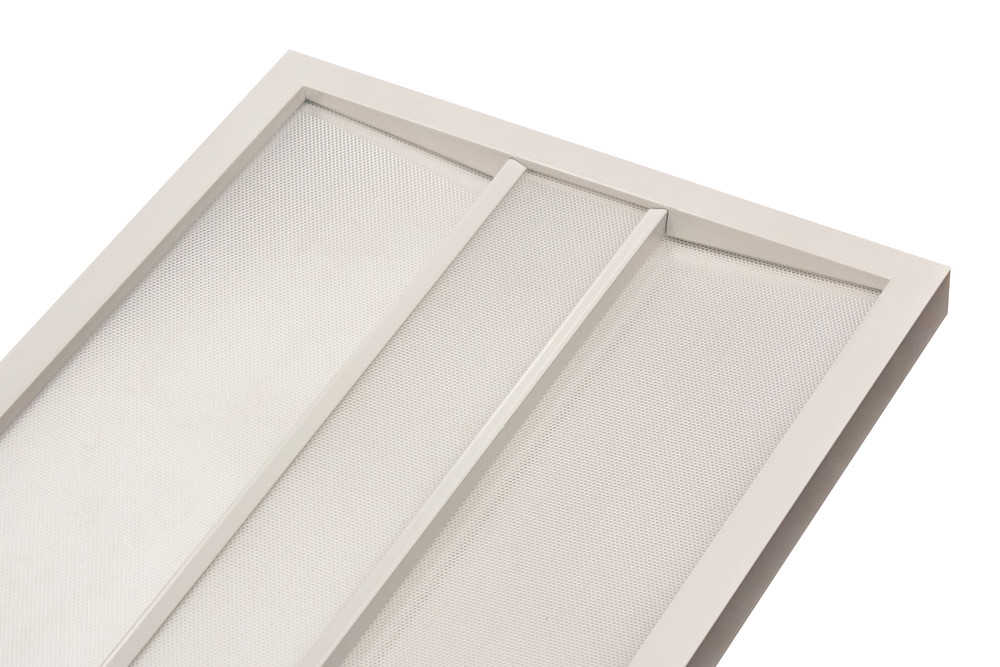

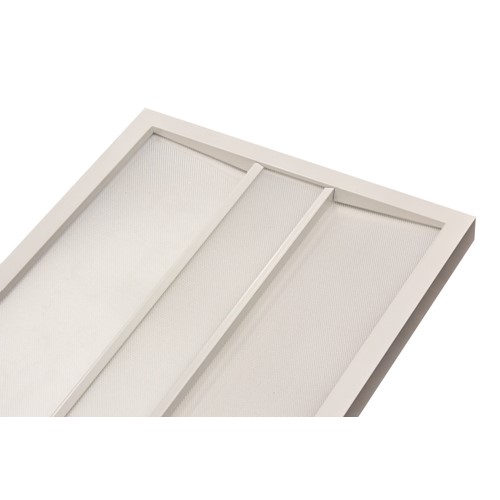

The prismatic TP(a) polycarbonate diffuser has been tested by a UK-based laboratory and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations.
Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
100lm/W
Product Feature 4:
UGR<19
Product Feature 5:
TP(a) rated diffuser
Product Feature 6:
5 Year Warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 516188
Barcode 5055788267355
Category Panels
Range Name Evo
Product Type 1200 x 300
Product Body Finish RAL9006
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Product Length (mm) 1195
Product Depth (mm) 45
Product Width (mm) 295
Product Weight (g) 2100
Optic TP(a) rated diffuser
Construction Aluminimum backplate and frame
Luminaire Fixing Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied)
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILP1230B006_EU_label
Luminous Flux in Lumens (lm) 3600
Luminous efficacy (lm/W) 100
Peak Intensity (Cd) 665
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 89
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Back-lit
Lifetime (hours) 35000
Lighting Method Back-lit
Switching Cycles 25000
Power Consumption (W) 36
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 86.4
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
TP rating TP(a)
Package Weight (g) 2500
Package Length (mm) 1240
Package Width (mm) 330
Package Depth (mm) 80
