HIGH PERFORMANCE+ PANEL 1200X300 IP44 3500LM 25W 4000K NON-DIMM 140LM/W BACKLIT INTEGRAL
Part Number:
ILP1230B001

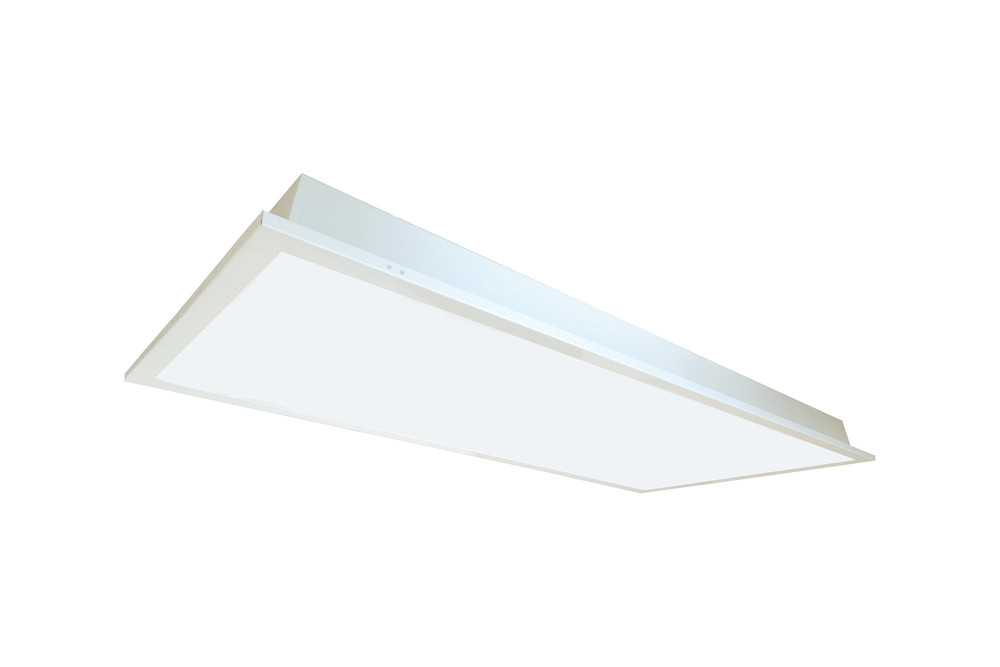

This 25W and 3500lm Integral LED Performance+ panel delivers a uniform white light across the whole of its surface. Its very high level of efficacy (140lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.
The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations.
Its lightweight steel and PC design means installation is simple and maintenance is minimal. It is an ideal solution for many applications: offices, meeting rooms, corridors, airports, schools/universities and retails environments.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 3500 Lumens
- Product Feature 3:
- 140lm/W
- Product Feature 4:
- TP(a) rated Polycarbonate diffuser
- Product Feature 5:
- 5 Year Warranty
- Availability:
-
3
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
Quick Order Code | 142542 |
---|---|
Barcode | 5055788228981 |
Category | Panels |
Range Name | High Performance+ |
Product Type | 1200 x 300 |
Product Body Finish | White steel |
Market Segment | Commercial indoor |
Warranty (Years) | 5 |
Physical Data
Product Length (mm) | 1196 |
---|---|
Product Depth (mm) | 85 |
Product Width (mm) | 296 |
Product Weight (g) | 3100 |
Optic | TP(a) rated Polycarbonate diffuser |
Material | Steel, Polycarbonate |
Construction | Folded Mild Steel and Polycarbonate diffuser |
Luminaire Fixing | Recessed in ceiling grid, surface mounted (with accessory) |
Panel Equivalent | The Luminaire is Class II |
Placement / Application | Indoor, General Lighting |
Light Data
Luminous Flux in Lumens (lm) | 3500 |
---|---|
Luminous efficacy (lm/W) | 140 |
Peak Intensity (Cd) | 1307 |
Correlated Colour Temperature (CCT) (K) | 4000 |
Colour Temperature | 4000K - Cool White |
Colour Temperature Name | Cool White |
Beam Angle | 110 |
Colour Rendering Index (CRI) | 80 |
Frequency Range (Hz) | 50/60 |
Instant on (Less than 1 second) | Yes |
LED Size (mm) | 2835 |
LED Type | Back-lit |
Lifetime (hours) | 50000 |
Lighting Method | Back-lit |
Switching Cycles | 25000 |
Electrical Data
Power (W) | 25 |
---|---|
Power Consumption (W) | 25 |
Power Factor | 0.9 |
Voltage Range (v) | 220-240 |
Wattage equivalent (W) | 86.4 |
Amperage (mA) | 105 |
Dimming | Non-Dimmable |
Driver Included | Integrated |
Electric Current | AC |
EN | EN-60598 |
LVD Certified | Yes |
Environmental
EN | EN-60598 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Hg 0% (Mercury Free) | Yes |
IP Rating (Back/Recessed side) | IP40 |
IP Rating (Ingress Protection) | IP44 |
Lowest Operating Temperature (°C) | -10 |
Maximum Operating Temperature (°C) | 40 |
TP rating | TP(a) |
Packaging
Package Weight (g) | 4200 |
---|---|
Package Length (mm) | 1250 |
Package Width (mm) | 650 |
Package Depth (mm) | 108 |
Qty per euro pallet | 25 |
