CONNECTOR TO 150MM WIRE 5PACK FOR 12MM IP20 COB HIGH UNIFORMITY RGB STRIPS
Part Number:
ILSTAA338

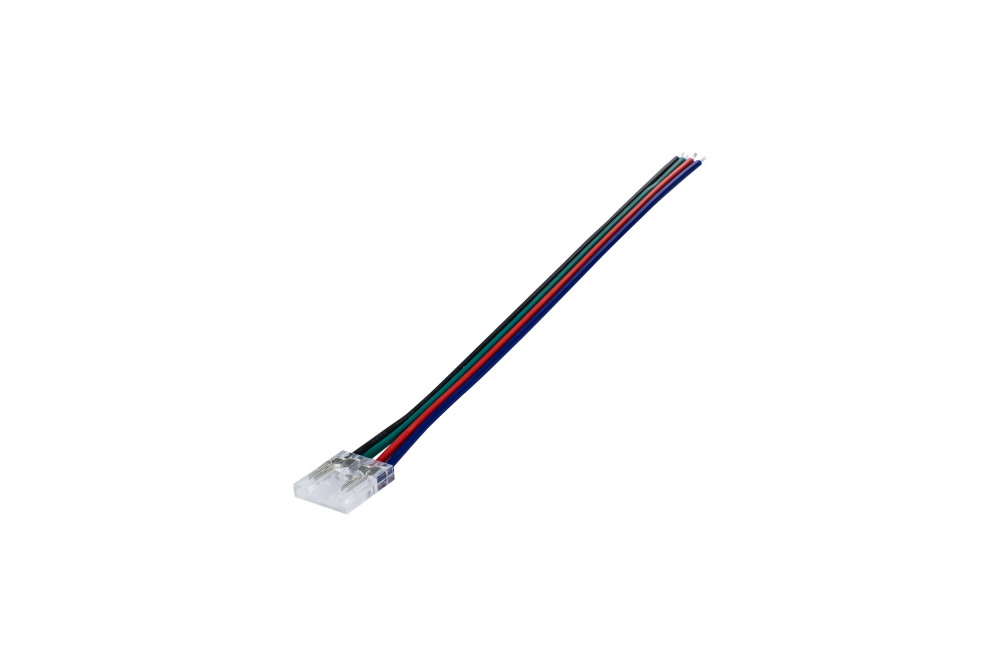

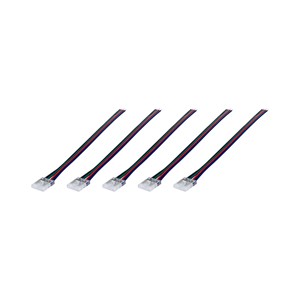

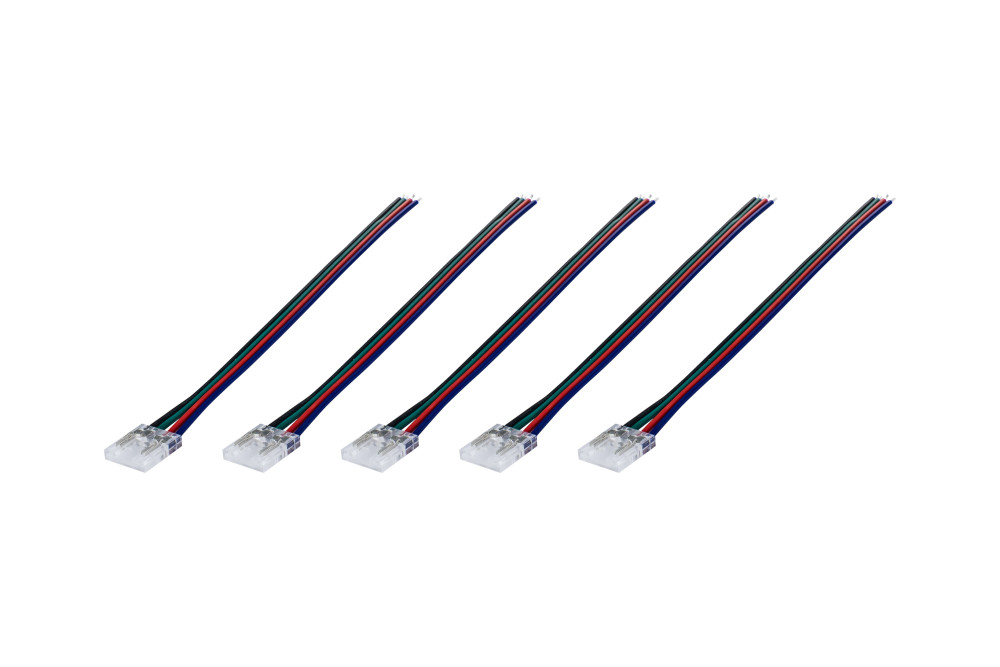

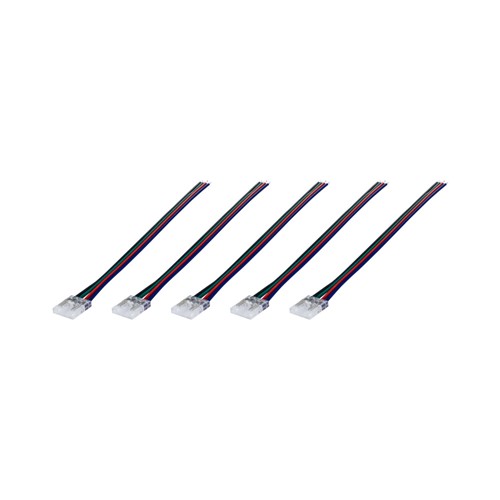

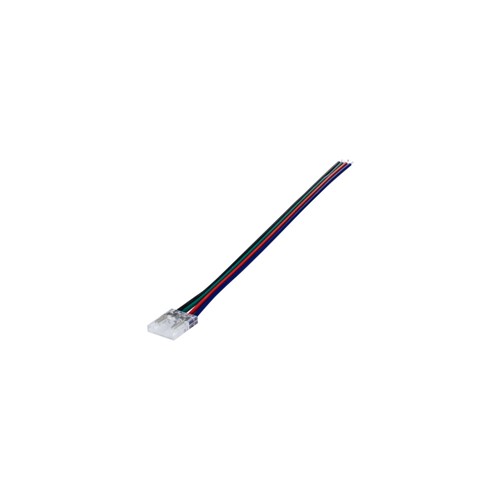

Connectors (5pcs) - Connector and 150mm wire for use with 12mm width IP20 RGB and RGB Digital High Uniformity LED Strips. Attach connector end to strip and wire end to a compatible 24VDC LED controller.
Maximum connected total power of LED strip per connector is 70W at 24V supply or 36W at 12V supply.
This connector can be only used once. It is not suitable for being crimped, released and re-crimped on the same section of the strip.
Not suitable for 48V supply.
- Availability:
-
29
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788279808 |
|---|---|
| Quick Order Code | 606743 |
| Range Name | Strip Accessories |
| Product Type | Accessories |
| Warranty (Years) | 1 |
Physical Data
| Product Length (mm) | 166 |
|---|---|
| Product Depth (mm) | 3.3 |
| Product Width (mm) | 13.5 |
| Placement / Application | Decorative indoor |
Light Data
Electrical Data
Environmental
Packaging
| Barcode | 5055788279808 |
|---|---|
| Package Weight (g) | 22 |
| Package Length (mm) | 200 |
| Package Width (mm) | 120 |
| Package Depth (mm) | 5 |
