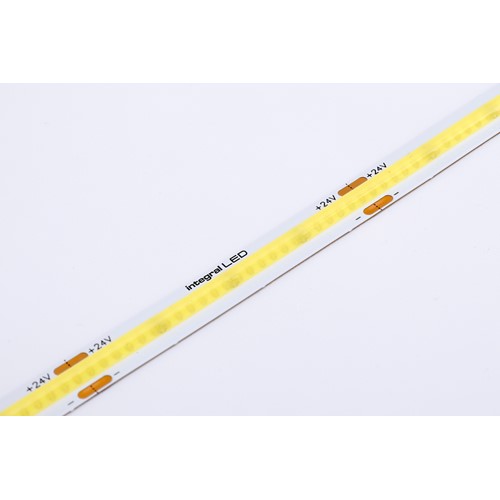

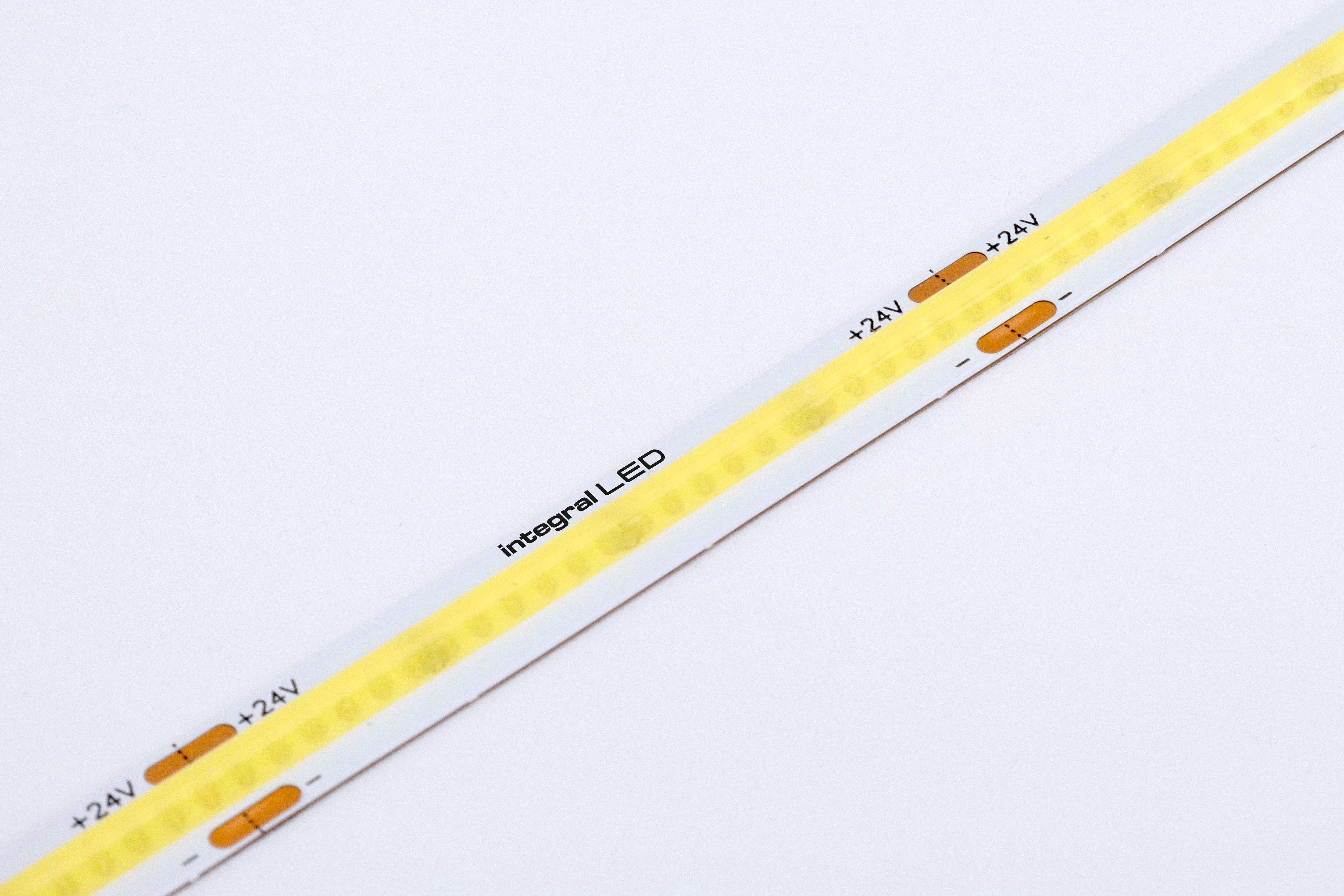

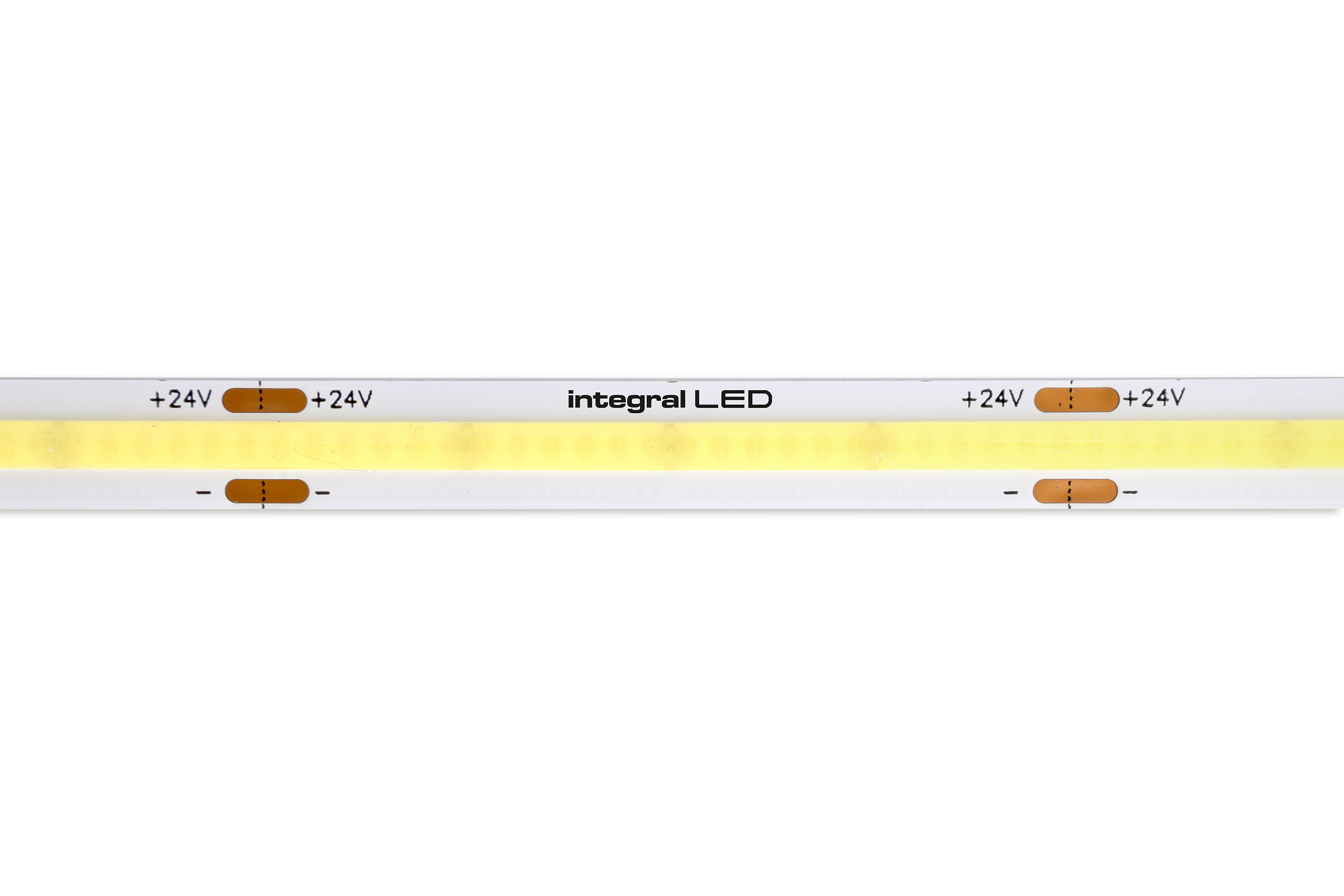

BRIGHT LIGHT PREMIUM IP20 3000K STRIP 8MM TAPE 50M REEL 24V 1456LM/M 14W/M COB HIGH UNIFORMITY SPOTLESS INTEGRAL
Part Number:
ILSTWHIA855E
Deliver maximum brightness to large indoor or outdoor areas for direct or indirect lighting applications. Ideal for bright open spaces including shopping centres, airport terminals, train stations and office/hotel lobbies. Warm white.
- Product Feature 1:
- Premium COB for complete uniformity
- Product Feature 2:
- Bright range for maximum output
- Product Feature 3:
- 14W per metre
- Product Feature 4:
- IP20
- Product Feature 5:
- 50m Pack
- Availability:
-
24
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5056884600848 |
|---|---|
| Quick Order Code | 017816 |
| Category | Strips |
| Range Name | Premium |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Bright Light |
| Warranty (Years) | 3 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Strip Cut Points (mm) | 45.5 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 104 |
|---|---|
| Lumens per meter (lm/m) | 1456 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 528 |
| Lifetime (hours) | 36000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 14 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884600848 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1640 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 05056884600855 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 470 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 450 |
| Qty per euro pallet | 120 |
Safety Guide
ILSTWHIA855E
