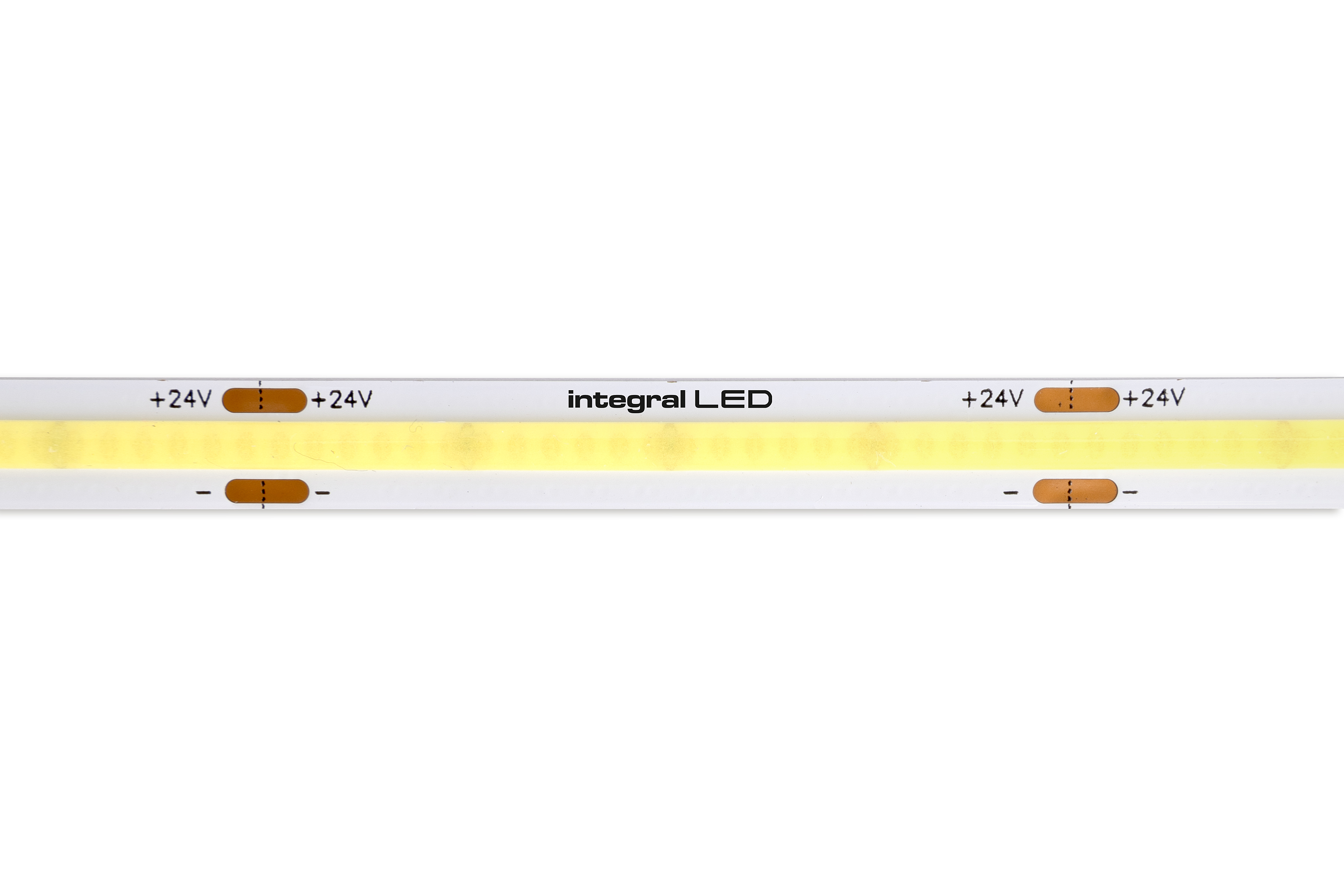

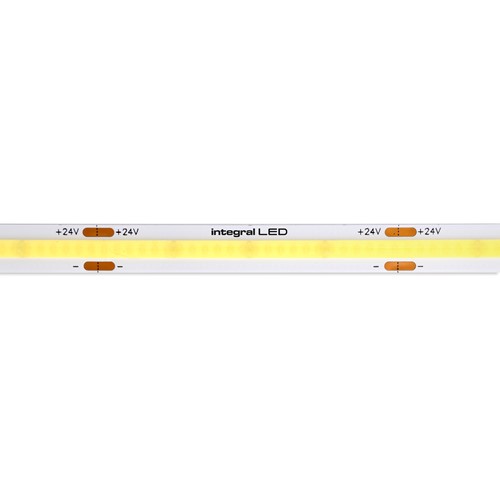

BRIGHT LIGHT PREMIUM IP20 4000K STRIP 10MM TAPE REEL PACK 24V 1512LM/M 14W/M COB HIGH UNIFORMITY SPOTLESS PER METRE INTEGRAL
Part Number:
ILSTWHIA860EM
Please order by the metre for each separate length you require.
Deliver maximum brightness to large indoor or outdoor areas for direct or indirect lighting applications. Ideal for bright open spaces including shopping centres, airport terminals, train stations and office/hotel lobbies. Bright white.
- Product Feature 1:
- Order up to 50m but note, the max run length is 5m
- Product Feature 2:
- Premium COB for complete uniformity
- Product Feature 3:
- Bright range for maximum output
- Product Feature 4:
- 14W per metre
- Product Feature 5:
- IP20
- Product Feature 6:
- 50m Pack
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5056884602750 |
|---|---|
| Quick Order Code | 553705 |
| Category | Strips |
| Range Name | Premium |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Bright Light |
| Warranty (Years) | 3 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Strip Cut Points (mm) | 45.5 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | Order by the metre |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 108 |
|---|---|
| Lumens per meter (lm/m) | 1512 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 528 |
| Lifetime (hours) | 36000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 14 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
