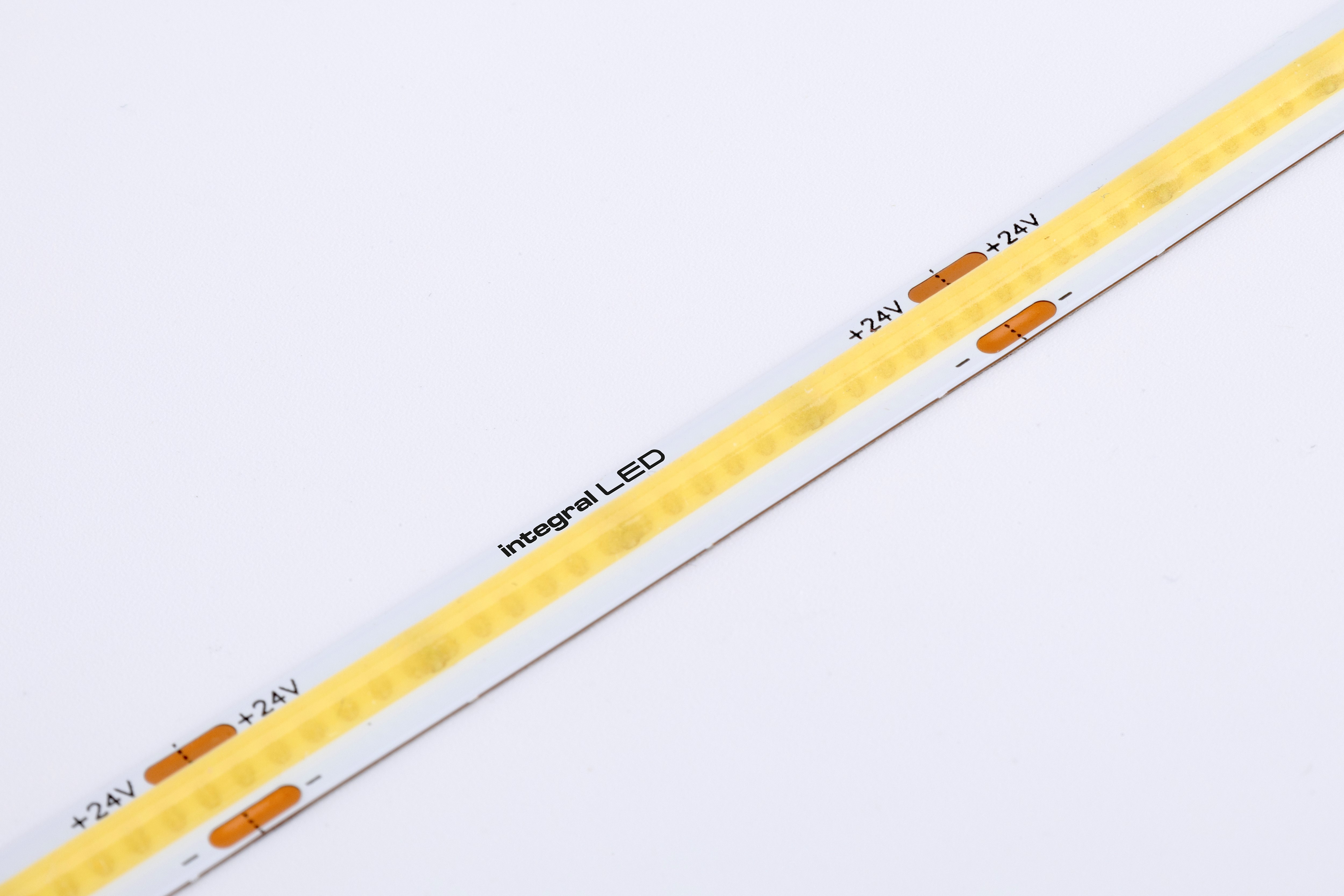

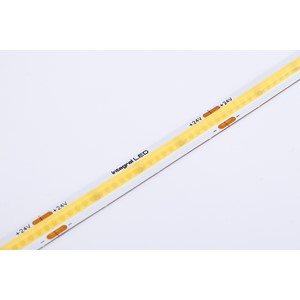

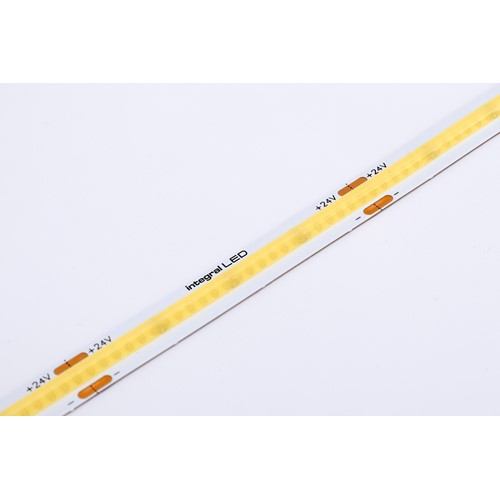

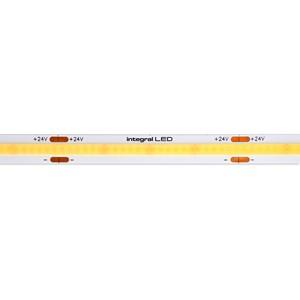

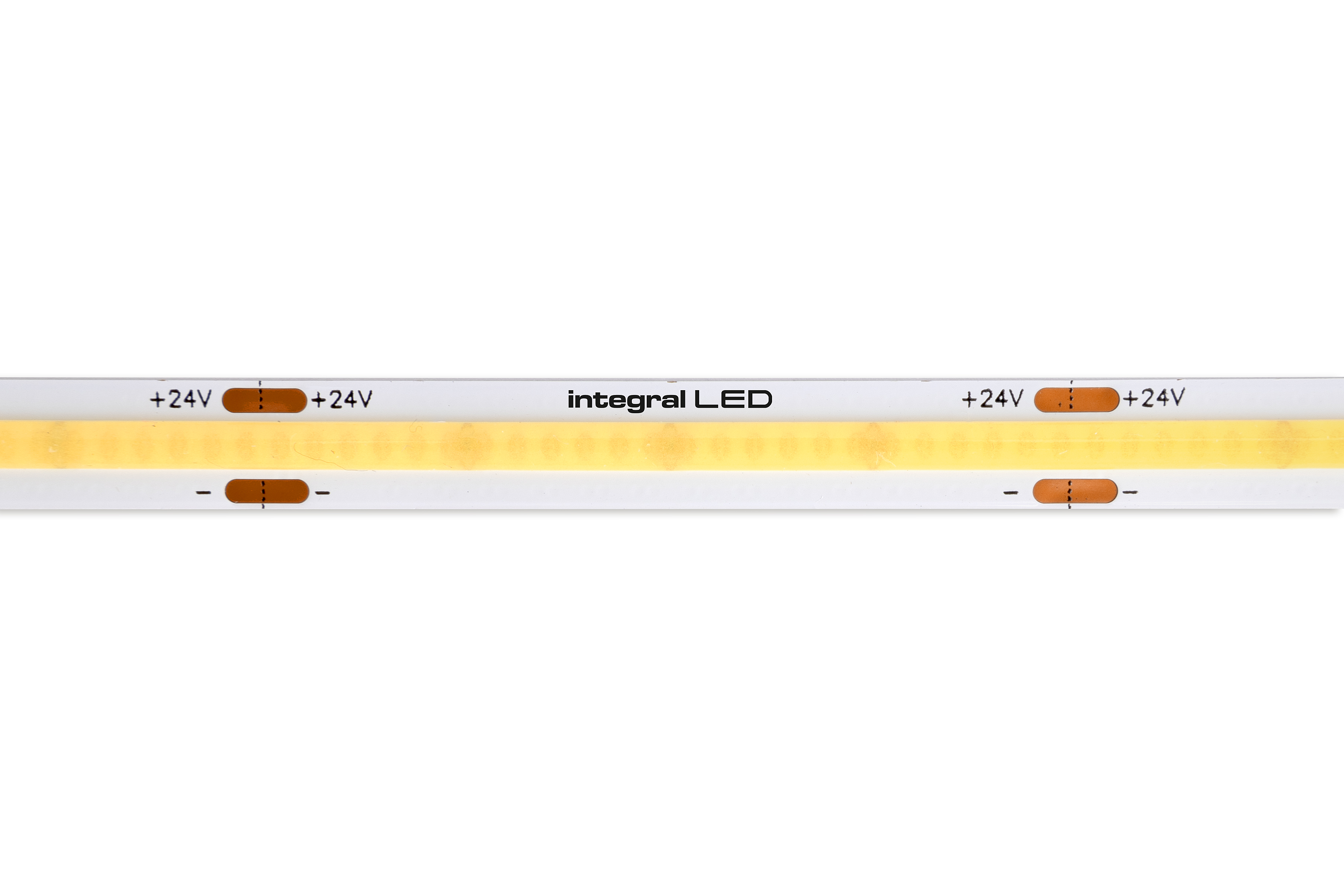

AMBIENT CCT TUNEABLE PREMIUM IP20 2700K-6500K STRIP 10MM TAPE 50M REEL 24V 648LM/M 7W/M SPOTLESS HIGH UNIFORMITY INTEGRAL
Part Number:
ILSTCCTA005E
Enhance spaces and well-being with an LED strip that supports daily rhythm cycles whilst delivering perfect ambient lighting. Customise interior environments from warm to cool for accent, general or indirect room lighting. Suitable for countertops, bars and wall panels.
- Product Feature 1:
- Premium COB for complete uniformity
- Product Feature 2:
- CTT Tuneable from 2700K to cool 6500K for circadian lighting
- Product Feature 3:
- 7W per metre
- Product Feature 4:
- IP20
- Product Feature 5:
- 50m Pack
- Availability:
-
29
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5056884600763 |
|---|---|
| Quick Order Code | 536752 |
| Category | Strips |
| Range Name | Premium |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Ambient Light |
| Warranty (Years) | 3 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Strip Cut Points (mm) | 26.3 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 90 |
|---|---|
| Lumens per meter (lm/m) | 648 |
| Correlated Colour Temperature (CCT) (K) | 2700 to 6500 (CCT Tuneable) |
| Colour Temperature Name | Warm to Cool Daylight (CCT Tuneable), Warm to Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 608 |
| Lifetime (hours) | 36000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 7 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 6.1w - 10w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884600763 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1640 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 05056884600770 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 470 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 450 |
| Qty per euro pallet | 120 |
