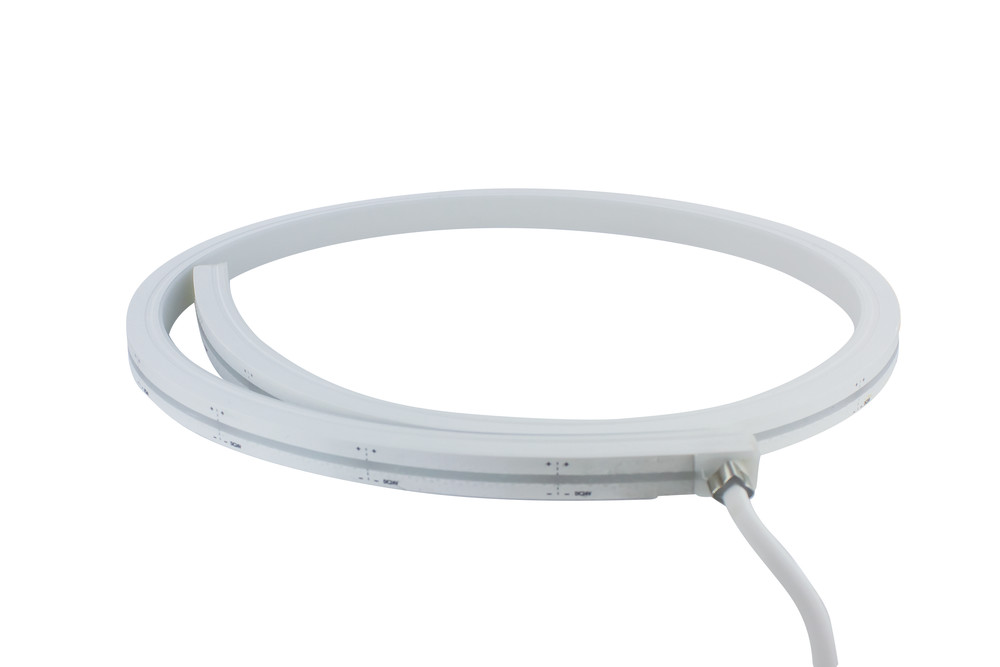

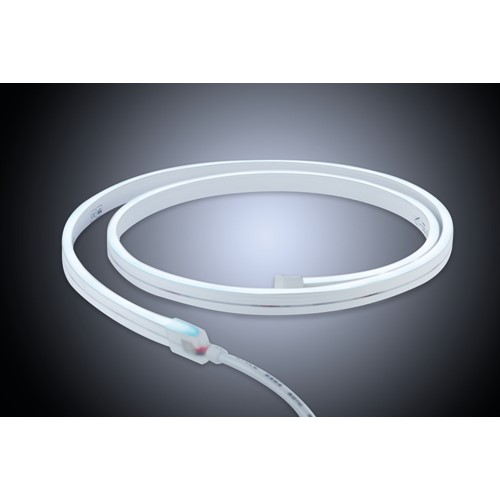

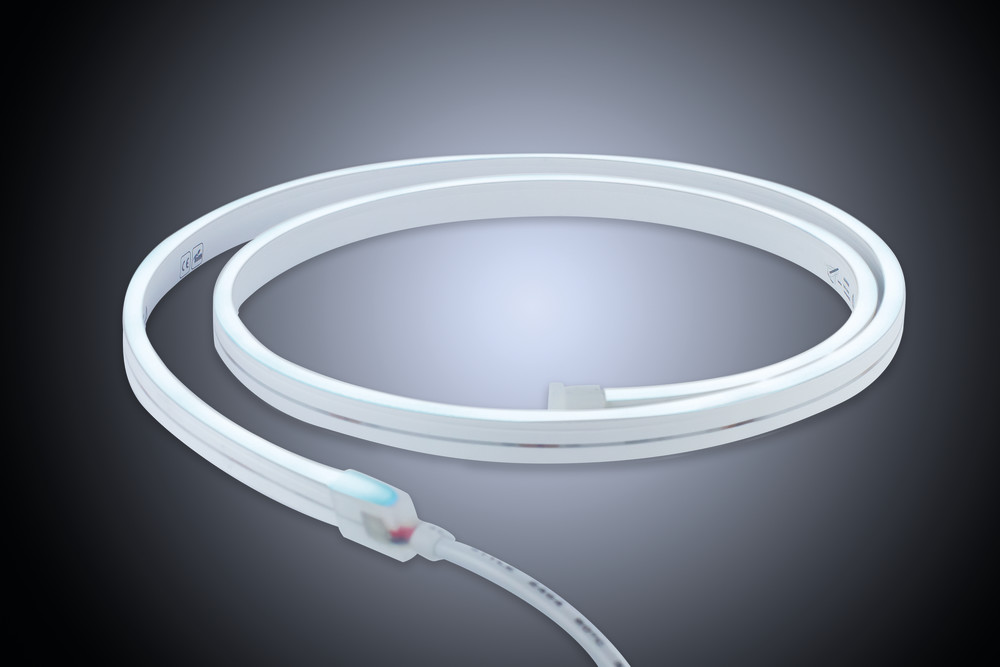

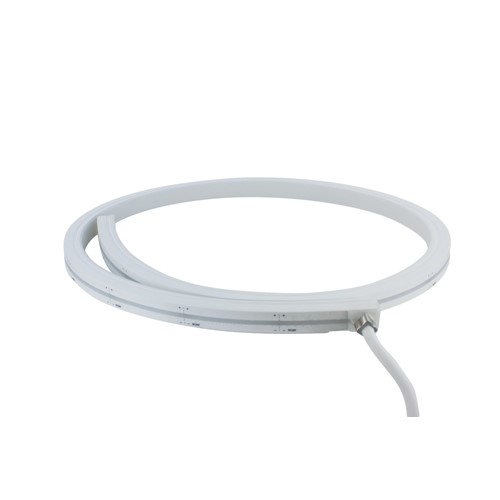

NEON STRIP THIN SIDE BEND IP67 5M 4000K 24V 7.2W/M 240LM/M 168LED/M 120 BEAM CRI90BAG PACK
Part Number:
ILSTWHIC178E
The IP67 Neon Flex strip offers high quality seamless and dot-free light output, ideal for customised neon lights for offices, retail, venues and domestic applications - even in humid indoor or outdoor environment. The silicone extrusion, along with full range of accessories, provides excellent flexibility, exquisite and unique appearance for every project.
- Product Feature 1:
- Thin Side bend
- Product Feature 2:
- Cool White
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 7.2W per metre
- Product Feature 5:
- IP67 for indoor and outdoor humid environment
- Product Feature 6:
- Totally spotless even when dimmed
- Product Feature 7:
- Mimics traditional Neon effect lighting
- Availability:
-
70
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788262169 |
|---|---|
| Quick Order Code | 242075 |
| Category | Strips |
| Range Name | Neon Flex |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor, Outdoor |
| Features | Neon |
| Warranty (Years) | 3 |
Physical Data
| Product Weight (g) | 290 |
|---|---|
| Material | PCB, Silicone |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 41.66 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor, outdoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 4 |
Light Data
| Lumens per meter (lm/m) | 240 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 168 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 7.2 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 6.1w - 10w |
| Dimming | Dimmable with dimmable drivers and compatible controllers |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788262169 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 340 |
| Package Length (mm) | 210 |
| Package Width (mm) | 210 |
| Package Depth (mm) | 21 |
| Outer Carton Barcode | 5055788262558 |
| Qty per Outer Carton | 30 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 290 |
Safety Guide
ILSTWHIC178E
