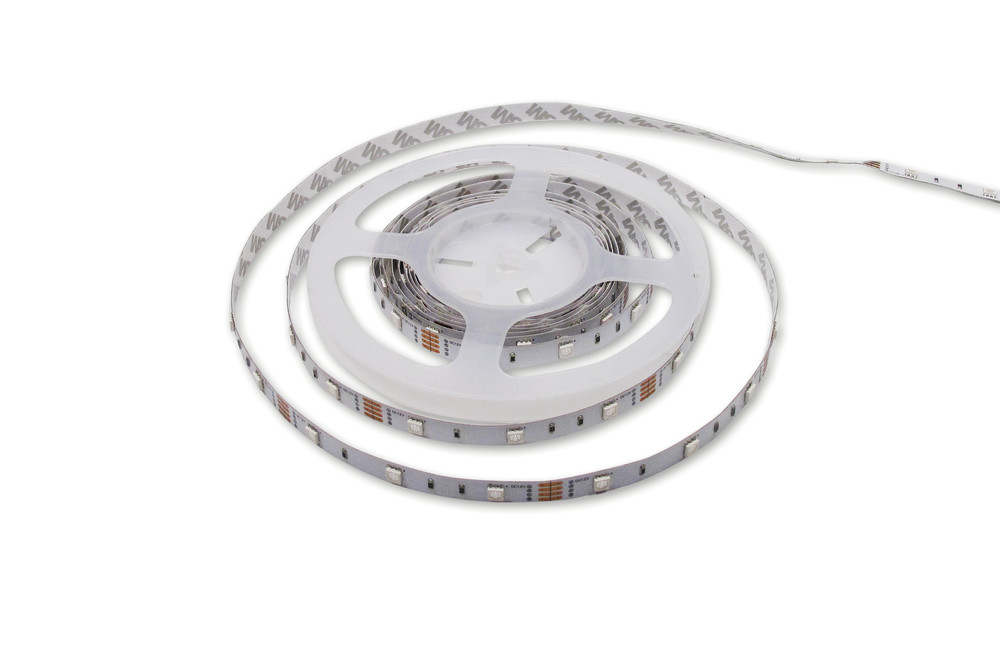

STRIP IP20 5M RGB 24V 4.8W/M 30LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBA119E

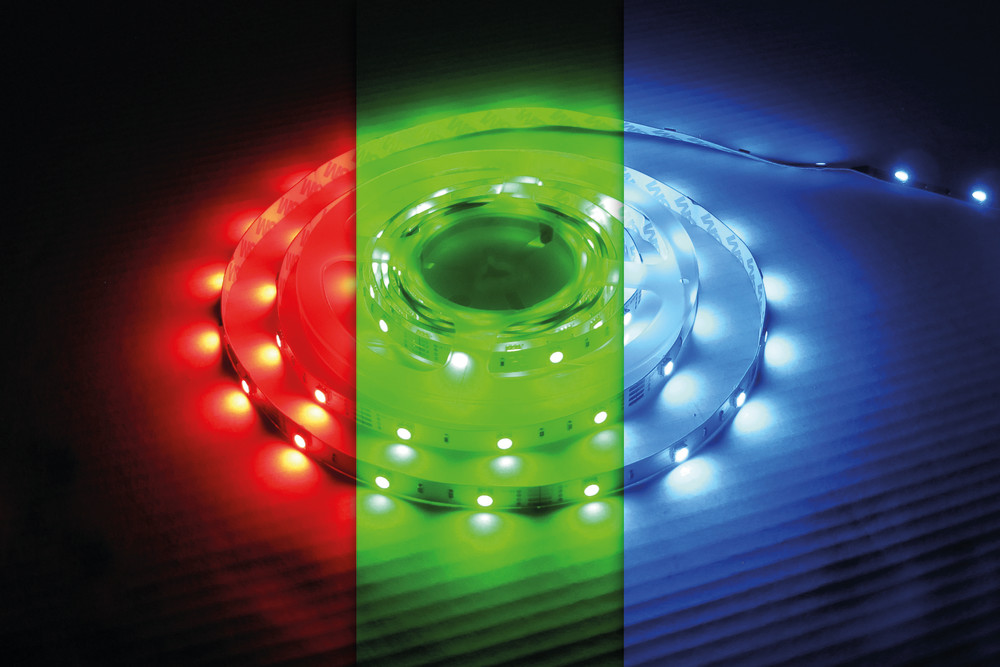

This 5M RGB LED strip is offers attractive, colour changing lighting with consistant light and colour across the whole strip.
This strip is compatible with our RGB 20M pack (ILSTRGBA115E).
- Product Feature 1:
- RGB Colour Changing
- Product Feature 2:
- Can run up to 20 metres from one driver
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 30 LEDs per metre
- Product Feature 5:
- 4.8W per metre
- Product Feature 6:
- LED size 50:50
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 798289 |
|---|---|
| Barcode | 5055788243229 |
| Category | Strips |
| Range Name | RGB Strip |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 12 |
|---|---|
| Product Weight (g) | 100 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 166 |
| Max Run Length (m) | 20 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 12 |
Light Data
| Colour Temperature Name | RGB |
|---|---|
| Beam Angle | 115 |
| Colour Type | RGB |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 30 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 4.8 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 120 |
|---|---|
| Package Length (mm) | 240 |
| Package Width (mm) | 210 |
| Package Depth (mm) | 12 |
