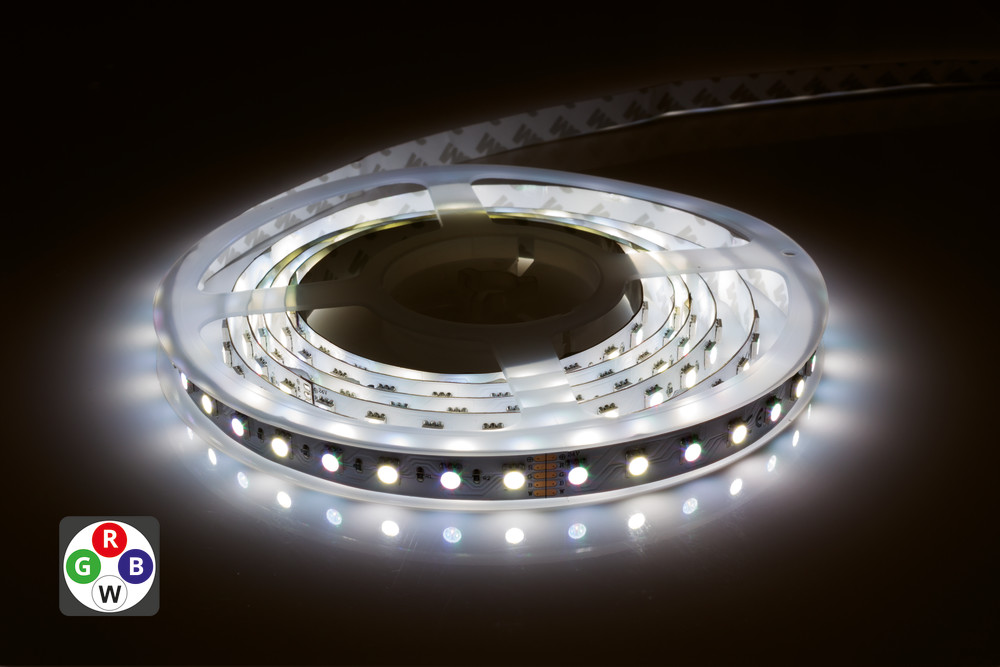

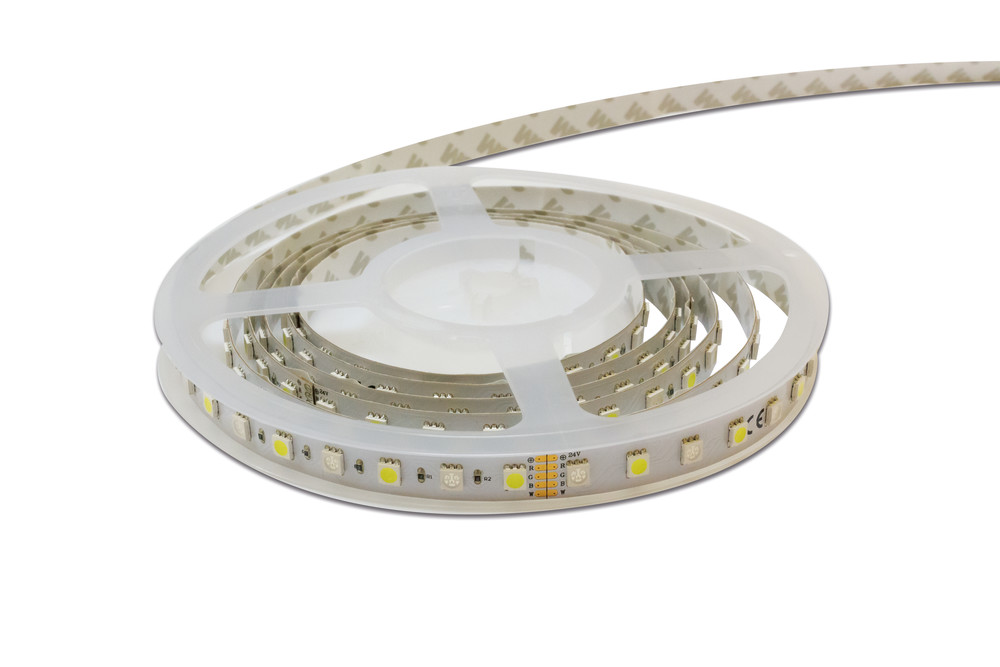

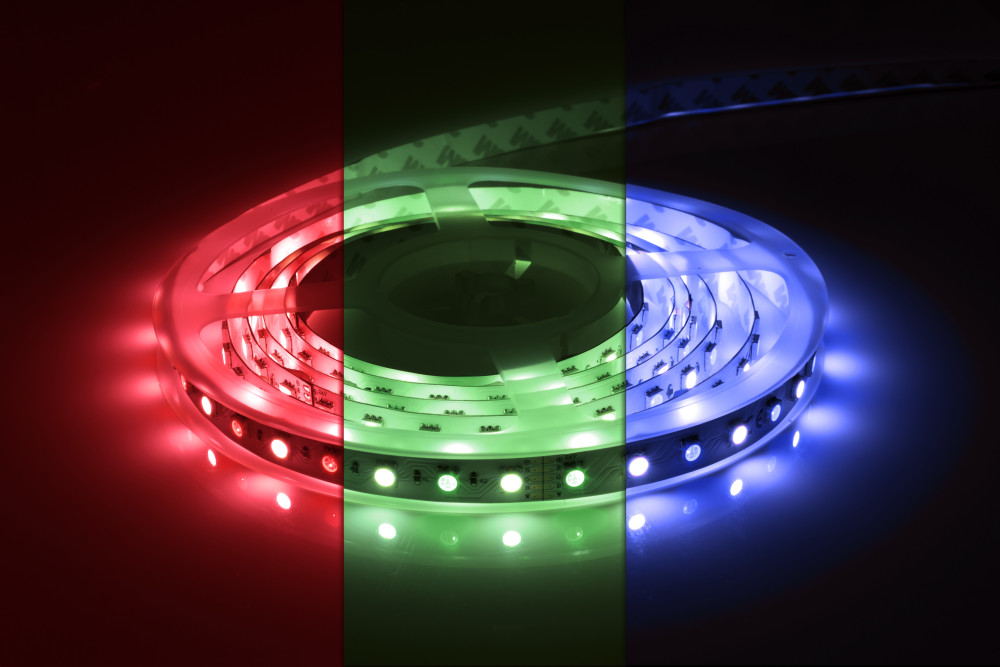

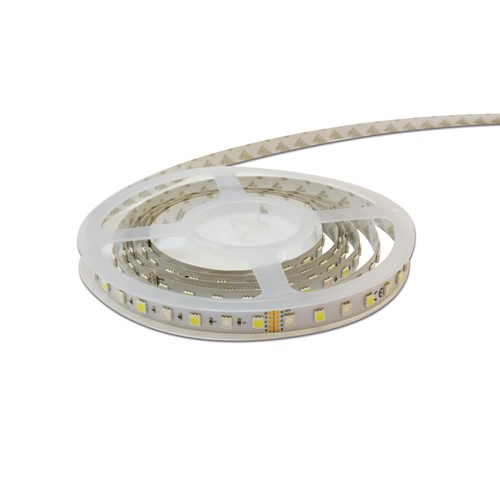

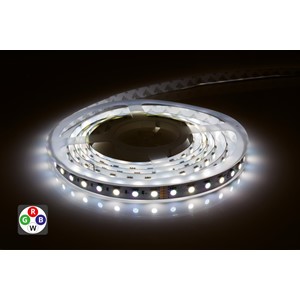

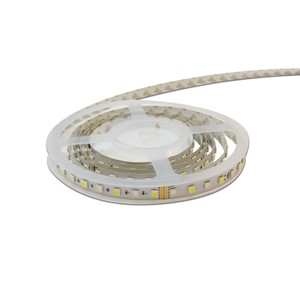

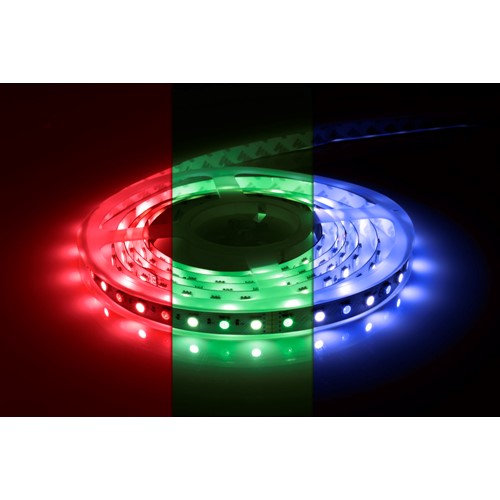

STRIP IP33 5M RGB+W 7000K 24V 12W/M 72LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBWA042E
These RGBW Colour Changing LED strips are ideal for creating flexible accent lighting in a range of domestic and commercial applications. Change the colour to match your mood and enjoy consistent lumen output and colour across the entire strip.
- Product Feature 1:
- RGB+W Colour Changing
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 72 LEDs per metre
- Product Feature 4:
- 12W per metre
- Product Feature 5:
- LED size 50:50
- Availability:
-
43
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 618992 |
|---|---|
| Barcode | 5055788216551 |
| Category | Strips |
| Range Name | RGBW Strip |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | RGB + White |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 12 |
|---|---|
| Product Weight (g) | 160 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 166 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 12 |
Light Data
| Colour Temperature Name | RGB+W |
|---|---|
| Beam Angle | 115 |
| Colour Type | RGB+W |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 72 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 12 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 165 |
|---|---|
| Package Length (mm) | 190 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 16 |
