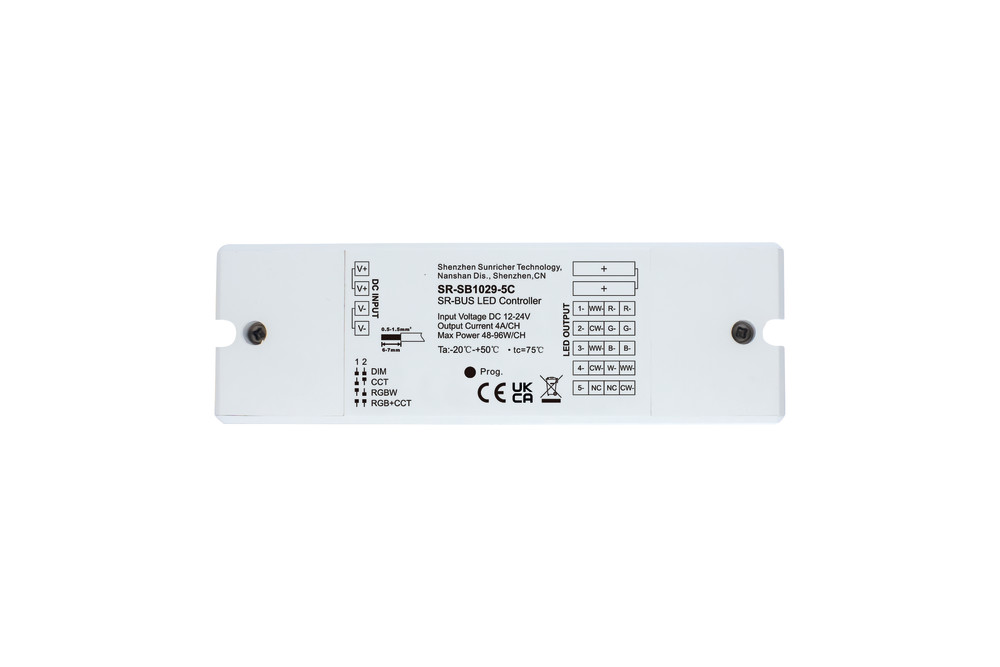

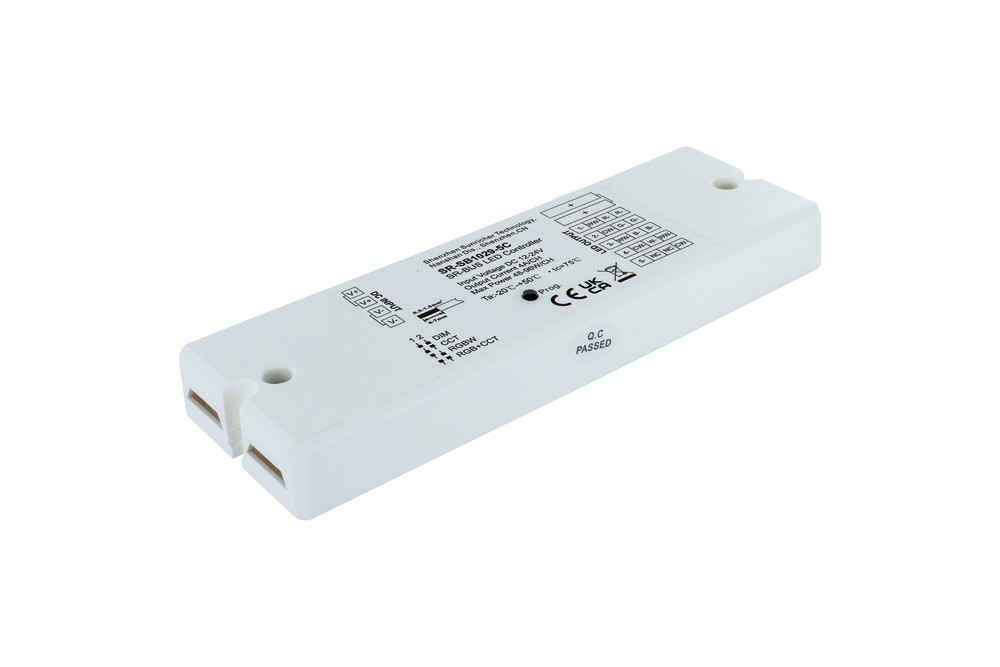

BLE & RF UNIVERSAL RECEIVER APP CONTROLLED 12-24V CONSTANT VOLTAGE 240W(12V) AND 480W(24V)
Part Number:
ILRC029
This Bluetooth and RF receiver will pair your LED strip with the intuitive EasyThings app on smartphone or tablet and also the optional wall-mounted and handheld universal RF remote controls from Integral LED, giving you precise control of any Integral strip (except digital).
- Product Feature 1:
- Blueooth receiver. Mesh technology allows extended wireless device linking
- Product Feature 2:
- Suitable for controlling entire range of strips (except digital) using phone app
- Product Feature 3:
- Input: DC12V-24V
- Product Feature 4:
- Works with ILRC030 - ILRC031- EasyThings app available on Google Play and Apple Store
- Product Feature 5:
- Out Current: 20A (4Ax5CH)
- Product Feature 6:
- Output Power: 240W (12V) / 480W (24V)
- Product Feature 7:
- Compatible with Alexa/Google Home
- Availability:
-
74
More stock due in on 30/10/2025
Suggested products
Details
| Barcode | 5055788256793 |
|---|---|
| Quick Order Code | 506859 |
| Category | Strips |
| Range Name | Strip Controllers |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 80 |
|---|---|
| Material | PCB, Plastic Shell |
Light Data
Electrical Data
| Voltage Range (v) | 12-24 |
|---|---|
| Driver Included | No |
| Electric Current | DC |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 75 |
Packaging
| Barcode | 5055788256793 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 90 |
| Package Length (mm) | 147 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 25 |
| Outer Carton Barcode | 5055788260608 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 380 |
| Outer Carton Width (mm) | 280 |
| Outer Carton Depth (mm) | 270 |
