RF RECEIVER AND REMOTE TOUCH AND BUTTON RGBW 12-24V CONSTANT VOLTAGE 240W(12V) AND 480W(24V) INTEGRAL

Part Number:

ILRC010

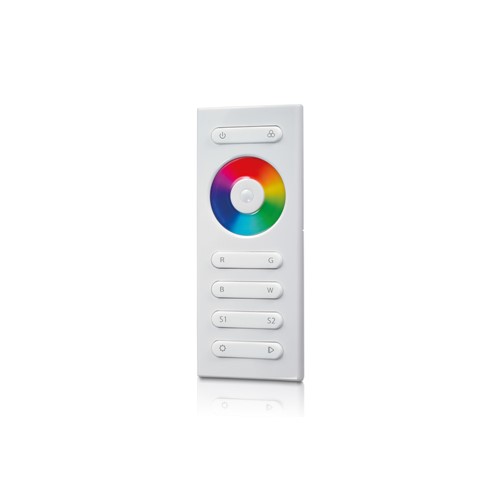

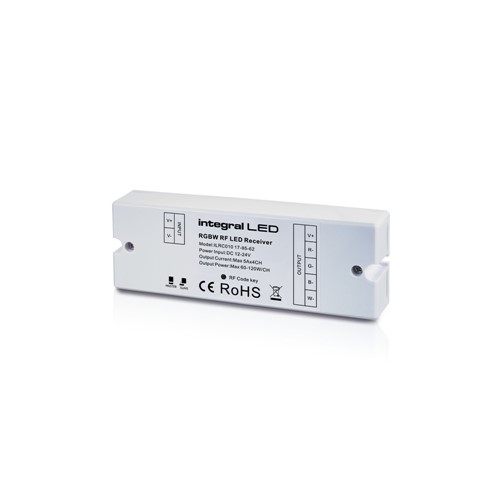

This RGBW colour RF (Radio Frequency) receiver and touch/button remote control can be used with Integral RGBW colour changing strips. With the RGBW colour changing remote control, you can easily change the strip colour by choosing the colour area on the central touch circle or pressing the mode button for 10 colour modes, control the brightness and change the speed when choosing the dynamic light mode. You can also control the RGB chip and White chip individually by pressing the R, G, B and White buttons to create your colour preference.

An easy-to-follow installation and operating guide can be downloaded from our website. 3 x AAA batteries (not included) are required for remote.

Product Feature 1:
Suitable for controlling RGBW colour changing strip
Product Feature 2:
Max 30M Remote Distance
Product Feature 3:
DC12-24V Power Input
Product Feature 4:
5A x 4 channels Max 20A Current Load
Product Feature 5:
240W (12V) / 480W (24V) Power Output
Availability:
100+

More stock due in on 14/02/2022

Suggested products

Barcode 5055788229568
Category Strips
Range Name RGBW
Product Type Controllers for strips
Material PCB, Plastic Shell
Handheld or Wall Mount Handheld
Zones 1
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-60950-1
LVD Certified Yes
EN EN-60950-1
LVD Certified Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 40
Package Weight (g) 185
Package Length (mm) 150
Package Width (mm) 50
Package Depth (mm) 40

Product Specification Sheet

Installation Guides
