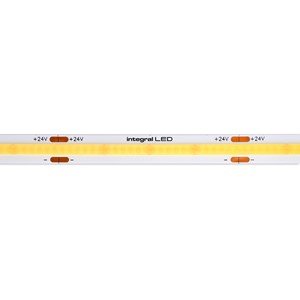

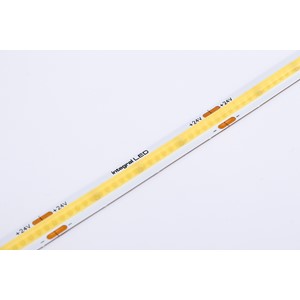

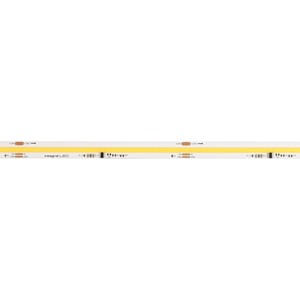

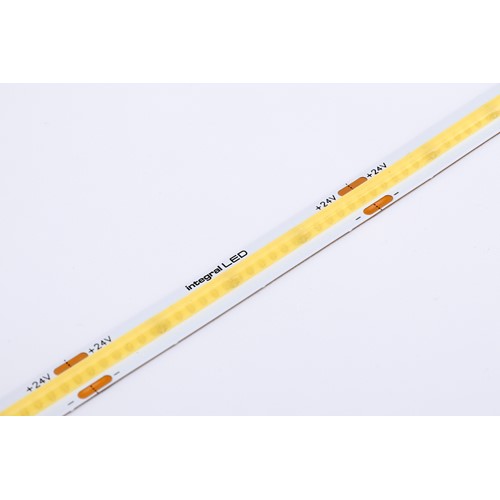

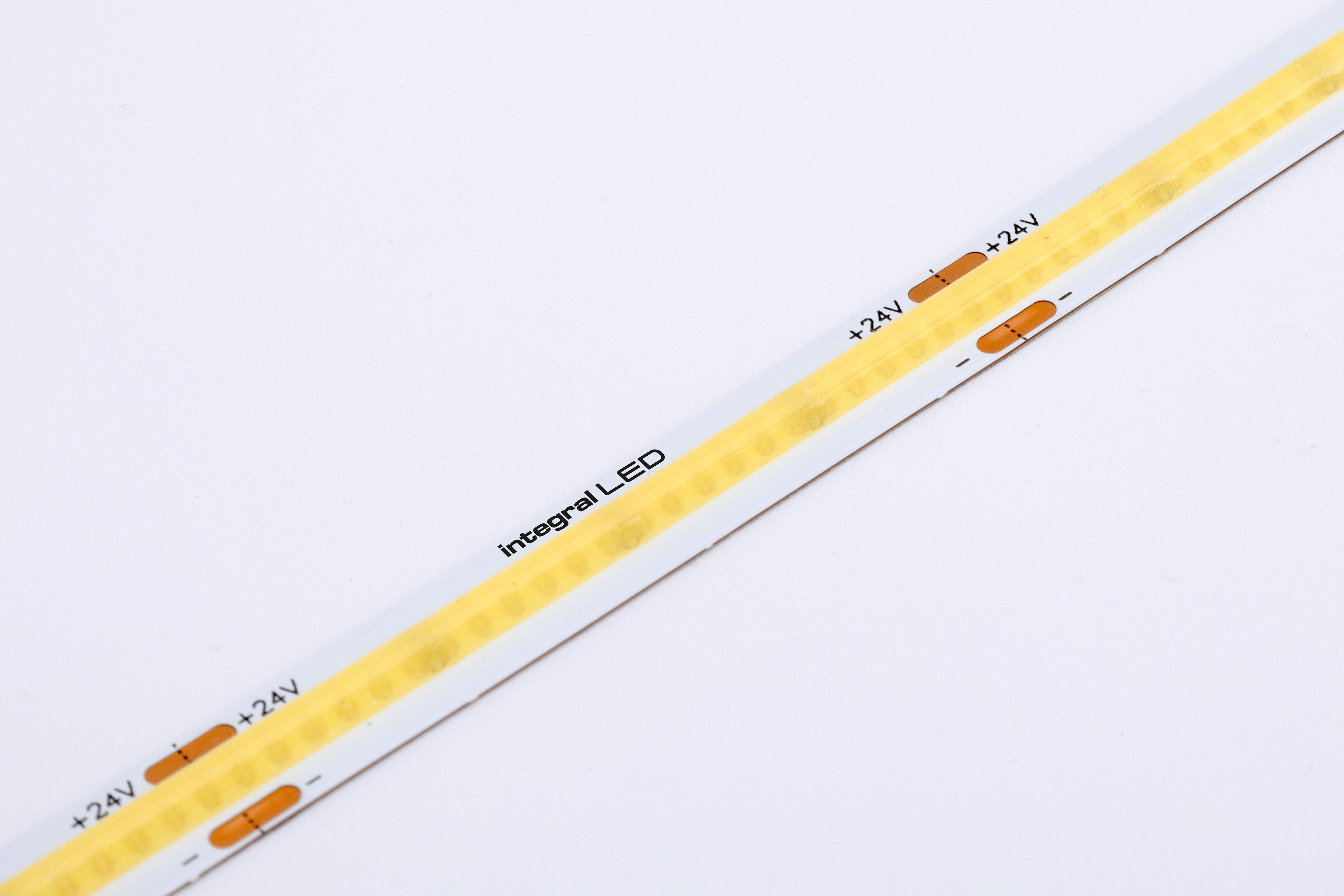

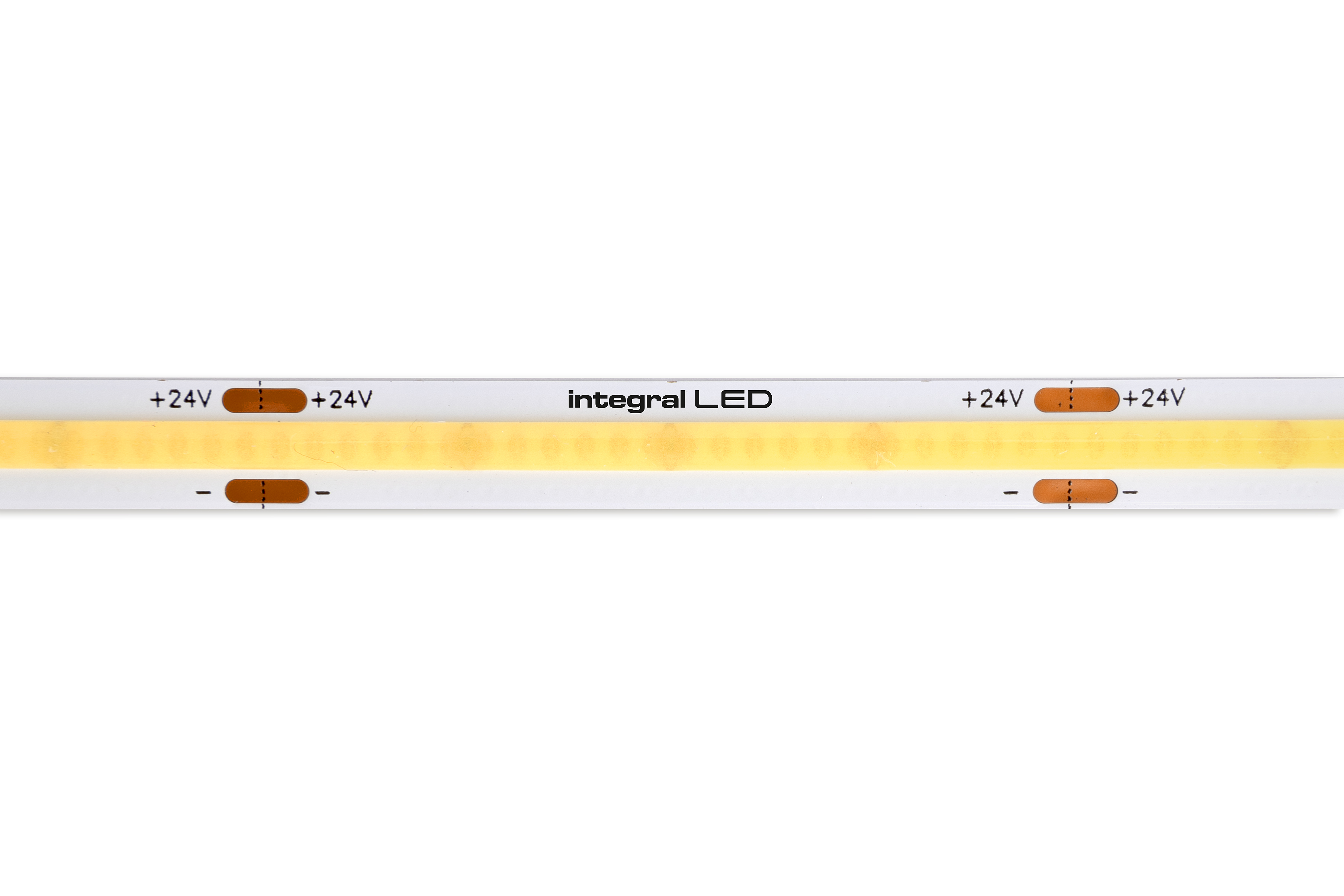

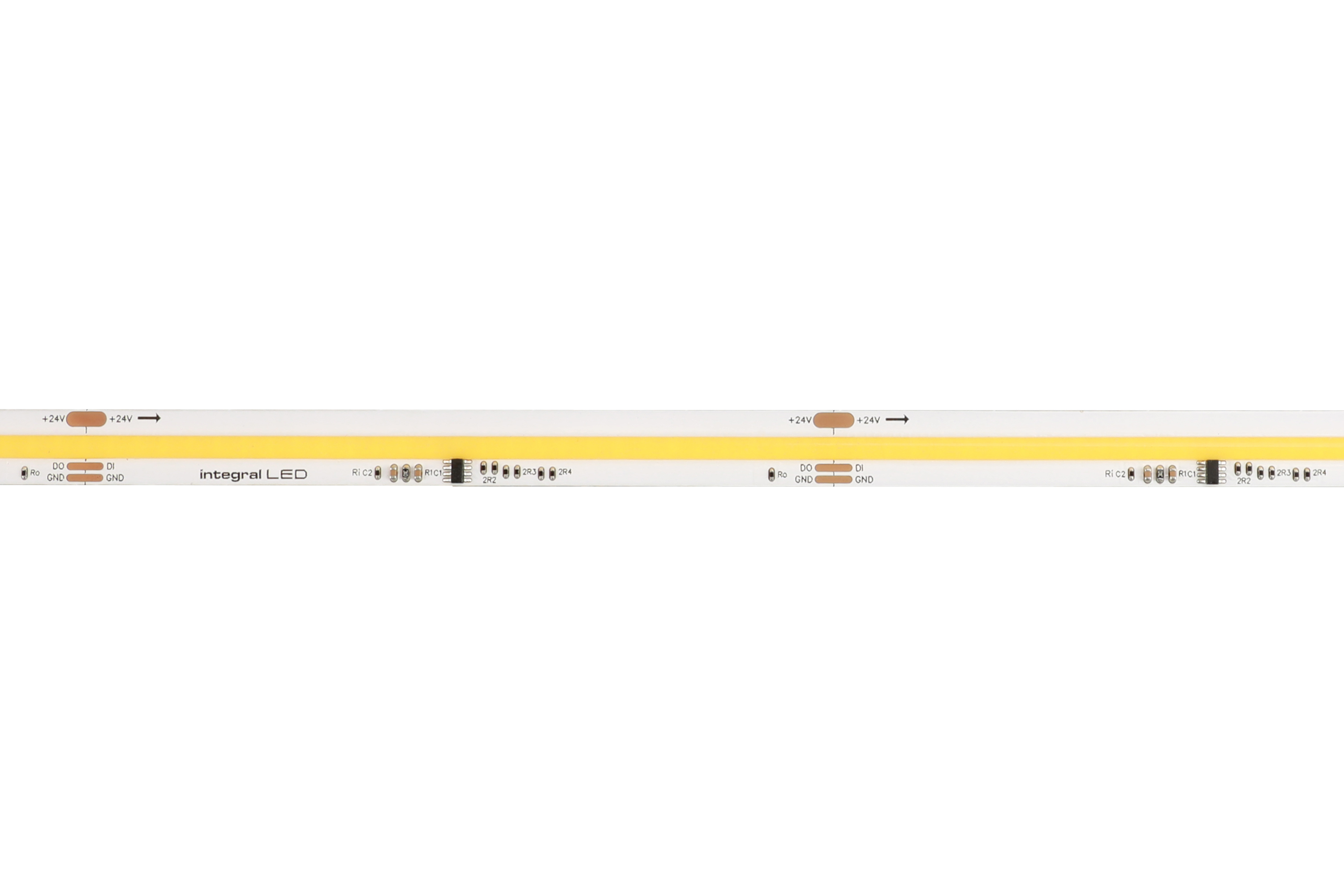

WHITE DIGITAL CHASING PREMIUM COB IP20 4000K STRIP 10MM TAPE 30M REEL 24V 816LM/M 9W/M SPOTLESS HIGH UNIFORMITY INTEGRAL
Part Number:
ILSTDWHA024E
Enjoy flowing light sequences, patterns and custom animations. This LED strip ensures consistent light and colour across the entire length of the strip. The classic white light helps create a dynamic effect and a luxurious interior environment ideal for hospitality, retail or feature installations.
- Product Feature 1:
- Premium COB for complete uniformity
- Product Feature 2:
- White Digital Chasing to combine dynamic movement and patterns
- Product Feature 3:
- 9W per metre
- Product Feature 4:
- IP20
- Product Feature 5:
- 30m Pack
- Availability:
-
13
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5056884600725 |
|---|---|
| Quick Order Code | 703019 |
| Category | Strips |
| Range Name | Premium |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Strip Cut Points (mm) | 100 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 30 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 85 |
|---|---|
| Lumens per meter (lm/m) | 816 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White Digital Chasing |
| LED Size (mm) | 3050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 840 |
| Lifetime (hours) | 36000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 9 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 6.1w - 10w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884600725 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1010 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 05056884600732 |
| Qty per Outer Carton | 14 |
| Outer Carton Length (mm) | 470 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 450 |
| Qty per euro pallet | 168 |
Safety Guide
ILSTDWHA024E
