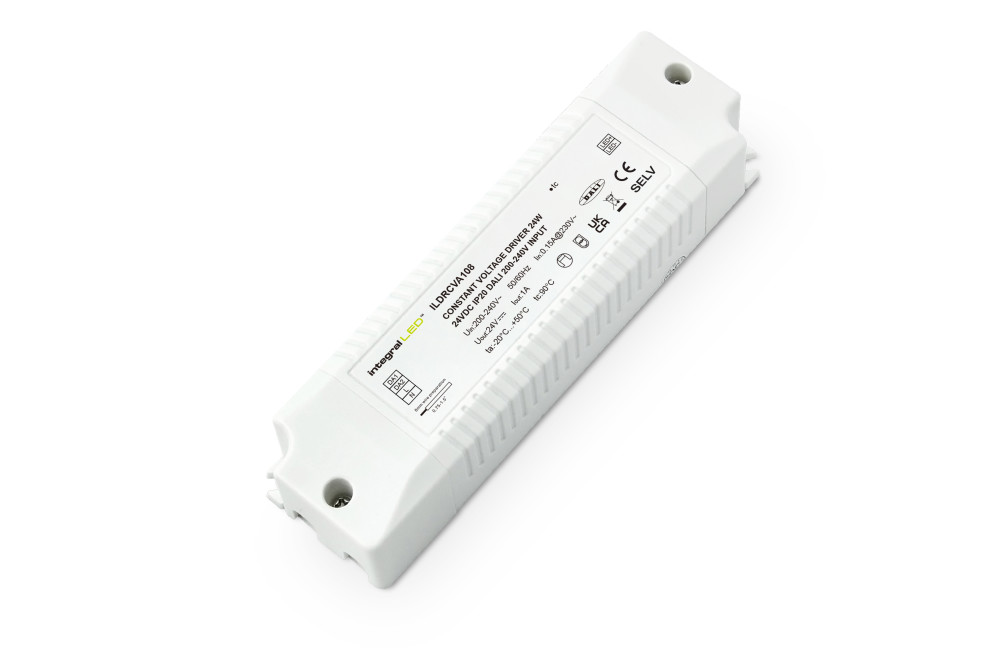

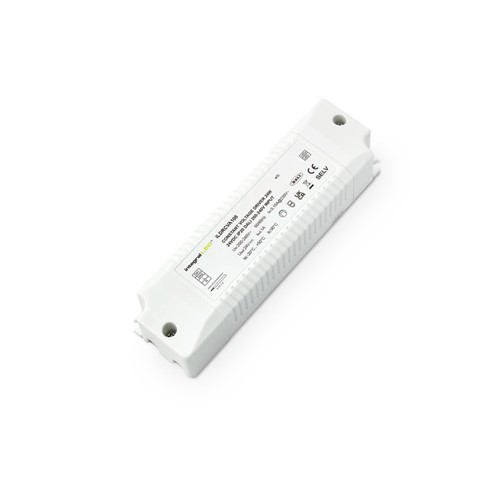

CONSTANT VOLTAGE DRIVER 24W 24VDC IP20 DALI 200-240V INPUT INTEGRAL
Part Number:
ILDRCVA108
This 24W 24V DC constant voltage driver is designed for seamless integration with DALI lighting control systems, offering precise and efficient dimming. With a 220-240V input, it ensures a stable power supply for LED strips and low-voltage lighting applications. Its IP20 rating makes it suitable for indoor use, while its compact and durable design ensures reliable performance in both residential and commercial installations. Perfect for smart lighting setups, this driver delivers smooth, flicker-free dimming with advanced control capabilities.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output Power: 24W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
27
More stock due in on 06/04/2026
Suggested products
Details
| Barcode | 5055788309062 |
|---|---|
| Quick Order Code | 254902 |
| Category | Drivers |
| Range Name | DALI |
| Product Type | Constant Voltage |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 150 |
|---|---|
| Product Depth (mm) | 29 |
| Product Width (mm) | 43 |
| Product Weight (g) | 150 |
| Placement / Application | Indoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 24 |
|---|---|
| Power Consumption (W) | 24 |
| Power Factor | 0.95 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 10000 |
| Input Current (A) | 0.15 |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | 10000 |
| Output Voltage (V) | 24 |
| Dimming | DALI |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 75 |
Packaging
| Barcode | 5055788309062 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 20 |
| Package Length (mm) | 160 |
| Package Width (mm) | 53 |
| Package Depth (mm) | 39 |
| Outer Carton Barcode | 05055788309260 |
| Qty per Outer Carton | 50 |
| Outer Carton Length (mm) | 370 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 180 |
Safety Guide
