CONSTANT VOLTAGE DRIVER 15W 12VDC IP20 NON-DIMM 200-240V INPUT INTEGRAL
Part Number:
ILDRCVA085

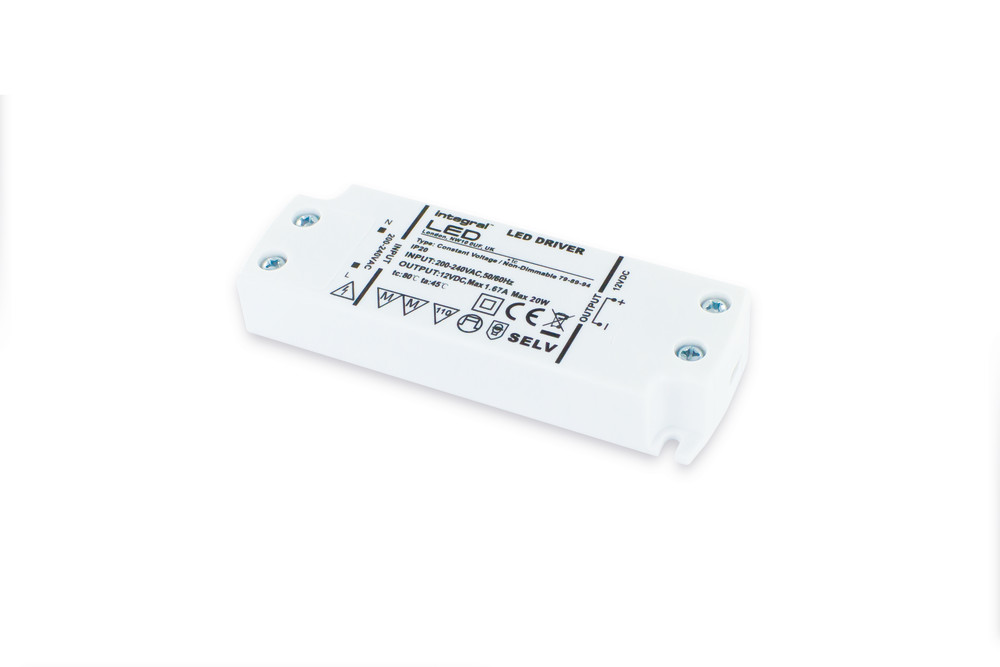

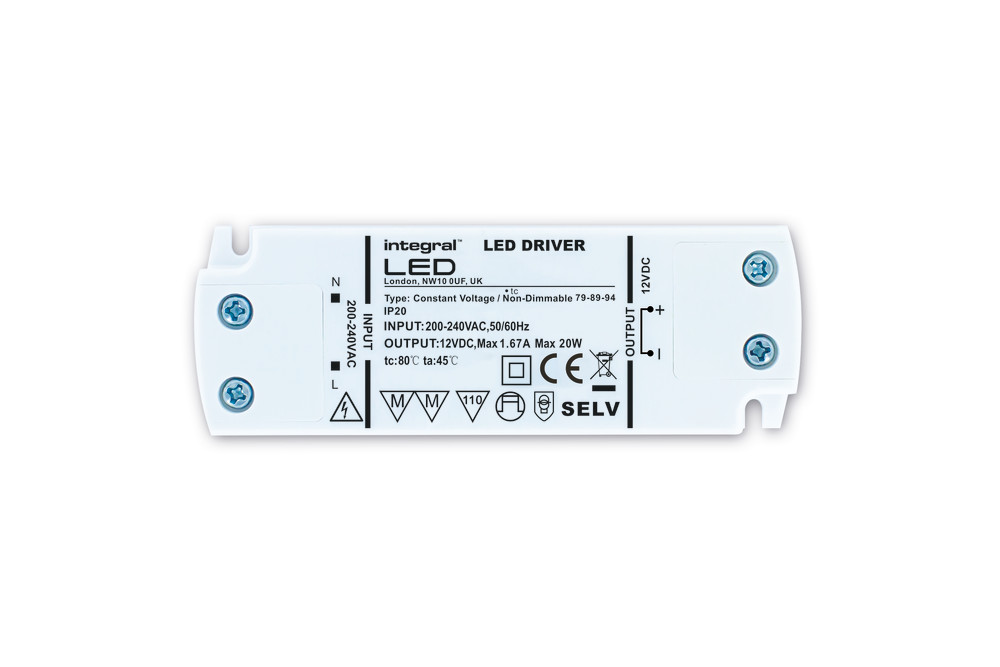

The Integral 15W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and up to 1.25A of output current for a 15W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 82% and are fully compatible with 12V constant voltage LED lighting systems. The LED driver features an ultra slim, IP20 rated casing that helps to provide an easy installation and smart finish, ideal for indoor use. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 15W
- Product Feature 3:
- Output: 12VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788256687 |
|---|---|
| Quick Order Code | 823528 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 103 |
|---|---|
| Product Width (mm) | 35.5 |
| Product Weight (g) | 16 |
| Material | Plastic Shell |
| Placement / Application | Indoor |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Consumption (W) | 15 |
|---|---|
| Power Factor | ≥0.5 |
| Voltage (V) | 12 |
| Input Current (A) | <0.23 |
| Input Voltage (V) | 200-240VAC |
| Output Current (mA) | 0-1.25 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788256687 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 67.5 |
| Package Length (mm) | 108 |
| Package Width (mm) | 38 |
| Package Depth (mm) | 21 |
| Outer Carton Barcode | 5055788256830 |
| Qty per Outer Carton | 200 |
| Outer Carton Length (mm) | 385 |
| Outer Carton Width (mm) | 216 |
| Outer Carton Depth (mm) | 215 |
