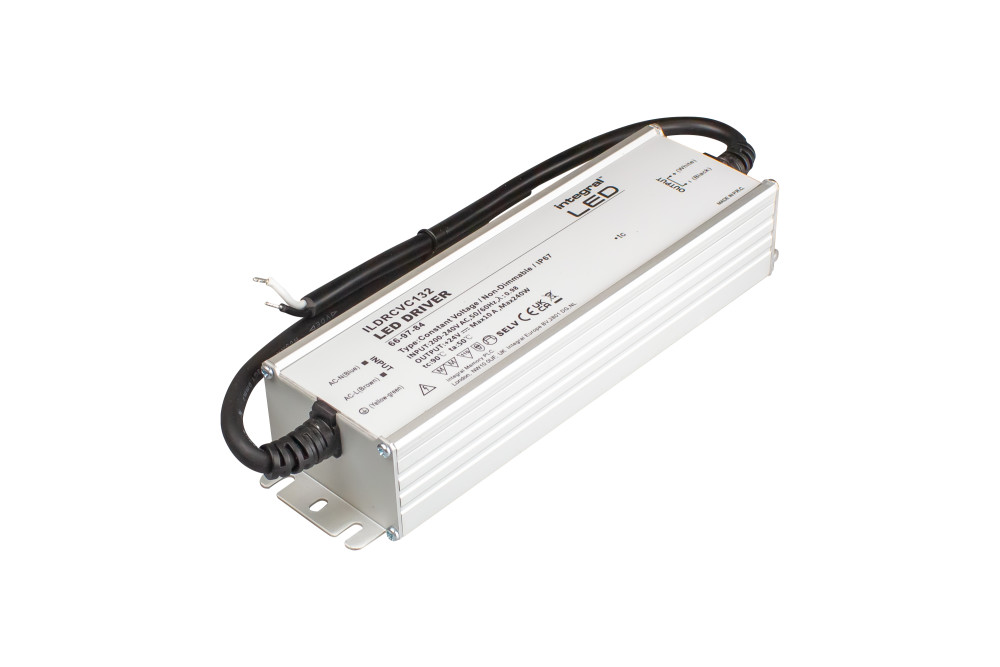

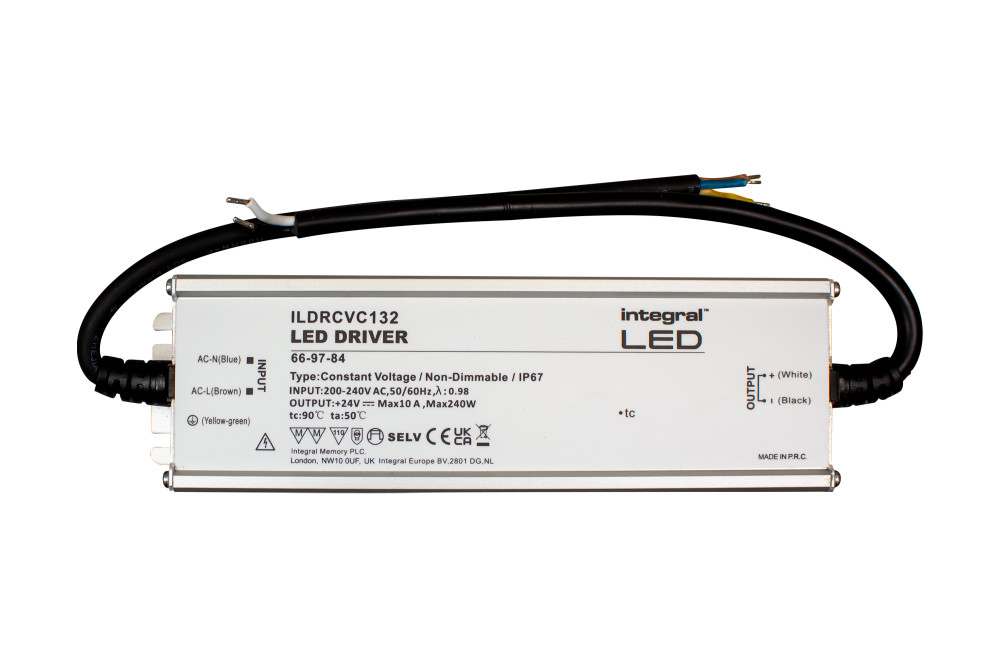

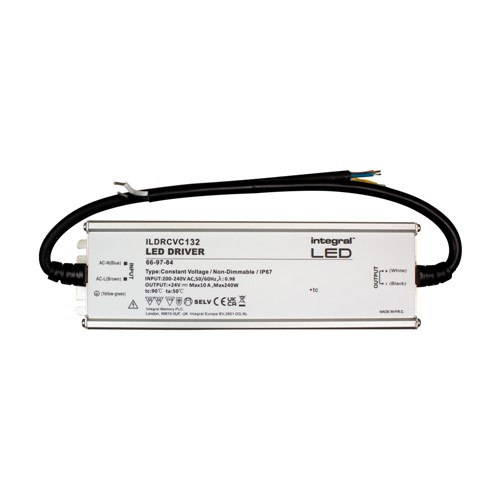

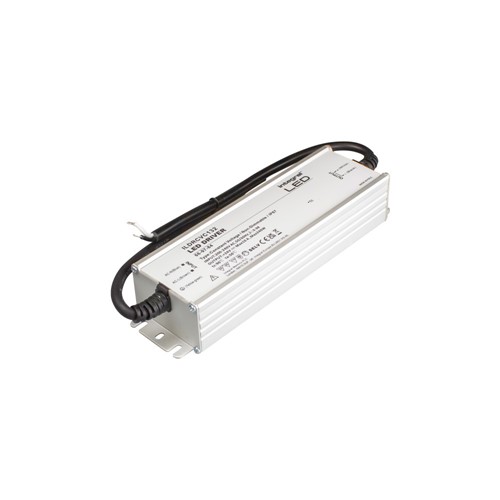

CONSTANT VOLTAGE DRIVER 240W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL
Part Number:
ILDRCVC132
This non-dimmable 240W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage for applications such as 24V LED strip lighting. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240V
- Product Feature 2:
- Output Power: 240W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Product Feature 5:
- Class I product - Earth connection required
- Availability:
-
100+
More stock due in on 25/05/2026
Details
| Barcode | 5055788288510 |
|---|---|
| Quick Order Code | 669784 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Product Body Finish | Silver |
| Market Segment | Commercial outdoor, Residential outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 220.6 |
|---|---|
| Product Depth (mm) | 41.3 |
| Product Width (mm) | 62.5 |
| Product Weight (g) | 980 |
| Material | Metal Shell |
| Placement / Application | Indoor LED Lighting, Outdoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 240 |
|---|---|
| Power Consumption (W) | 240 |
| Power Factor | 0.97 |
| Voltage (V) | 24 |
| Input Current (A) | 0.35 |
| Input Voltage (V) | 200-240 |
| Output Current (mA) | 20000 |
| Output Voltage (V) | 24 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Barcode | 5055788288510 |
|---|---|
| Package Weight (g) | 1130 |
| Package Length (mm) | 265 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 50 |
Safety Guide
