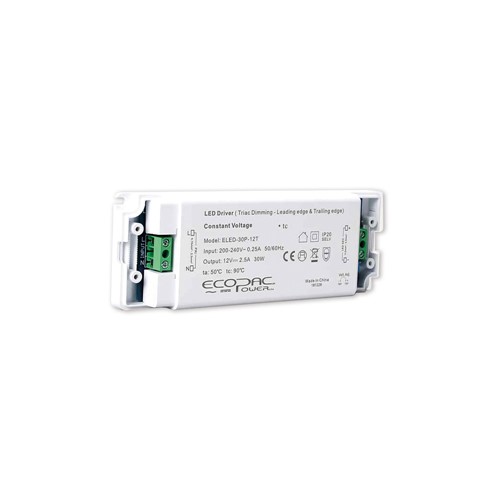

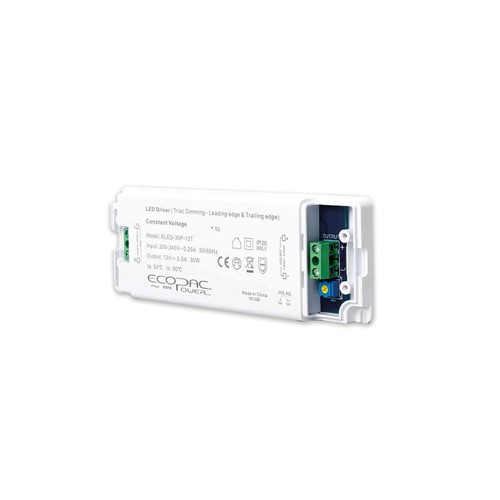

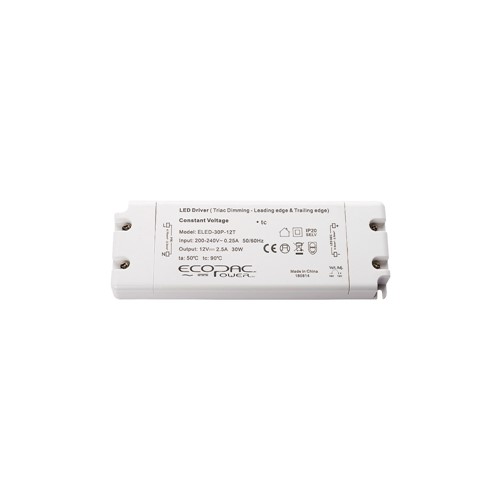

CONSTANT VOLTAGE DRIVER 30W 12VDC IP20 TRIAC DIMMABLE 200-240V INPUT 3W MIN LOAD ECOPAC POWER

Part Number:

ELED-30P-12T

This 30W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers

Product Feature 1:
Input Voltage: 200-240VAC
Product Feature 2:
Output Power: 30W
Product Feature 3:
Output: 12VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
Availability:
100+

More stock due in on 30/03/2024

Quick Order Code 850065
Barcode 5055788265955
Category Drivers
Range Name TRIAC
Product Type Constant Voltage
Market Segment Commercial indoor, Residential indoor
Warranty (Years) 2
Product Length (mm) 155
Product Depth (mm) 20
Product Width (mm) 54
Product Weight (g) 196
Placement / Application Indoor LED Lighting
Frequency Range (Hz) 50/60
Power Consumption (W) 30
Power Factor 0.97
Voltage (V) 12
Voltage Range (v) 200-240
Input Current (A) 0.22
Input Voltage (V) 200-240VAC
Output Current (mA) 2500
Dimming Triac Dimmable using leading and trailing edge dimmers
Protection Function Short Circuit Protection, Overload Protection, Overheat Protection
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 60
Package Weight (g) 210
Package Length (mm) 160
Package Width (mm) 60
Package Depth (mm) 23
