CONSTANT VOLTAGE DRIVER 320W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL
Part Number:
ILDRCVC128

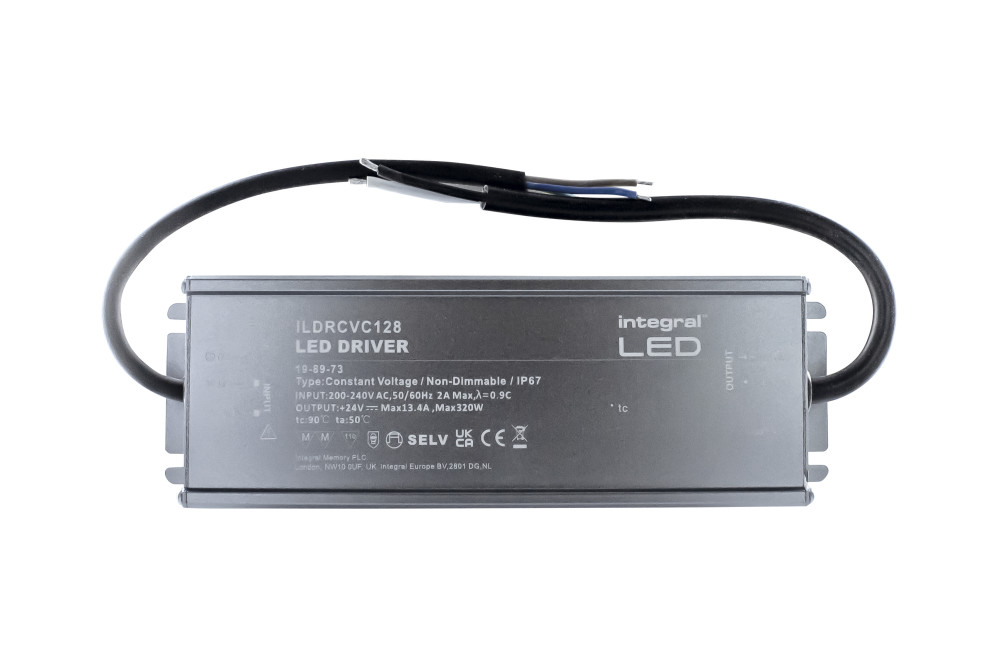

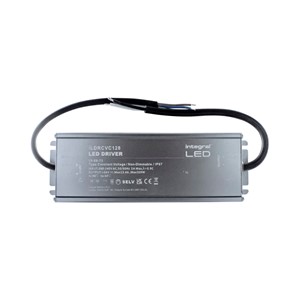

This Integral LED 320W constant voltage LED driver operates at 200-240VAC input range. It provides 24V constant voltage and up to 13.4A of output current for a 320W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 24V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strips. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 320W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Product Feature 5:
- Class I
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788274629 |
|---|---|
| Quick Order Code | 198973 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Market Segment | Commercial outdoor , Residential outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 225 |
|---|---|
| Product Depth (mm) | 38 |
| Product Width (mm) | 73.5 |
| Product Weight (g) | 1050 |
| Material | Aluminium Shell |
| Placement / Application | Indoor LED Lighting, Outdoor LED Light |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 320 |
|---|---|
| Power Consumption (W) | 320 |
| Power Factor | 0.9 |
| Voltage (V) | 24 |
| Voltage Range (v) | 200-240 |
| Input Current (A) | 2 |
| Input Voltage (V) | 200-240 |
| Output Current (mA) | 13.4 |
| Output Voltage (V) | 24 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788274629 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1100 |
| Package Length (mm) | 268 |
| Package Width (mm) | 107 |
| Package Depth (mm) | 50 |
| Outer Carton Barcode | 5055788274636 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 268 |
| Outer Carton Width (mm) | 215 |
| Outer Carton Depth (mm) | 255 |
