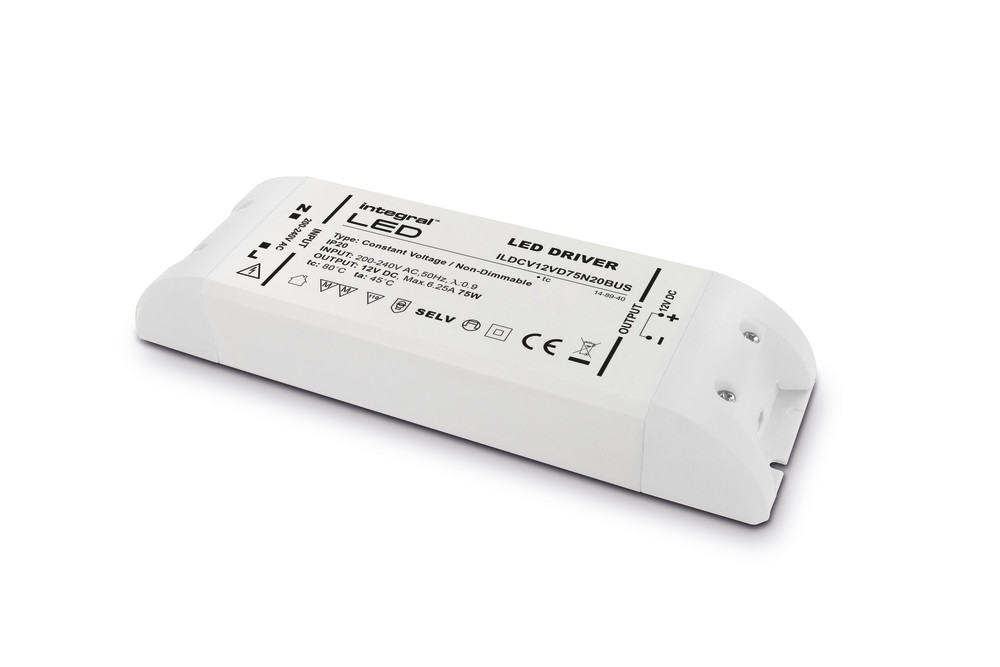

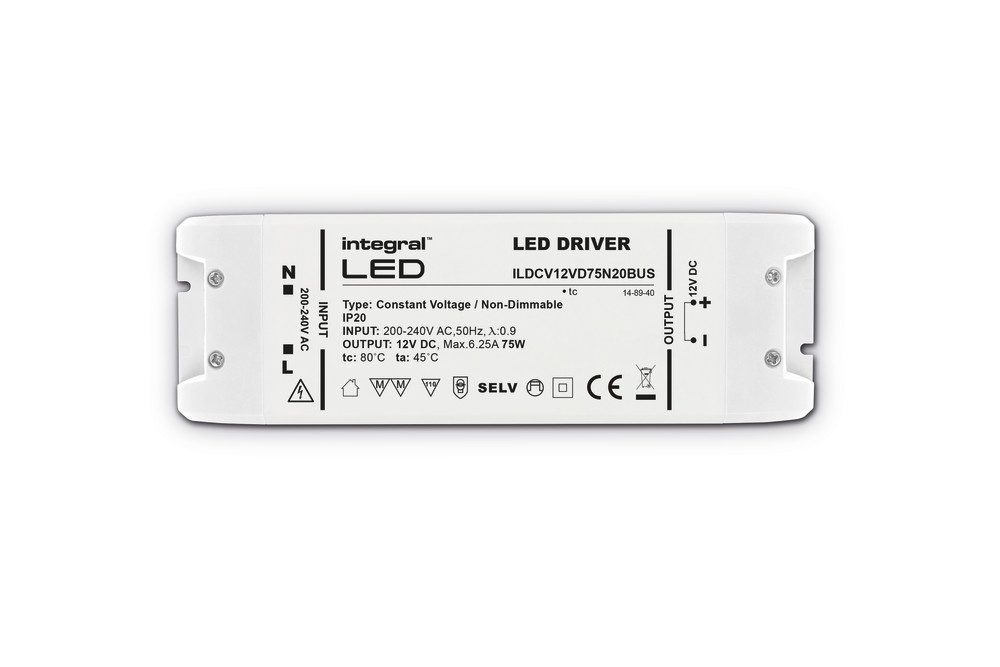

CONSTANT VOLTAGE DRIVER 75W 12VDC IP20 NON-DIMM 200-240V INPUT INTEGRAL
Part Number:
ILDRCVA044
The Integral 75W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and up to 6.25A of output current for a 75W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 12V constant voltage LED lighting systems. The LED driver features an IP20 rated casing, ideal for indoor use. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 75W
- Product Feature 3:
- Output: 12VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
100+
More stock due in on 09/06/2025
Details
| Barcode | 5055788206064 |
|---|---|
| Quick Order Code | 148940 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Market Segment | Commercial indoor, Residential indoor, Commercial outdoor (with appropriate outdoor fitting), Residential outdoor (with appropriate outdoor fitting) |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 200.8 |
|---|---|
| Product Depth (mm) | 30 |
| Product Width (mm) | 63 |
| Product Weight (g) | 319 |
| Material | Plastic Shell |
| Placement / Application | Indoor LED Lighting, Outdoor LED Light (with appropriate outdoor fitting) |
Light Data
| Frequency Range (Hz) | 50 |
|---|
Electrical Data
| Power (W) | 75 |
|---|---|
| Power Consumption (W) | 75 |
| Power Factor | 0.9 |
| Voltage (V) | 12 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | 0.5 |
| Input Voltage (V) | 200-240 |
| Output Current (mA) | 6250 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788206064 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 360 |
| Package Length (mm) | 204 |
| Package Width (mm) | 67 |
| Package Depth (mm) | 36 |
| Outer Carton Barcode | 5055788238959 |
| Qty per Outer Carton | 25 |
| Outer Carton Length (mm) | 235 |
| Outer Carton Width (mm) | 175 |
| Outer Carton Depth (mm) | 165 |
