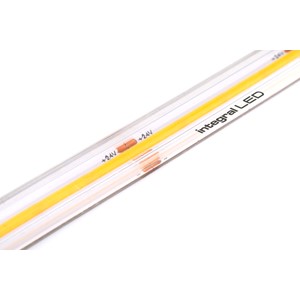

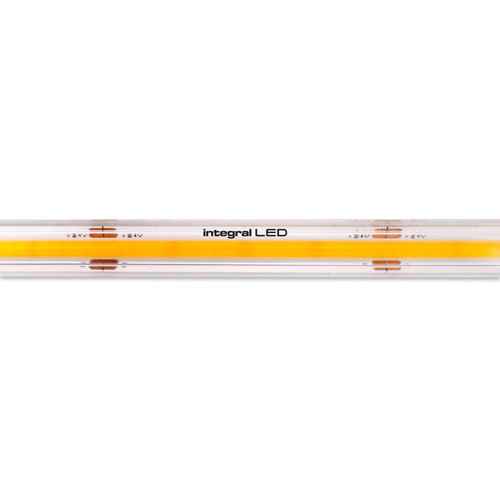

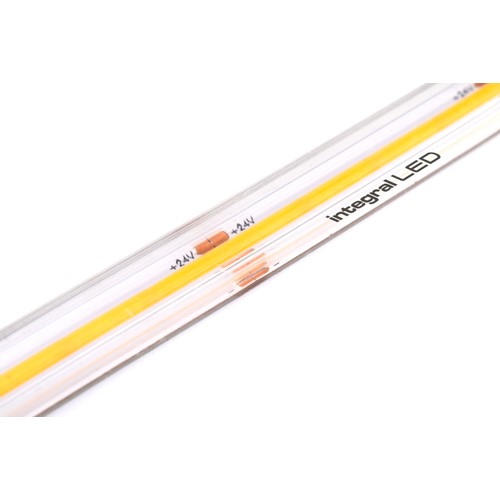

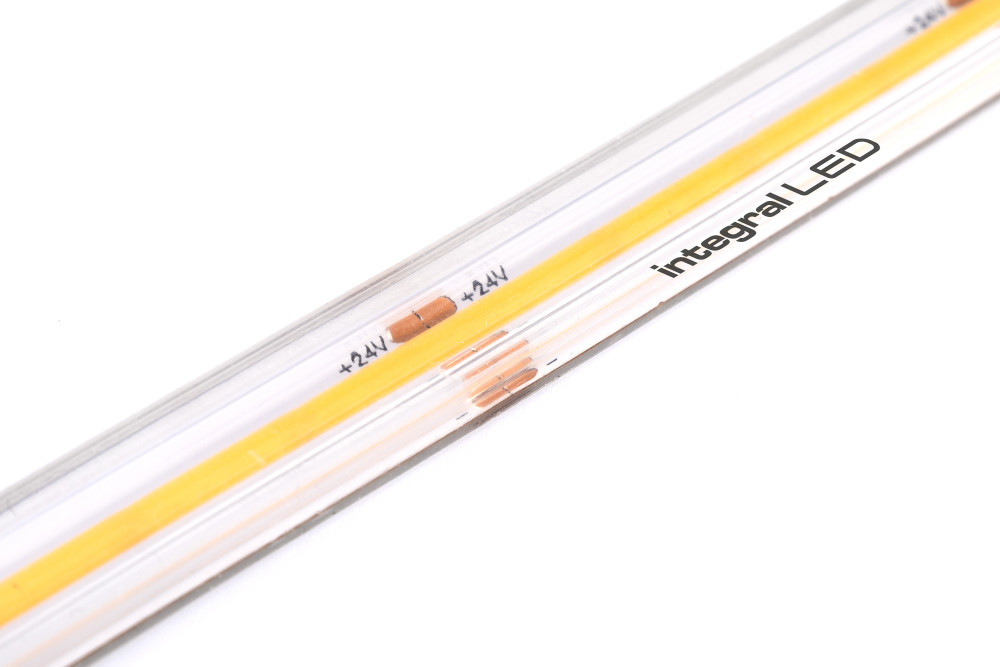

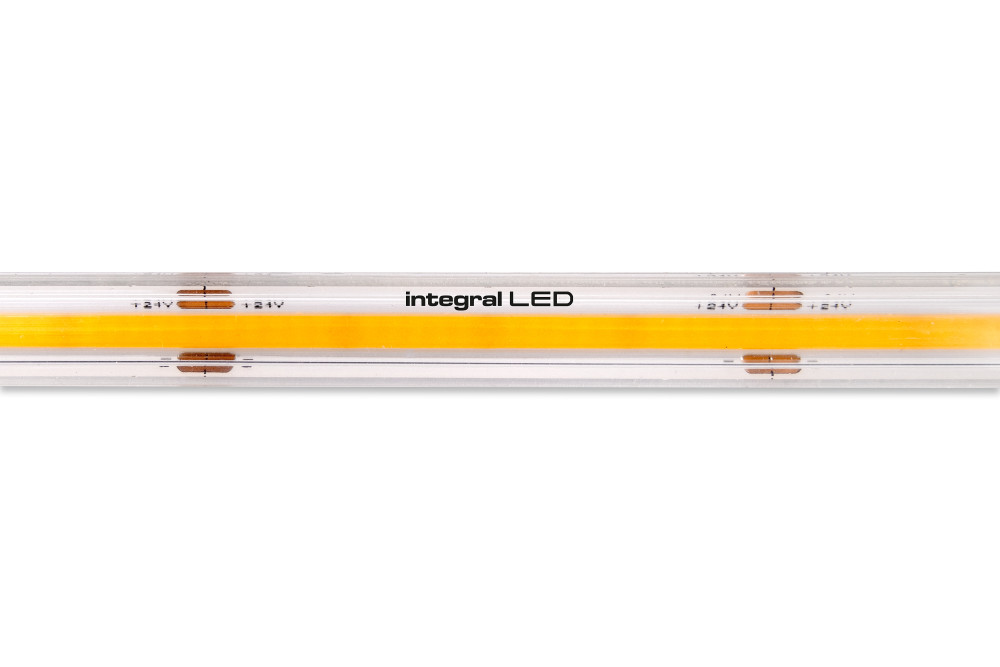

ULTRALONG MAX30 PREMIUM IP67 2700K STRIP TAPE 30M REEL 640LM/M 8W/M COB HIGH UNIFORMITY SPOTLESS
Part Number:
ILSTWHIC964E
Elevate the ambience of your spaces with the Integral LED Premium Ultra-Long Max30 Strip, designed to blend performance and style seamlessly. Leveraging COB technology to provide seamless, shadow-free illumination, this strip is capable of maintaining harmonious control over 30 metres using a single driver, making it is ideal for applications requiring continuous, uninterrupted runs where multiple drivers or cut points are impractical.
A robust IP67 rating ensures protection against dust and water jets, making it suitable for areas where moisture exposure is expected. Designed for both indoor and sheltered outdoor use, this LED strip offers a warm 2700K colour temperature, creating a serene and welcoming atmosphere.
- Product Feature 1:
- Premium COB for complete uniformity
- Product Feature 2:
- Ultra-long MAX30 for runs up to a maximum of 30m without cuts
- Product Feature 3:
- 8W per metre
- Product Feature 4:
- IP67 for reliability outdoors
- Product Feature 5:
- 30m Pack
- Availability:
-
20
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788304333 |
|---|---|
| Quick Order Code | 667015 |
| Category | Strips |
| Range Name | Ultra-long |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Ultra-long |
| Warranty (Years) | 5 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Max Run Length (m) | 30 |
| Strip length (M) | 30 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 80 |
|---|---|
| Lumens per meter (lm/m) | 640 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | Warm White |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 480 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 8 |
|---|---|
| Voltage (V) | 48 |
| Voltage Range (v) | 48 |
| Watts per metre | 6.1w - 10w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788304333 |
|---|---|
| Package Weight (g) | 2360 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 38 |
| Outer Carton Barcode | 55788306276 |
| Qty per Outer Carton | 7 |
| Outer Carton Length (mm) | 360 |
| Outer Carton Width (mm) | 330 |
| Outer Carton Depth (mm) | 380 |
| Qty per euro pallet | 210 |
