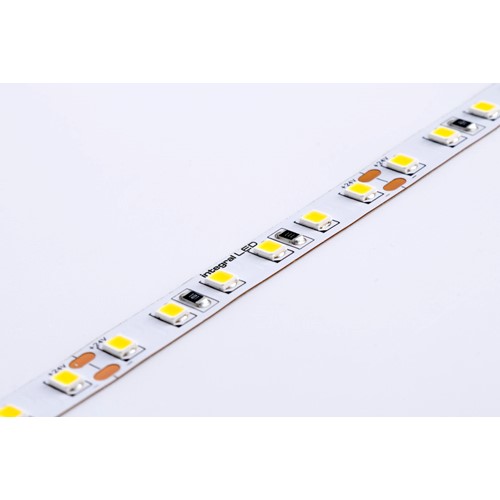

ULTRALONG MAX50 CORE IP20 3000K STRIP TAPE 50M REEL 672LM/M 5.6W/M 48V
Part Number:
ILSTWHIA945E
Elevate the ambience of your spaces with the Integral LED Core Ultra-Long Max50 Strip, designed to blend performance and style seamlessly. Providing exceptional brightness with superior energy efficiency, this strip is capabale of maintaining harmonious control over 50 metres using a single driver, making it is ideal for applications requiring continuous, uninterrupted runs where multiple drivers or cut points are impractical.
Suitable for dry indoor environments, this LED strip offers a warm white 3000K colour temperature that balances cosiness with clarity, creating a comfortable and inviting atmosphere.
- Product Feature 1:
- Core SMD 48V for maximum efficiency
- Product Feature 2:
- Ultra-long MAX50 for runs up to a maximum of 50m without cuts
- Product Feature 3:
- 5.6W per metre
- Product Feature 4:
- IP20
- Product Feature 5:
- 50m Pack
- Availability:
-
5
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788303787 |
|---|---|
| Quick Order Code | 025659 |
| Category | Strips |
| Range Name | Ultra-long |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Ultra-long |
| Warranty (Years) | 5 |
Physical Data
| Construction | LED surface mounted on to strip |
|---|---|
| Max Run Length (m) | 50 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 12 |
Light Data
| Luminous efficacy (lm/W) | 120 |
|---|---|
| Lumens per meter (lm/m) | 672 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Warm White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 84 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 5.6 |
|---|---|
| Voltage (V) | 48 |
| Voltage Range (v) | 48 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788303787 |
|---|---|
| Package Weight (g) | 1640 |
| Package Length (mm) | 450 |
| Package Width (mm) | 430 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 055788305729 |
| Qty per Outer Carton | 10 |
| Outer Carton Length (mm) | 470 |
| Outer Carton Width (mm) | 290 |
| Outer Carton Depth (mm) | 450 |
| Qty per euro pallet | 160 |
