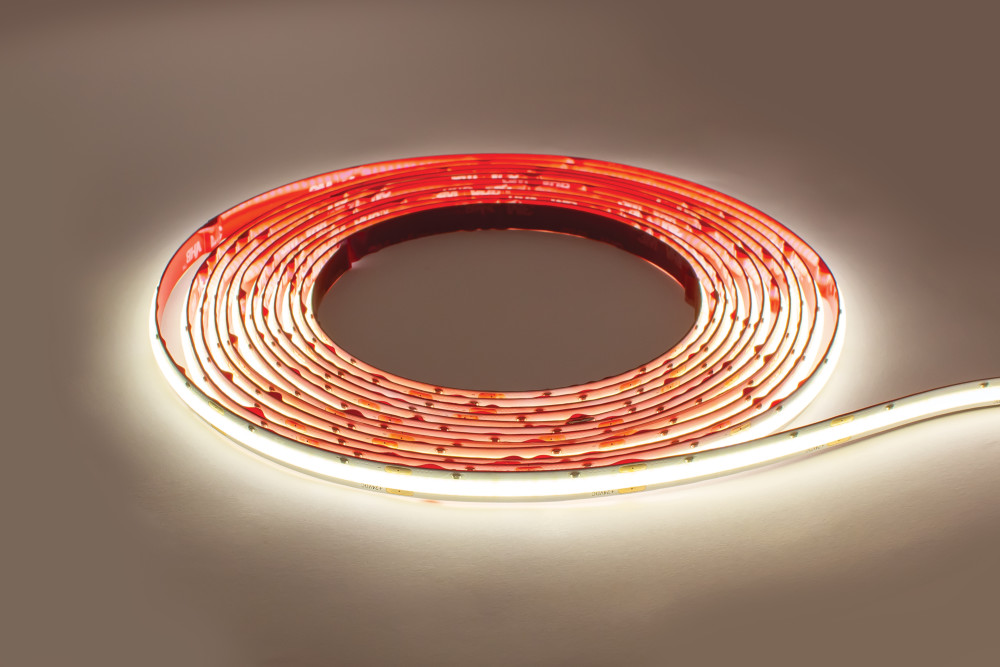

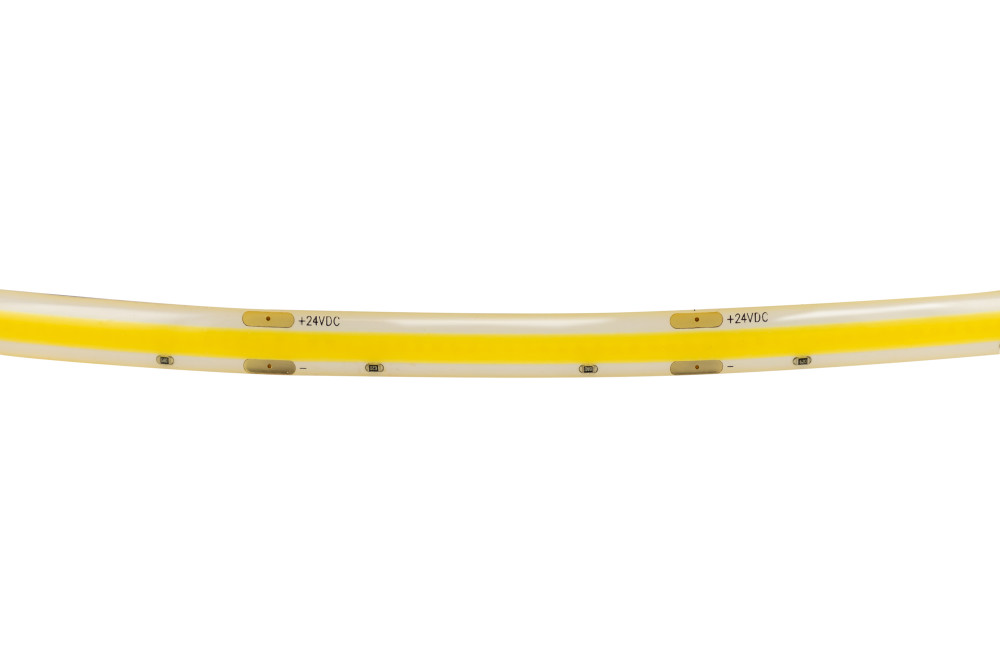

COB HIGH UNIFORMITY+ STRIP IP65 5M PACK 4000K 24V 10W/M 1098LM/M CRI80 480LED/M 10MM WIDTH 115 BEAM
Part Number:
ILSTWHIB368E
This new generation of LED strips utilises ultra-small LEDs arranged in a close formation to effectively eliminate the visible shadow present in many LED strips. This creates the effect of one continuous line of light, without the need of installation in a profile with frosted diffuser - ideal for any project where the strip is installed in a line of direct sight. This model is also IP65-rated to suit any wet-area application.

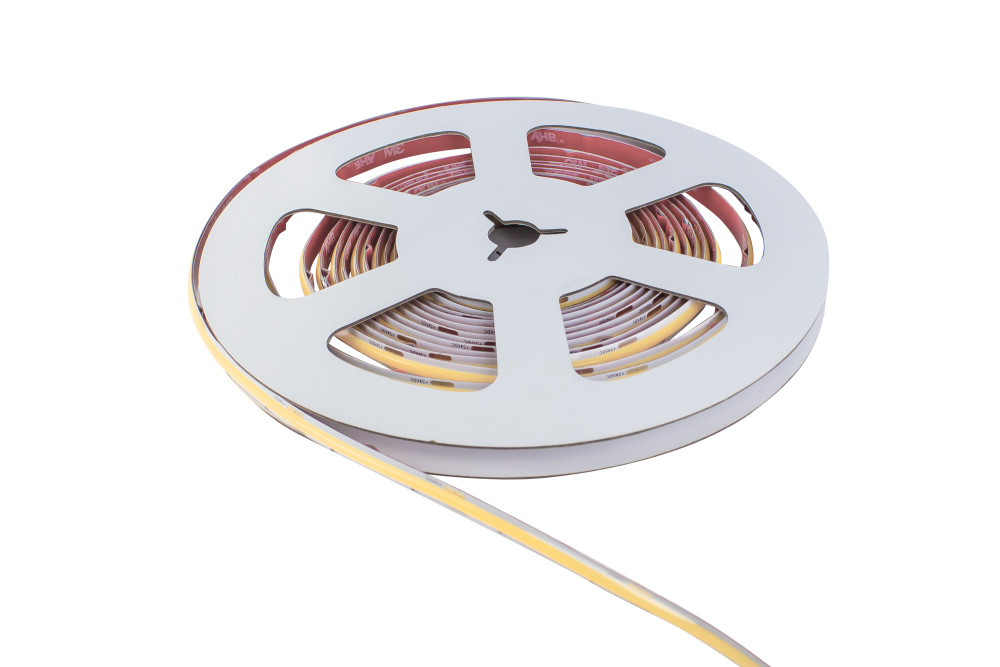

Each 5m reel is supplied with an easy-to-follow installation guide, 2 end caps, a spare tail and a tube of silicone.
A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
Additional accessories are available to purchase (see suggested products below).
- Product Feature 1:
- Cool White
- Product Feature 2:
- 10W per metre
- Product Feature 3:
- 480 LED's per metre
- Product Feature 4:
- 24V DC Constant Voltage
- Product Feature 5:
- Truly spotless even when dimmed
- Product Feature 6:
- IP65 for wet-area applications
- Product Feature 7:
- 5-metre pack
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788288008 |
|---|---|
| Quick Order Code | 195605 |
| Category | Strips |
| Range Name | High Uniformity Plus |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Spotless |
| Warranty (Years) | 3 |
Physical Data
| Strip Cut Points | 50 |
|---|---|
| Product Width (mm) | 8 |
| Material | PCB, Silicone glue |
| Construction | LED integrated into strip PCB |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
| Length (m) | 5 |
Light Data
| Luminous efficacy (lm/W) | 112 |
|---|---|
| Lumens per meter (lm/m) | 1124 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 140 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LEDs per meter | 480 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 10 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 6.1w - 10w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 60598, IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 60598, IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788288008 |
|---|---|
| Package Weight (g) | 255 |
| Package Length (mm) | 245 |
| Package Width (mm) | 215 |
| Package Depth (mm) | 10 |
