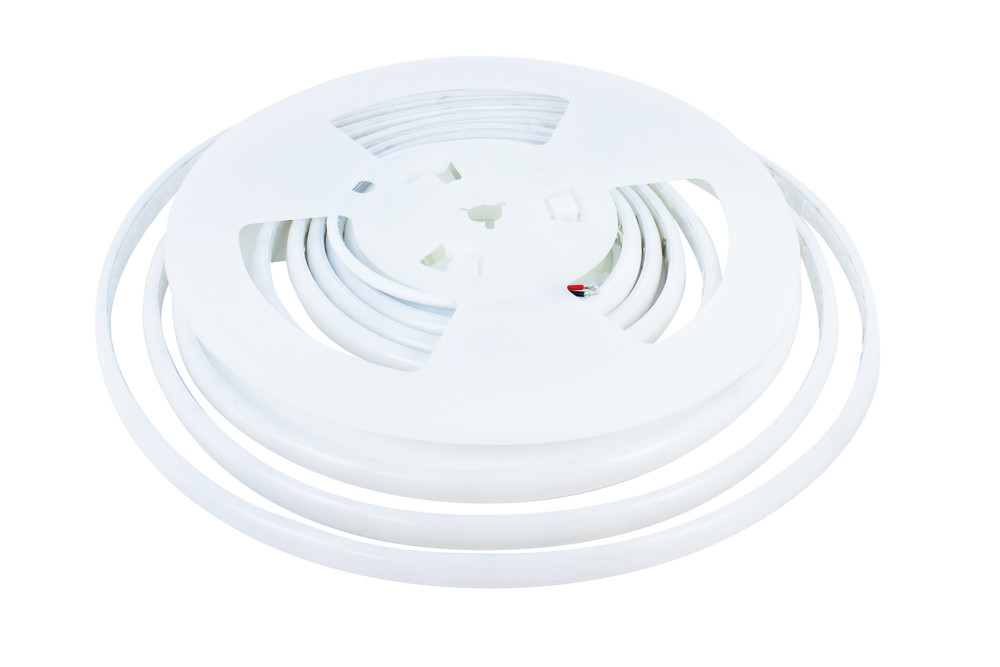

SPOTLESS NEON FLEX LED STRIP IP65 5M 2700K 24V 18W/M 1640LM/M 210LED/M 13MM WIDTH 115 BEAM CRI90 BAG PACK INTEGRAL
Part Number:
ILSTWHIB082E

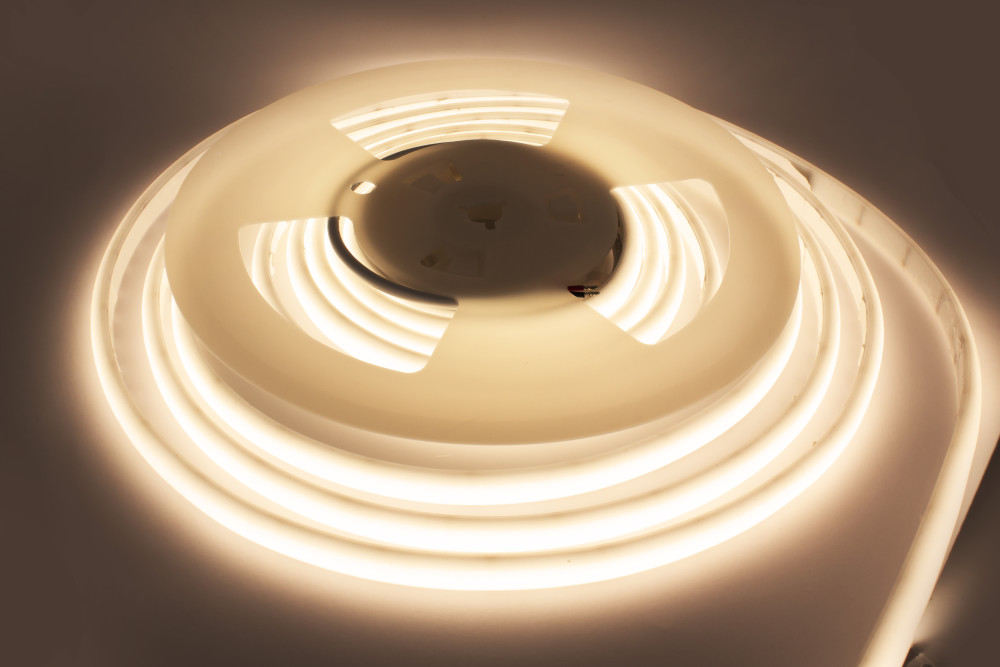

The Spotless IP65 Neon Flex strip mimics the look of traditional neon thanks to the milky silicone cover that creates a continuous light effect. A convenient flexible construction allows for an easy installation in kitchens, bathrooms or retail displays.
This specialised strip utilises very small LEDs arranged in a close formation that effectively eliminates the visible shadow present in many LED strips, for a totally spotless effect even when dimmed.
The high colour rendering index of CRI 90 and light output make the strip perfect to be used to create custom luminaires both for outdoor and indoor applications.
- Product Feature 1:
- Totally spotless even when dimmed
- Product Feature 2:
- Mimics the look of traditional neon
- Product Feature 3:
- Flexible construction easy to install
- Product Feature 4:
- Milky silicone cover for a continuous light effect
- Product Feature 5:
- IP65 for indoor and outdoor use
- Product Feature 6:
- Warm
- Product Feature 7:
- 18W per metre
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 466946 |
|---|---|
| Barcode | 5055788235323 |
| Category | Strips |
| Range Name | Neon Flex |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor, Outdoor |
| Features | Spotless, Neon Flex |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 7 |
|---|---|
| Product Weight (g) | 430 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 33.3 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor, outdoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 13 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIB082E_EU_label |
|---|---|
| Luminous efficacy (lm/W) | 67 |
| Lumens per meter (lm/m) | 1640 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature Name | Warm White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 210 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 18 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 10.1w - 20w |
| Input Voltage (V) | 24 |
| Dimming | Dimmable with compatible dimmers |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 510 |
|---|---|
| Package Length (mm) | 300 |
| Package Width (mm) | 320 |
| Package Depth (mm) | 15 |
