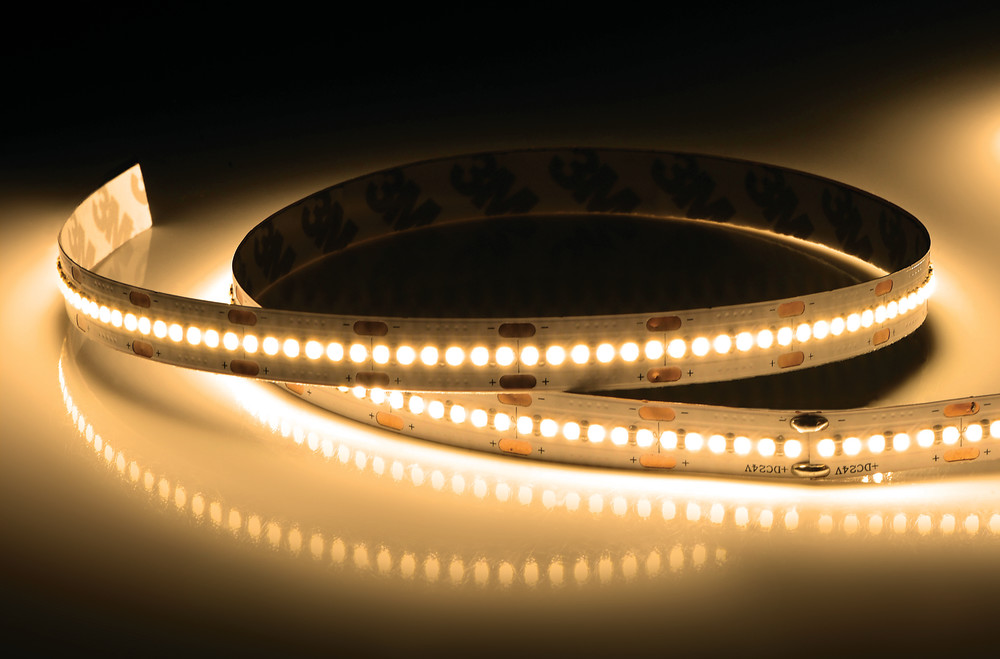

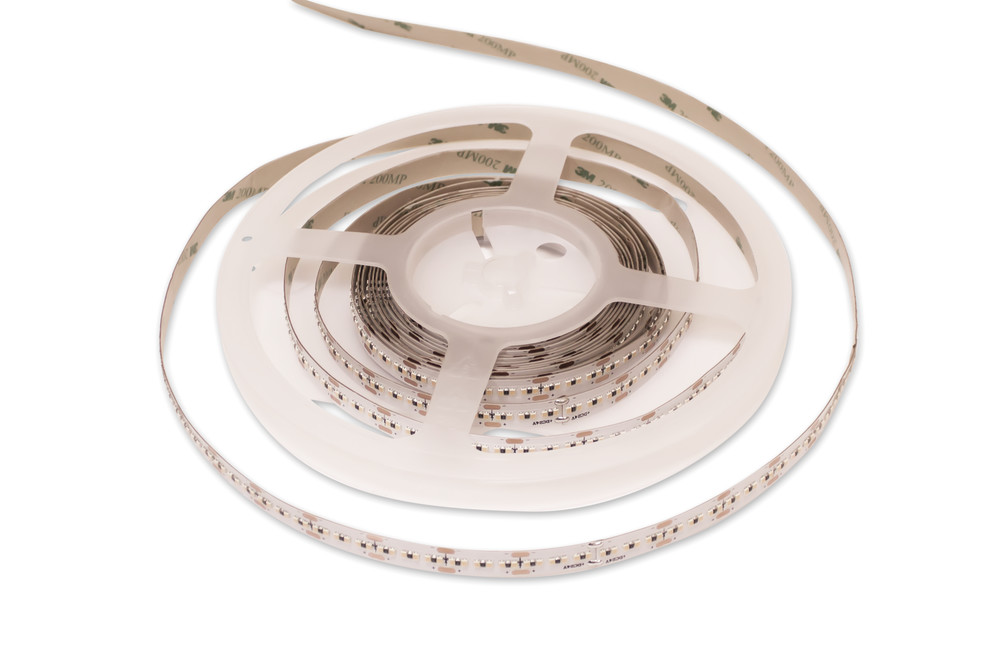

SPOTLESS STRIP IP20 5M 2700K 24V 16.5W/M 1516LM/M 280LED/M 10MM WIDTH 115 BEAM CRI90 BAG PACK INTEGRAL
Part Number:
ILSTWHIA071E
This specialised strip utilises very small LEDs (20:16) arranged in a close formation that effectively eliminates the visible shadow present in many LED strips. This creates the effect of one continuous line of light, particularly when installed within an aluminium profile. The Spotless strip also has a high colour rendering index of CRI 90 and is very bright at 1516lm/M, which means the strip can be used to create custom luminaires.
- Product Feature 1:
- Small 20:16 LEDs in close formation for a continuous light effect, Warm
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 16.5W per metre
- Product Feature 4:
- 280 LEDs per metre
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 571982 |
|---|---|
| Barcode | 5055788235088 |
| Category | Strips |
| Range Name | Spotless Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Strip Cut Points | 25 |
|---|---|
| Product Depth (mm) | 1.4 |
| Product Weight (g) | 122 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Max Run Length (m) | 6 |
| Max Strip Width (mm) | 10 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA071E_EU_label |
|---|---|
| Luminous efficacy (lm/W) | 92 |
| Lumens per meter (lm/m) | 1516 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature Name | Warm |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2016 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 280 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 16.5 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62034 |
| LVD Certified | Yes |
Environmental
| EN | EN-62034 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 146 |
|---|---|
| Package Length (mm) | 240 |
| Package Width (mm) | 220 |
| Package Depth (mm) | 15 |
