STRIP IP20 5M 3000K 24V 10.5W/M 1000LM/M 60LED/M 10MM WIDTH 115 BEAM CRI90 BAG PACK

Part Number:

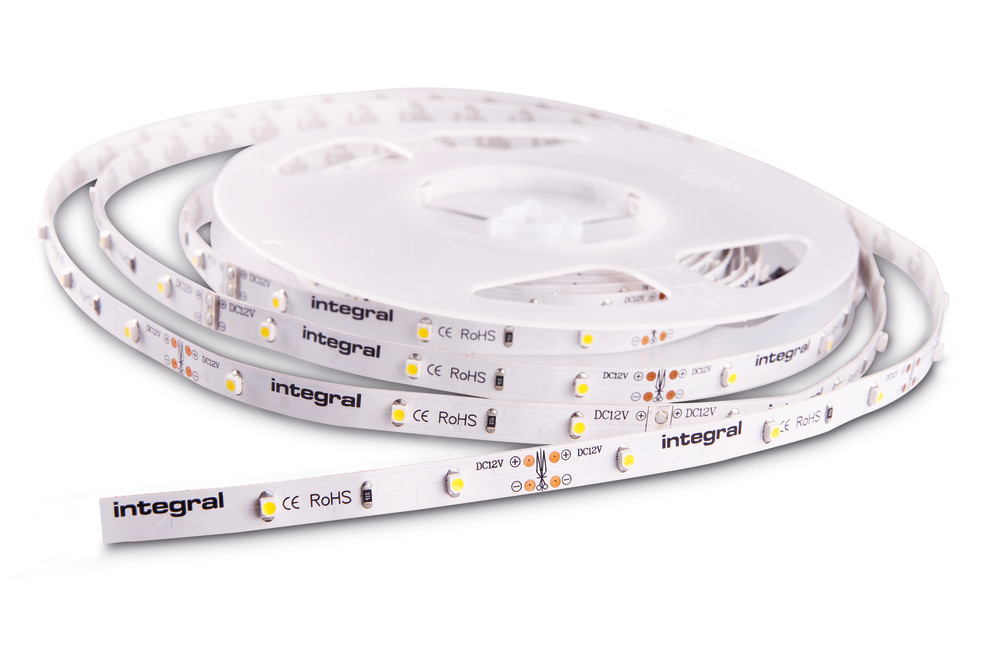

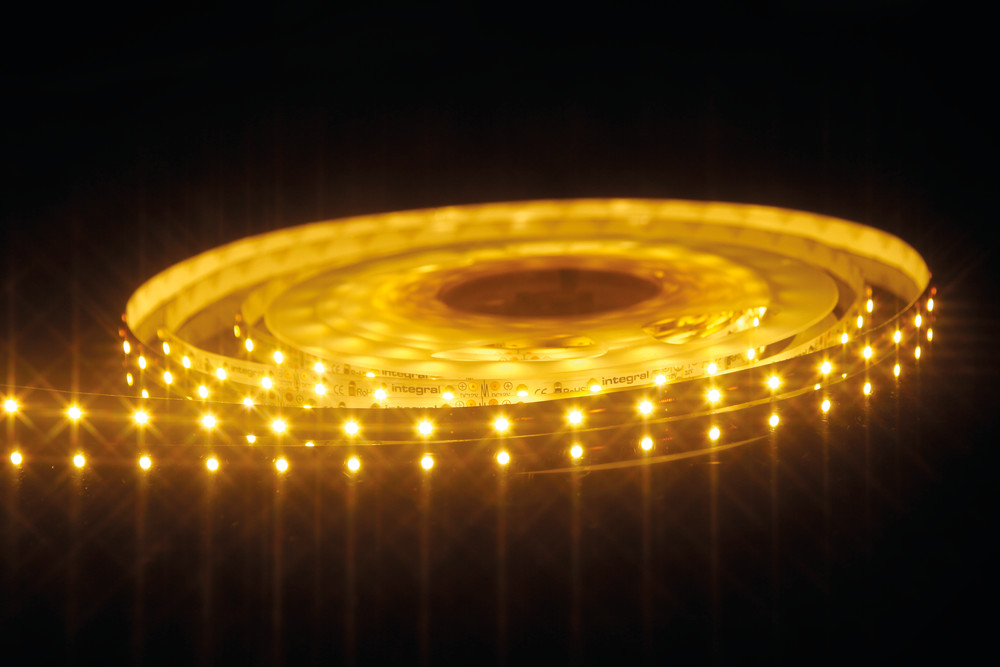

This warm white LED strip has 60pcs of SMD 28:35 LEDs per metre and is constructed using high quality materials to ensure a consistent brightness across the strip whilst offering up to 10 Metres of maximum continuous run.

This Integral LED Strip offers high colour rendering (CRI 90) to bring out the colour in any space, your colours will appear more vibrant and better defined than with a standard LED stip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other retail products at their best.

Each 5m reel is supplied with an easy-to-follow installation guide. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).

Product Feature 1:
Warm white
Product Feature 2:
24V DC Constant Voltage
Product Feature 3:
10.5W per metre
Product Feature 4:
60 LEDs per metre
Product Feature 5:
Can run up to 10 metres from one driver

More stock due in on 01/07/2024

Suggested products

Quick Order Code 499410
Barcode 5055788216612
Category Strips
Range Name White Strip
Product Type White strip
Market Segment Commercial indoor, Residential indoor
Features CRI 90
Warranty (Years) 3
Strip Cut Points 100
Product Weight (g) 93
Material PCB
Max Run Length (m) 10
Max Strip Width (mm) 10
Strip length (M) 5
Strip Width (mm) 10
Length (m) 5
Luminous efficacy (lm/W) 95
Lumens per meter (lm/m) 1000
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature Name Warm White
Beam Angle 115
Colour Rendering Index (CRI) 90
Colour Type White
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
LEDs per meter 60
Lifetime (hours) 30000
Power Consumption per meter (W/m) 10.5
Voltage (V) 24
Watts per metre 10.1w - 20w
Input Voltage (V) 24
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-62031
LVD Certified Yes
EN EN-62031
LVD Certified Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 60
Package Weight (g) 114
Package Length (mm) 210
Package Width (mm) 190
Package Depth (mm) 15

Product Specification Sheet

Safety Guides

Installation Guides
