STRIP IP33 5M 6500K 12V 6W/M 460LM/M 60LED/M 8MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA004E

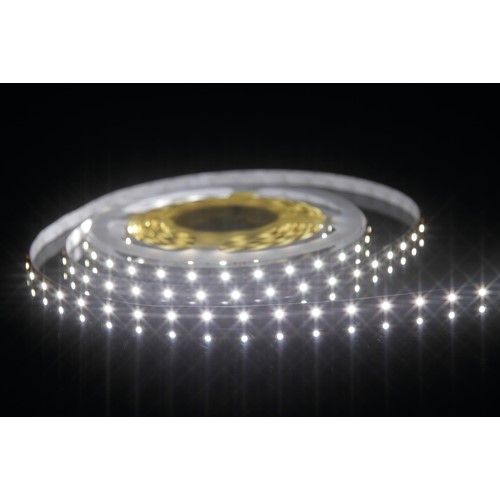

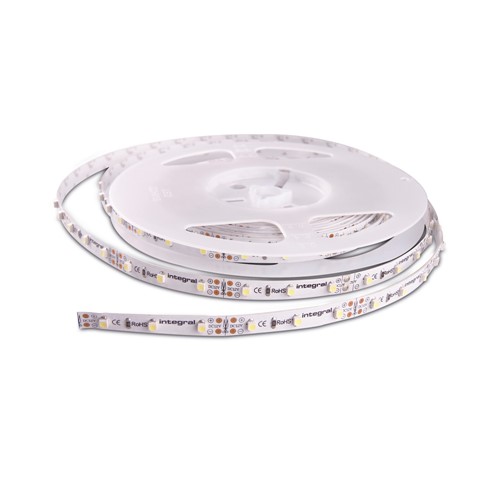

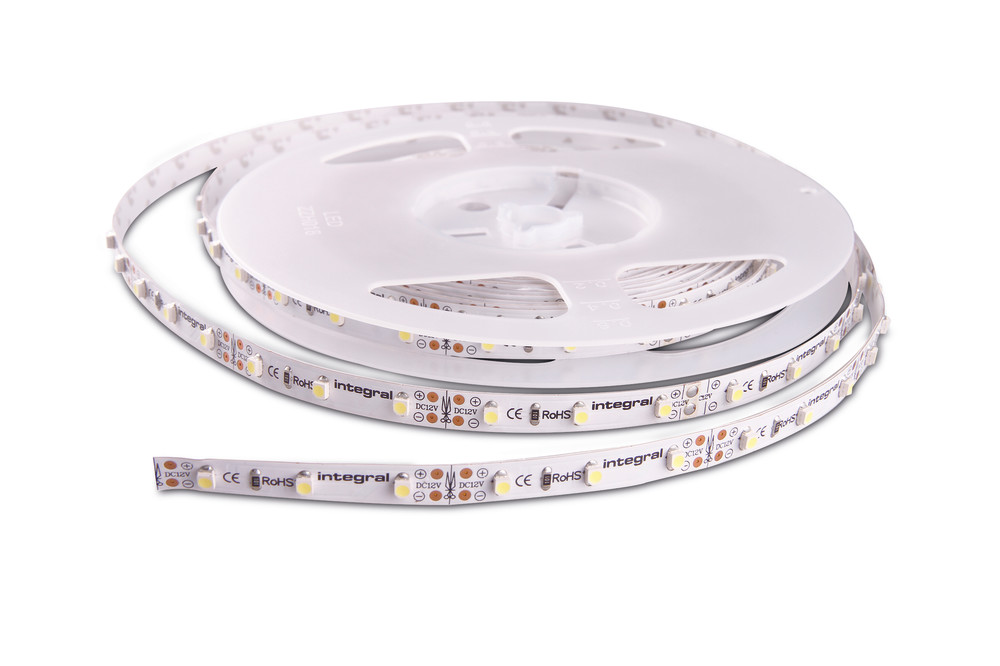

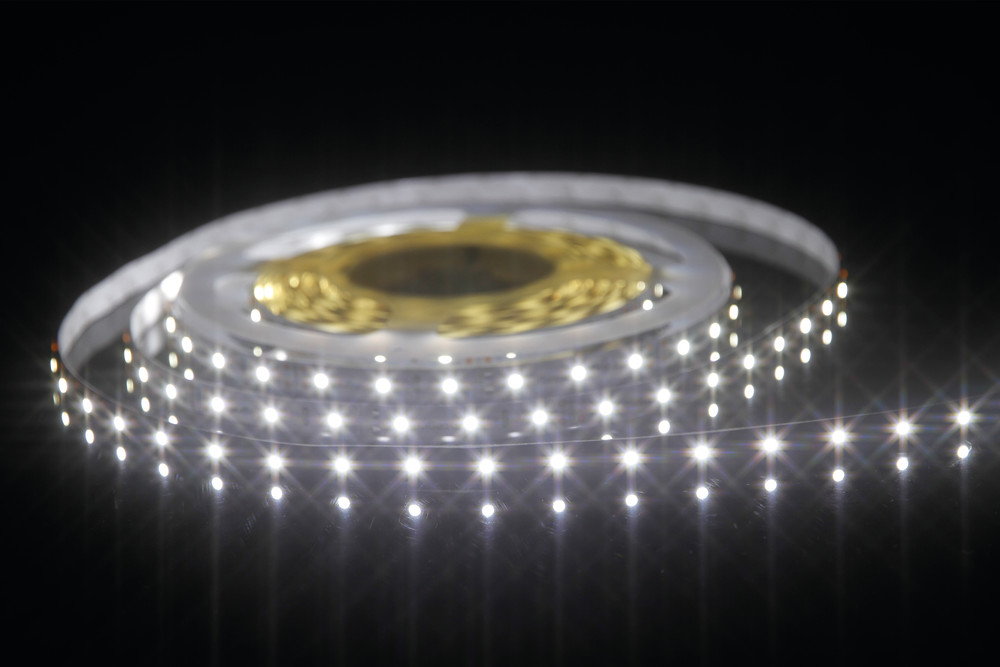

This cool daylight LED strip has 60pcs of SMD 35:28 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and an extra connector to power the strip if it is cut into two lengths. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 6W per metre
- Product Feature 4:
- LED size 35:28
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 371505 |
|---|---|
| Barcode | 5055788220633 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 8 |
|---|---|
| Product Weight (g) | 124 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Luminous efficacy (lm/W) | 76 |
|---|---|
| Lumens per meter (lm/m) | 460 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 3528 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 125 |
|---|---|
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 9 |
