STRIP IP33 5M 6500K 12V 8W/M 680LM/M 120LED/M 8MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA009E

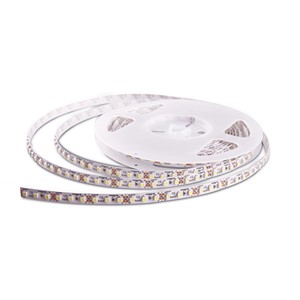

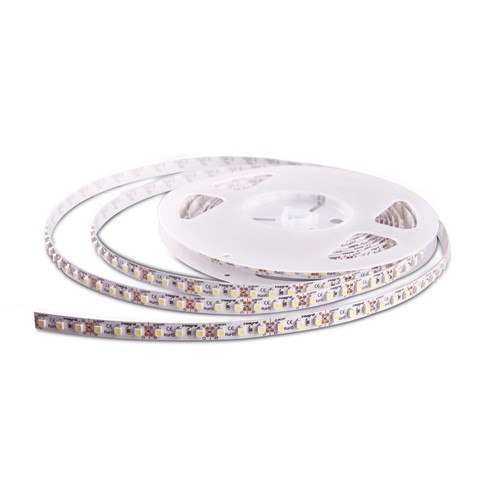

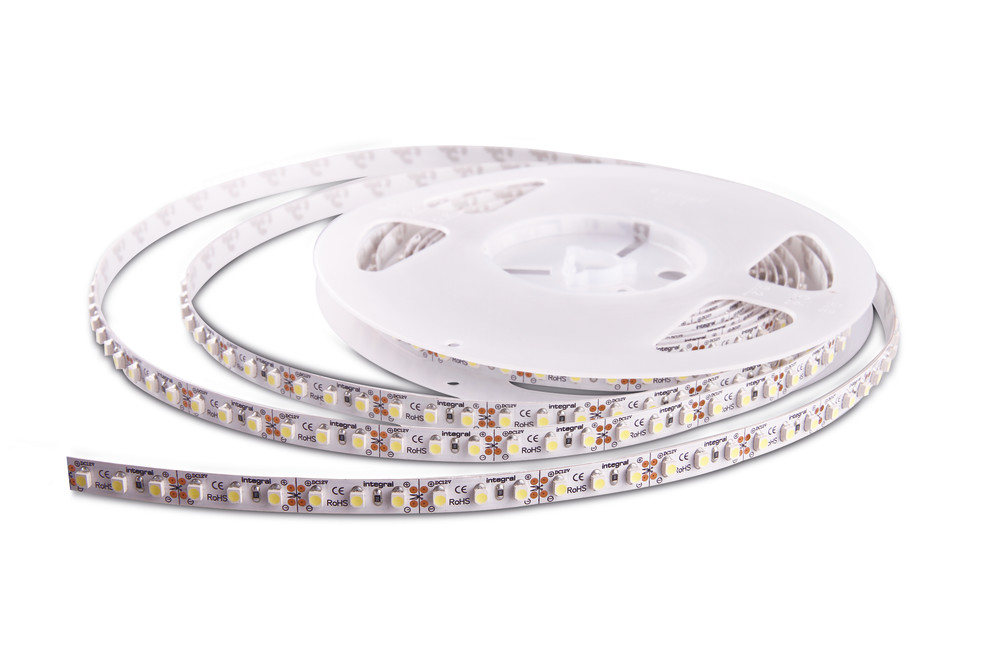

This cool daylight LED strip has 120pcs of SMD 35:28 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and an extra connector to power the strip if it is cut into two lengths. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 8W per metre
- Product Feature 4:
- LED size 35:28
- Availability:
-
36
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788220671 |
|---|---|
| Quick Order Code | 452826 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 8 |
|---|---|
| Product Weight (g) | 158 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 25 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA009E_EU_label |
|---|---|
| Luminous efficacy (lm/W) | 85 |
| Lumens per meter (lm/m) | 680 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 3528 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 120 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 8 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 6.1w - 10w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788220671 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 159 |
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 9 |
| Qty per Inner Carton | 40 |
| Inner Carton Length (mm) | 240 |
| Inner Carton Width (mm) | 240 |
| Inner Carton Depth (mm) | 4.6 |
| Outer Carton Barcode | 5055788285946 |
| Qty per Outer Carton | 80 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 270 |
| Outer Carton Depth (mm) | 390 |
Safety Guide
ILSTWHIA009E
