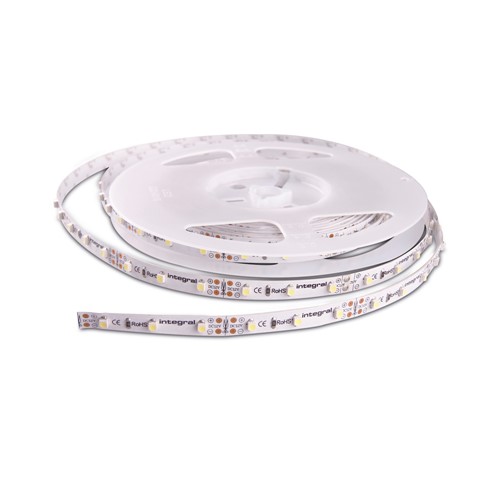

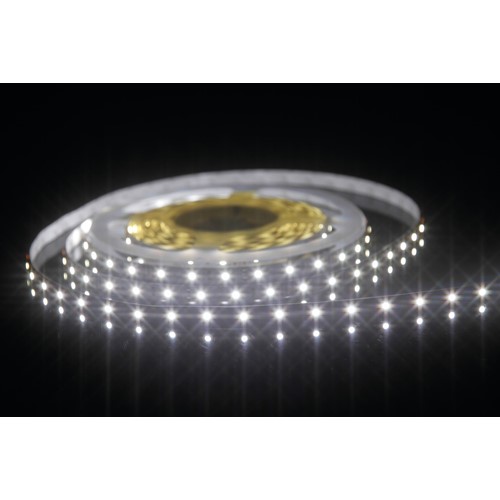

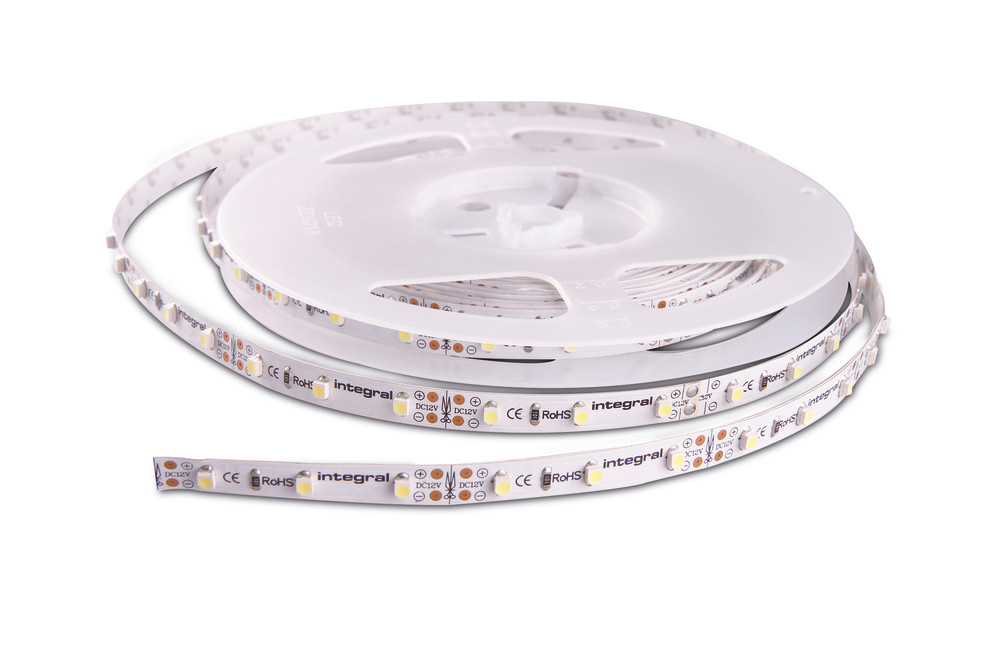

STRIP IP33 5M 6500K 24V 11.28W/M 1000LM/M 60LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA045E
This Cool Daylight LED strip has 60pcs of SMD 28:35 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guides. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 11.28W per metre
- Product Feature 4:
- LED size 28:35
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788216643 |
|---|---|
| Quick Order Code | 909284 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 120 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 99 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 87 |
|---|---|
| Lumens per meter (lm/m) | 1000 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 11.28 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 10.1w - 20w |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788216643 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 125 |
| Package Length (mm) | 190 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 11 |
| Inner Carton Barcode | 05055788216650 |
| Qty per Inner Carton | 30 |
| Inner Carton Length (mm) | 240 |
| Inner Carton Width (mm) | 240 |
| Inner Carton Depth (mm) | 4.5 |
| Outer Carton Barcode | 5055788216667 |
| Qty per Outer Carton | 60 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 270 |
| Outer Carton Depth (mm) | 390 |
