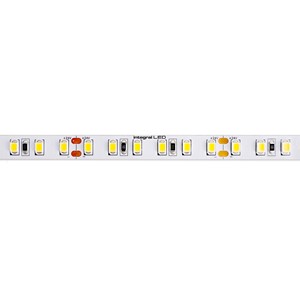

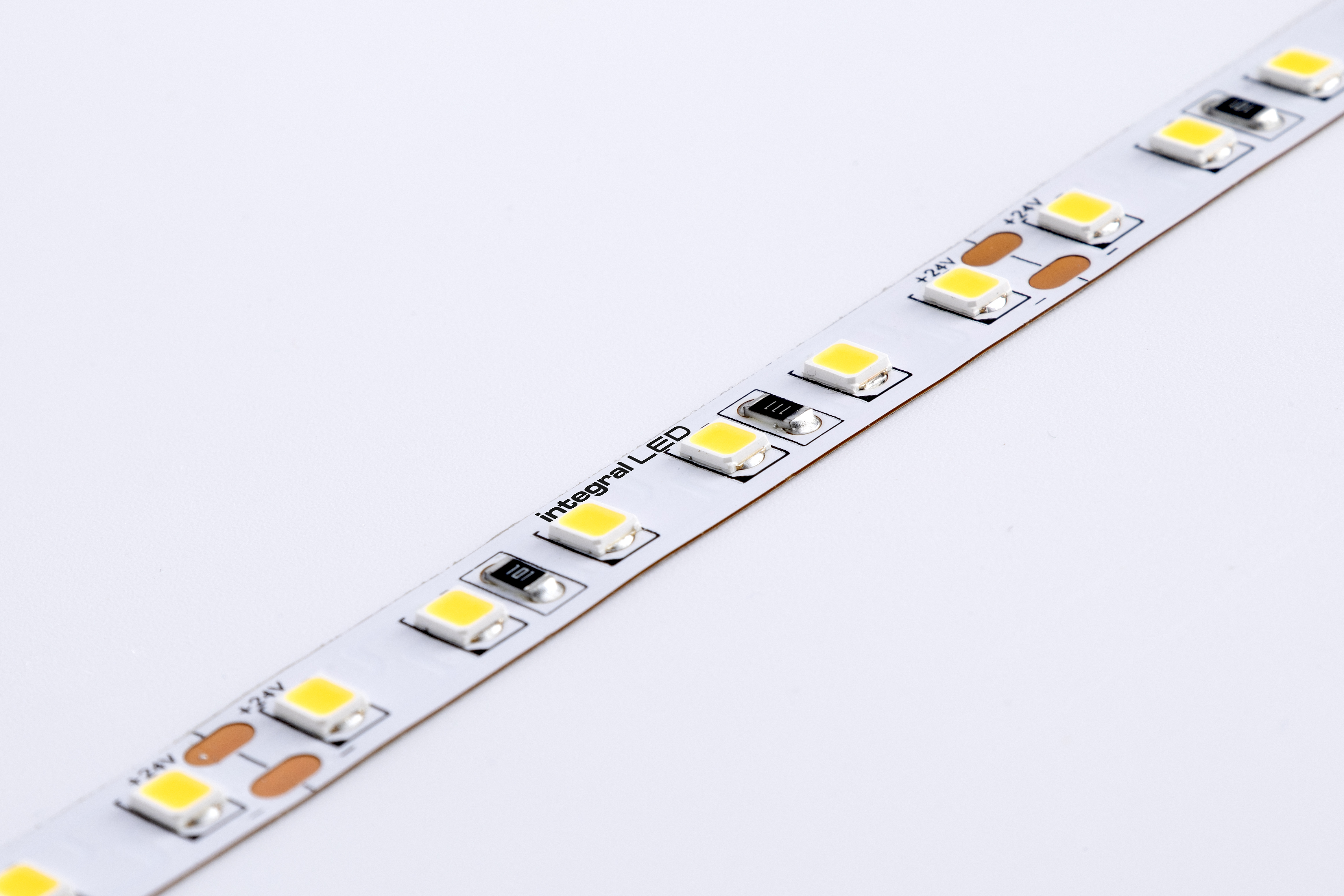

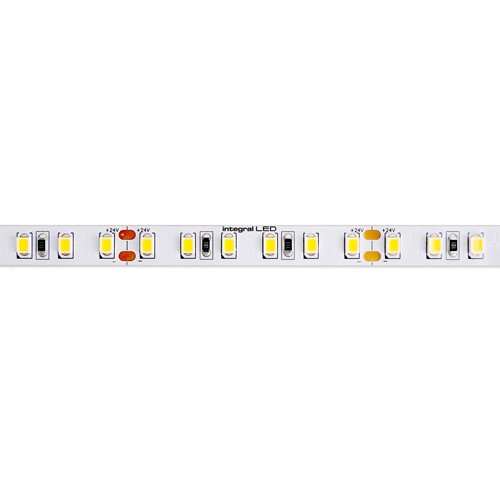

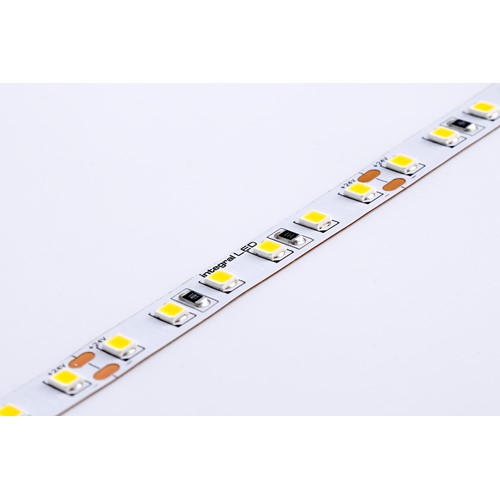

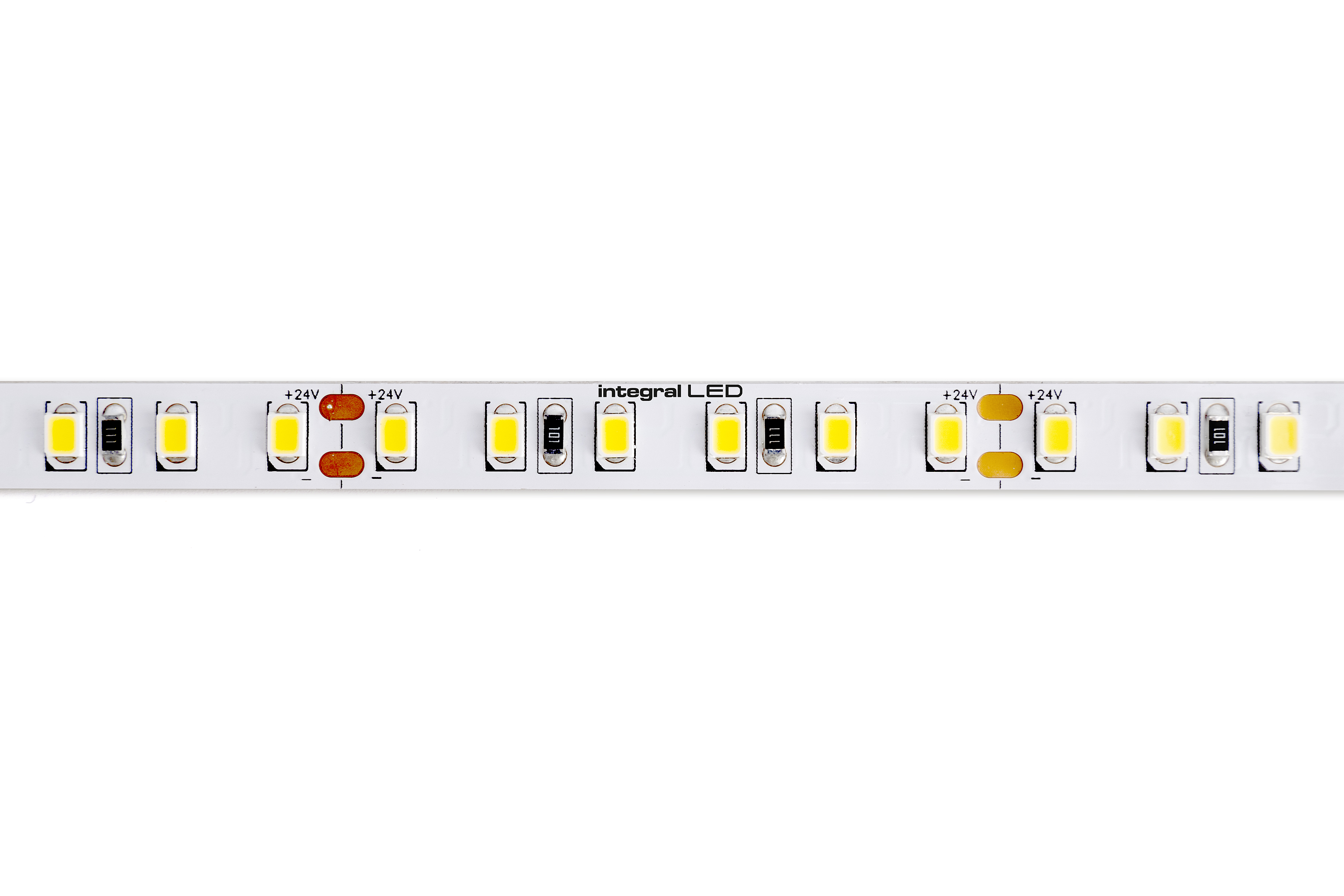

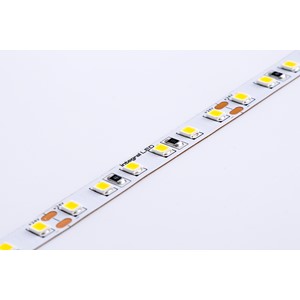

ULTRALONG MAX20 CORE IP20 4000K LED STRIP 10 MM TAPE 1044LM/M 24V 11W/M PER METRE
Part Number:
ILSTWHIA920EM
- Product Feature 1:
- 1m increments of strip up to 20m
- Product Feature 3:
- 11W per metre
- Product Feature 4:
- IP20
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788319177 |
|---|---|
| Quick Order Code | 160240 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 1000 |
|---|---|
| Product Width (mm) | 10 |
| Product Weight (g) | 0.001 |
| Construction | LED surface mounted on to strip |
| Max Run Length (m) | 20 |
| Strip length (M) | 1 |
Light Data
| Luminous efficacy (lm/W) | 95 |
|---|---|
| Lumens per meter (lm/m) | 1044 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | Single Colour |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 11 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788319177 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 32.8 |
| Package Length (mm) | 245 |
| Package Width (mm) | 235 |
| Package Depth (mm) | 12 |
