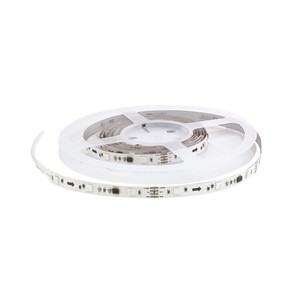

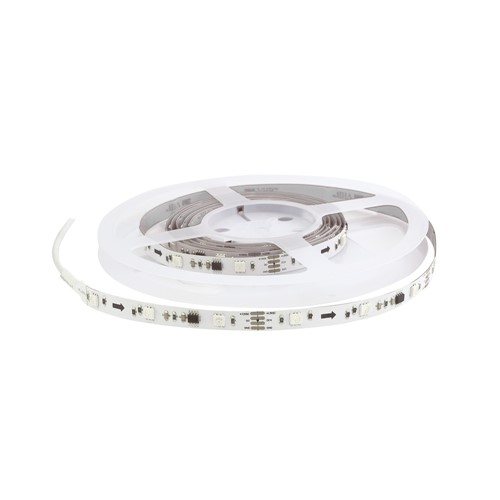

DIGITAL PIXEL STRIP IP20 5M RGB 12V 14.4W/M 60LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBA073E

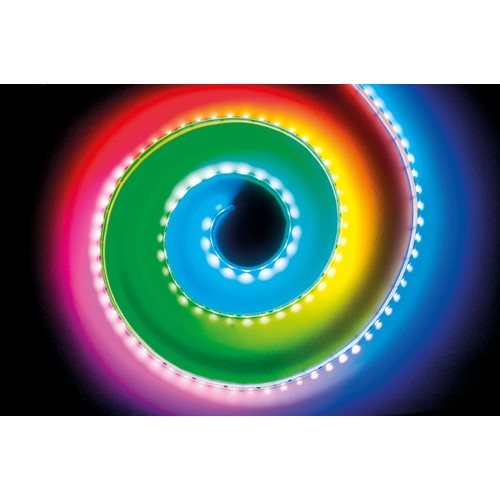

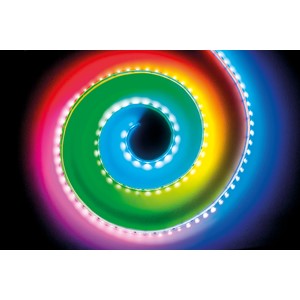

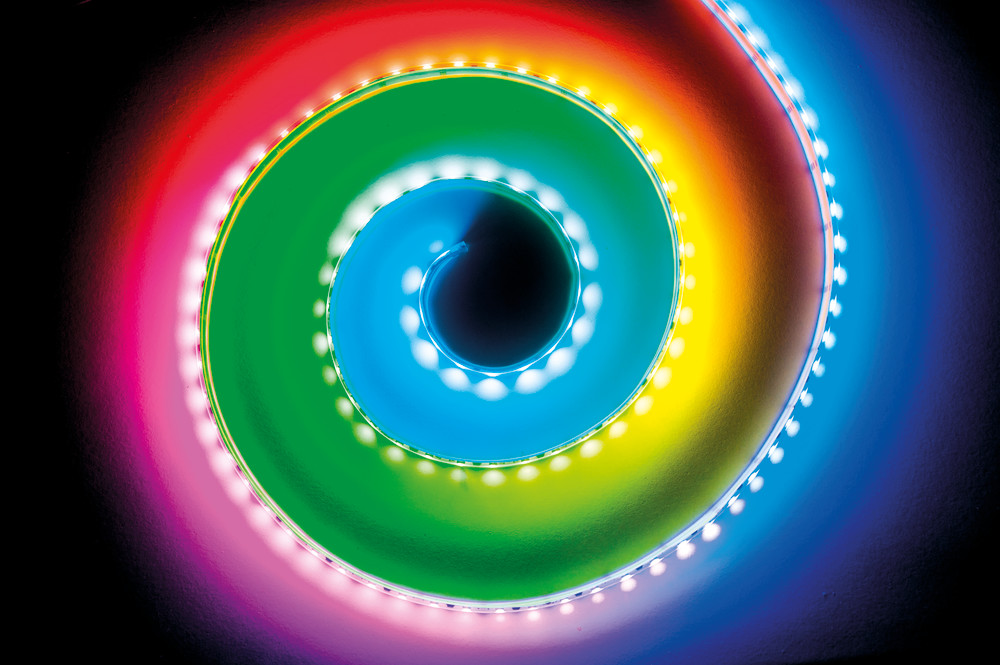

Experience an explosion of colour with our Digital Pixel RGB Strip. Control 1 digital IC chip per 3 LEDs to create a colour changing and cascading LED effect in your space. Program the Digital Pixel RGB strip to perform flash effects, single or multicolour chase effect, light curtains and gradual fades. Don't allow technology to limit your creativity, take the next step towards the future of LED strip lighting.
- Product Feature 1:
- Colour changing and cascade effect LED strip
- Product Feature 2:
- 1 Digital IC chip per 3 LEDs
- Product Feature 3:
- 12V Constant Voltage
- Product Feature 4:
- 60 LEDs per metre
- Product Feature 5:
- 14.4W per metre
https://www.youtube.com/watch?v=X3Kbup9ctSQ
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 592411 |
|---|---|
| Barcode | 5055788235149 |
| Category | Strips |
| Range Name | Digital Pixel Strip |
| Product Type | Colour strip |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Digital Pixel RGB |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 130 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative Indoor, General Lighting |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Colour Temperature Name | RGB |
|---|---|
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Digital Pixel |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 14.4 |
|---|---|
| Voltage (V) | 12 |
| Voltage Range (v) | 12 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 140 |
|---|---|
| Package Length (mm) | 210 |
| Package Width (mm) | 250 |
| Package Depth (mm) | 10 |
