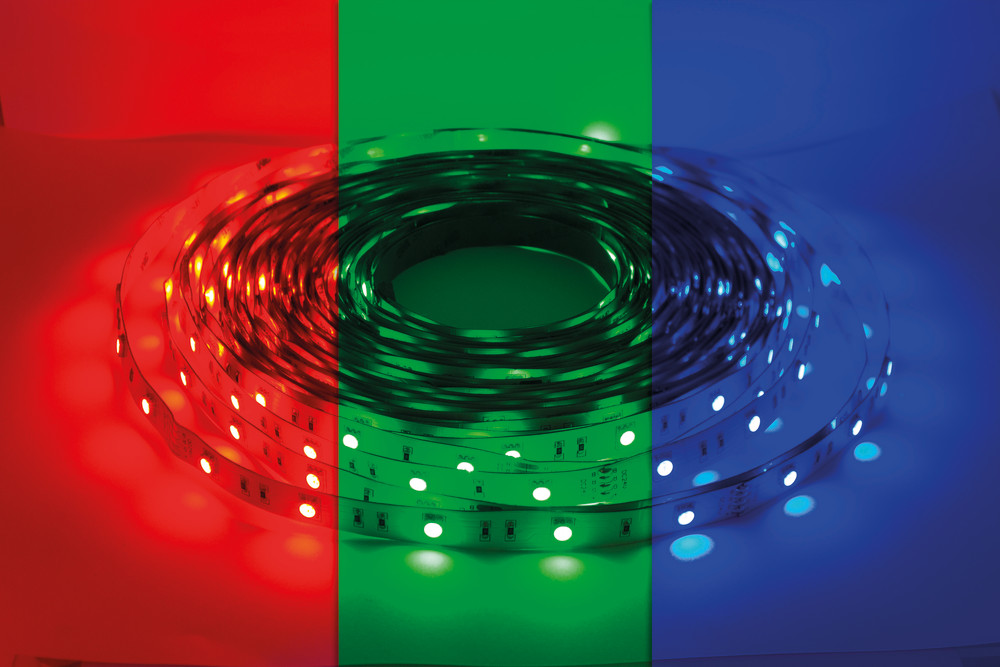

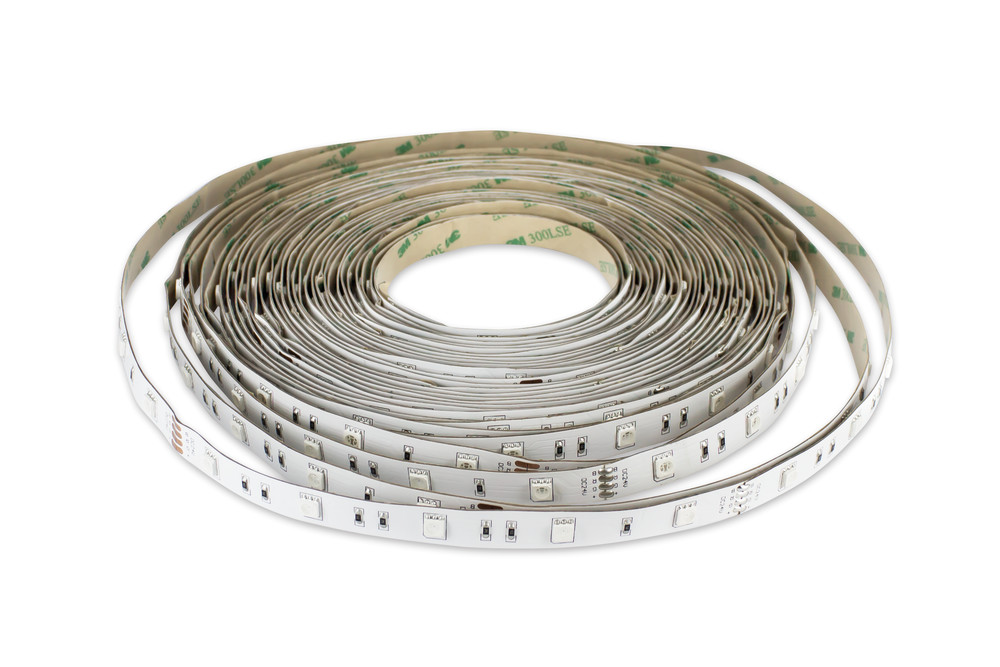

STRIP IP20 20M RGB 24V 4.8W/M 30LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBA115E
Ideal for large retail and hospitality installations, this 20 metre RGB Strip maintains a good light output with minimal voltage drop.
This 20M strip is also compatible with our new 5 metre roll (ILSTRGBA119E).
- Product Feature 1:
- RGB Colour Changing
- Product Feature 2:
- Can run up to 20 metres from one driver
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 30 LEDs per metre
- Product Feature 5:
- 4.8W per metre
- Product Feature 6:
- LED size 50:50
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
Quick Order Code | 487820 |
---|---|
Barcode | 5055788242697 |
Category | Strips |
Range Name | RGB Strip |
Product Type | Colour strip |
Market Segment | Commercial indoor, Residential indoor |
Features | RGB |
Warranty (Years) | 3 |
Physical Data
Product Width (mm) | 12 |
---|---|
Product Weight (g) | 400 |
Material | PCB |
Construction | LED surface mounted on to strip |
Strip Cut Points (mm) | 166 |
Max Run Length (m) | 20 |
Placement / Application | Decorative indoor |
Strip length (M) | 20 |
Strip Width (mm) | 12 |
Light Data
Correlated Colour Temperature (CCT) (K) | RGB |
---|---|
Colour Temperature Name | RGB |
Beam Angle | 115 |
Colour Type | RGB |
LED Size (mm) | 5050 |
LED Type | Surface mounted device (SMD) |
LEDs per meter | 30 |
Lifetime (hours) | 25000 |
Electrical Data
Power Consumption per meter (W/m) | 4.8 |
---|---|
Voltage (V) | 24 |
Voltage Range (v) | 24 |
Watts per metre | 3.1W - 6w |
Dimming | Dimmable |
Driver Included | No |
Electric Current | DC |
EN | IEC 62031 |
LVD Certified | Yes |
Environmental
EN | IEC 62031 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Hg 0% (Mercury Free) | Yes |
IP Rating (Ingress Protection) | IP20 |
Lowest Operating Temperature (°C) | -25 |
Maximum Operating Temperature (°C) | 60 |
Packaging
Package Weight (g) | 700 |
---|---|
Package Length (mm) | 380 |
Package Width (mm) | 380 |
Package Depth (mm) | 12 |
