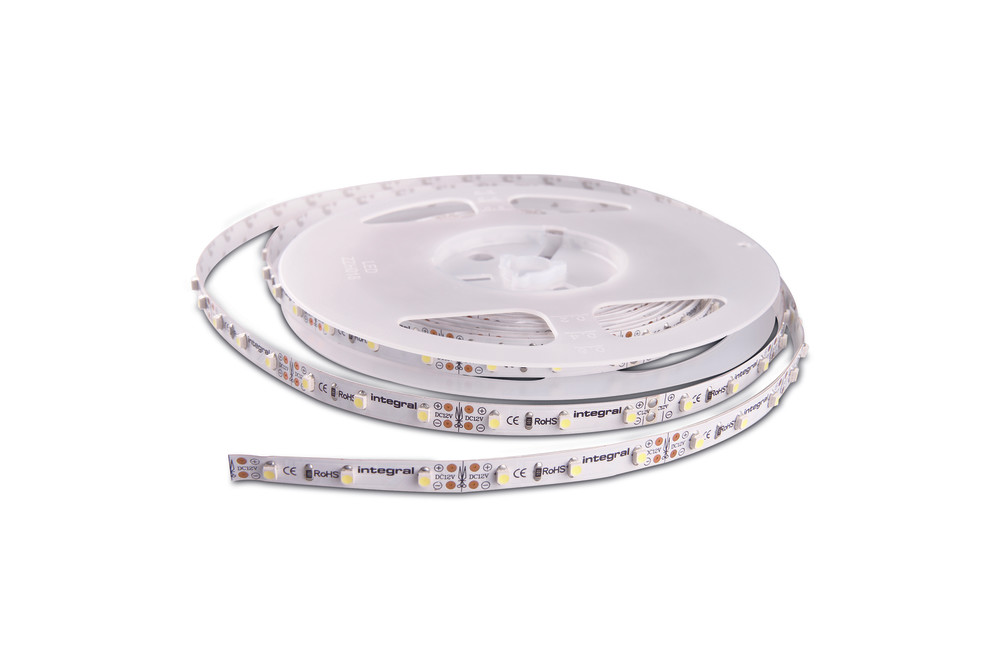

STRIP IP33 50M 6500K 12V 6W/M 460LM/M 60LED/M 8MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA105E
An entire project in one pack! This kit provides 50 metres of high quality LED strip, ideal for large installations such as bars, music venues and retail stores.
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 6W per metre
- Product Feature 4:
- LED size 35:28
- Availability:
-
9
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | '069691 |
|---|---|
| Barcode | 5055788241539 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 8 |
|---|---|
| Product Weight (g) | 98 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 8 |
Light Data
| Lumens per meter (lm/m) | 460 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 17500 |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°C) | 33 |
Packaging
| Package Weight (g) | 1050 |
|---|---|
| Package Length (mm) | 380 |
| Package Width (mm) | 380 |
| Package Depth (mm) | 13 |
