STRIP IP33 5M RGB+W 4000K 24V 12W/M 72LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBWA029E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

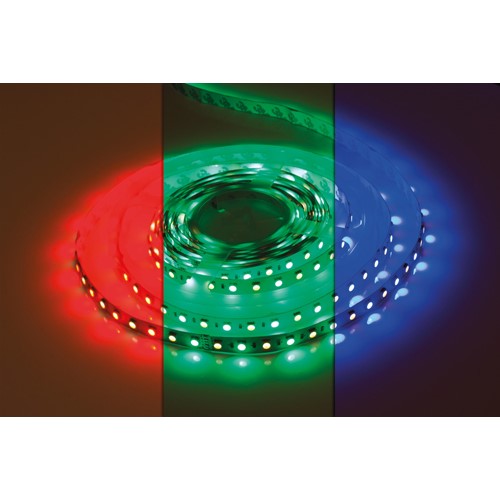

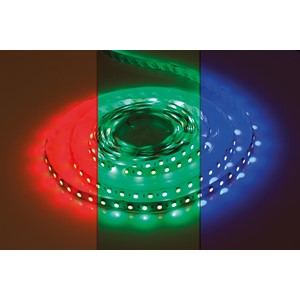

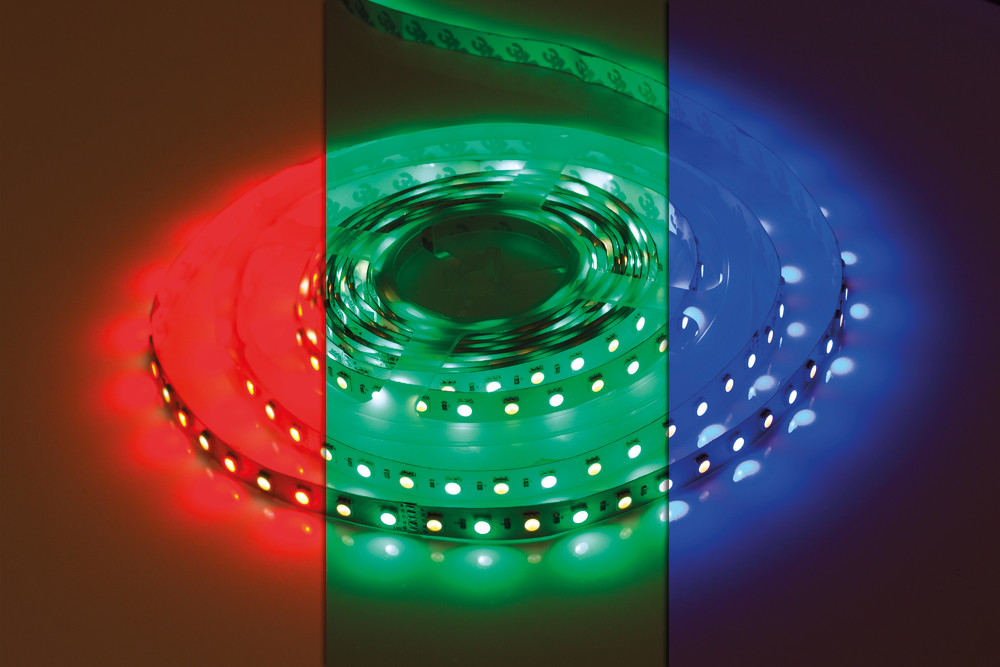

This colour changing and dimmable strip has 72 LEDs (50:50 SMD) per metre and is constructed using high quality materials to ensure consistent light and colour across the strip.
- Product Feature 1:
- RGB+W Colour Changing
- Product Feature 2:
- Cool White
- Product Feature 3:
- 24V
- Product Feature 4:
- 12W/m
- Product Feature 5:
- 72LEDs/M
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788236115 |
|---|---|
| Quick Order Code | 790223 |
| Category | Strips |
| Range Name | RGBW Strip |
| Product Type | Colour strip |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | RGB + White |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 12 |
|---|---|
| Product Weight (g) | 160 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 166 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative Indoor, General Lighting |
| Strip length (M) | 5 |
| Strip Width (mm) | 12 |
Light Data
| Energy Efficiency Label (Image) | ILSTRGBWA029E_EU_label |
|---|---|
| Colour Temperature Name | RGB+W |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | RGB+W |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 18600 |
Electrical Data
| Power Consumption per meter (W/m) | 12 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788236115 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 165 |
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 11 |
| Outer Carton Barcode | 5055788236122 |
| Qty per Outer Carton | 24 |
| Outer Carton Length (mm) | 398 |
| Outer Carton Width (mm) | 256 |
| Outer Carton Depth (mm) | 238 |
