STRIP IP65 5M RGB+W 3000K 24V 12W/M 72LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL

Part Number:

ILSTRGBWB028E

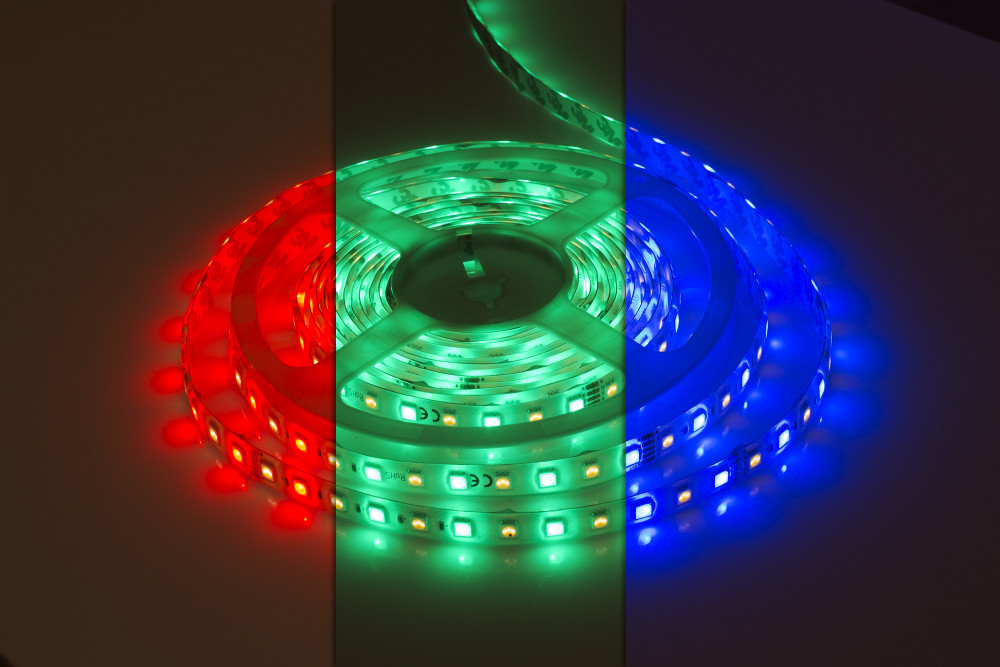

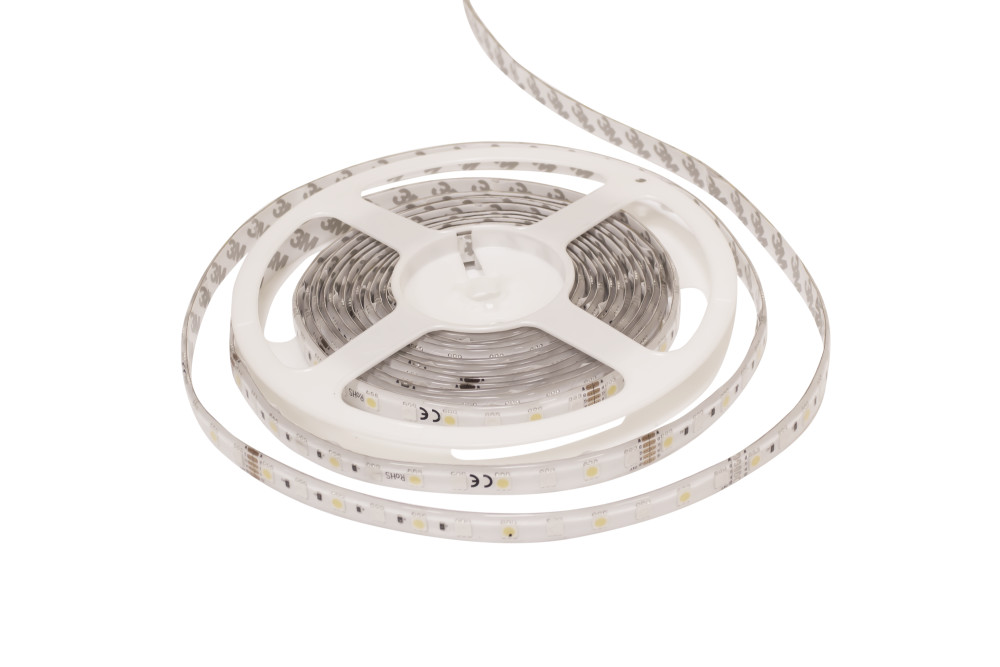

This colour changing and dimmable strip has 72 LEDs (50:50 SMD) per metre and is constructed using high quality materials to ensure consistent light and colour across the strip. With up to IP65 ingress protection this strip is suitable for indoor and outdoor applications.

Product Feature 1:
RGB+W Colour Changing
Product Feature 2:
Warm White
Product Feature 3:
24V
Product Feature 4:
12W/m
Product Feature 5:
72LEDs/M
Availability:
96

More stock due in on 13/01/2022

Suggested products

Barcode 5055788236085
Category Strips
Range Name RGBW Strip
Product Type Colour strip
Market Segment Indoor and Outdoor Commercial, Industrial, Residential
Features RGB + White
Warranty (Years) 3
Product Width (mm) 12
Product Weight (g) 280
Material PCB
Construction LED surface mounted on to strip
Strip Cut Points (mm) 166
Max Run Length (m) 5
Placement / Application Decorative Indoor, Outdoor, General Lighting
Strip length (M) 5
Strip Width (mm) 12
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature Name RGB+W
Beam Angle 115
Colour Rendering Index (CRI) 80
Colour Type RGBW
LED Size (mm) 5050
LED Type Surface mounted device (SMD)
Lifetime (hours) 15400
Power Consumption per meter (W/m) 12
Voltage (V) 24
Dimming Dimmable
Electric Current DC
EN IEC 62031
LVD Certified Yes
EN IEC 62031
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 60
Package Weight (g) 285
Package Length (mm) 205
Package Width (mm) 180
Package Depth (mm) 11
