UV STRIP IP20 5M 400-405nm 24V 14.4W/M 60LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTPURA136

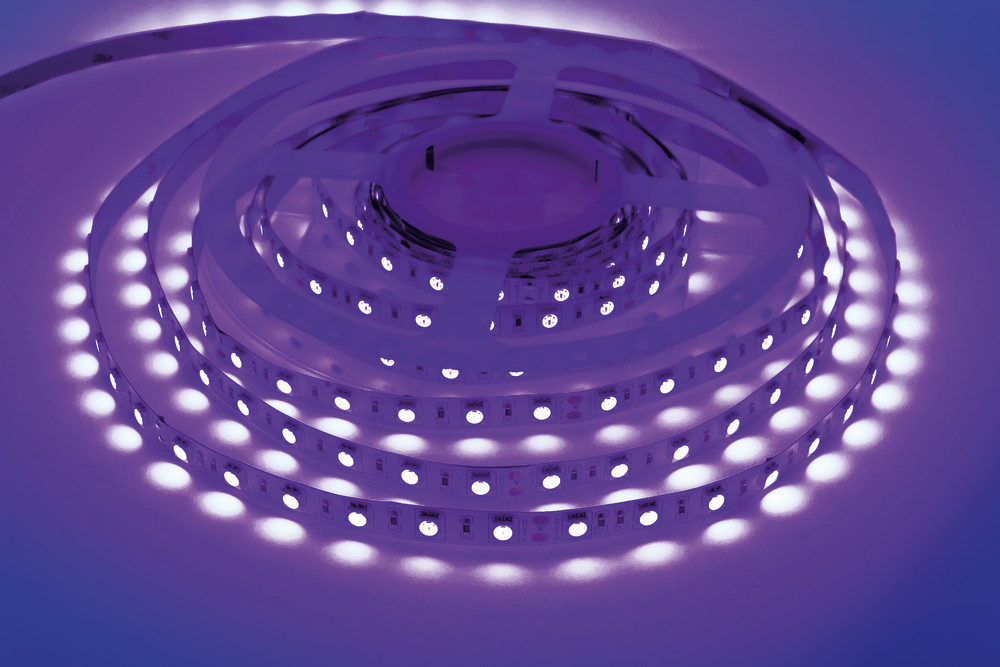

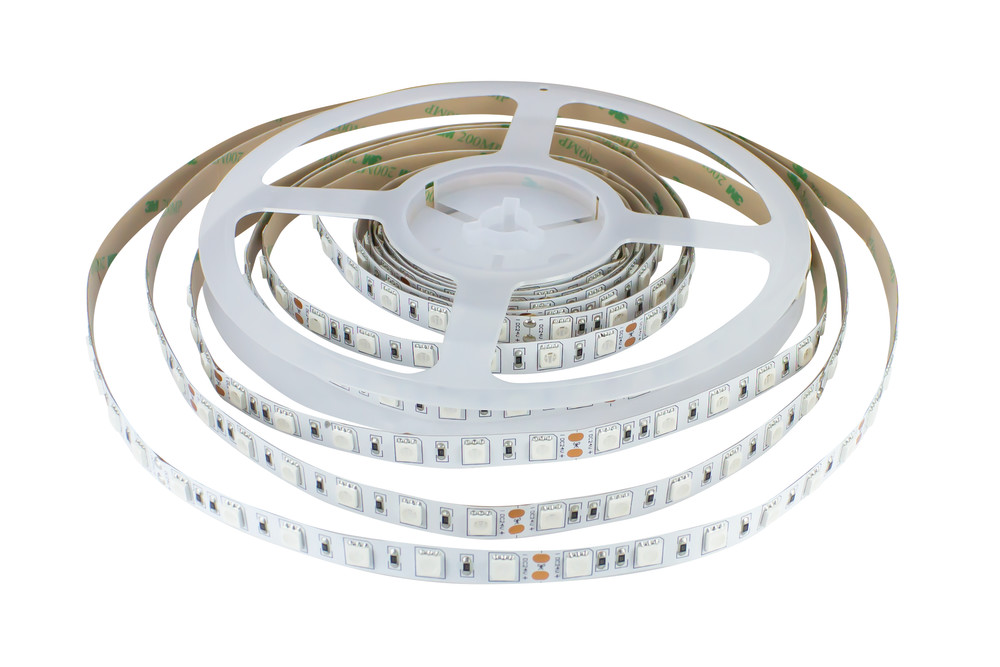

The Integral 5 metre 24V UV LED strip has 60 LEDs (50:50 SMD) per metre and is constructed using high quality components to ensure superior consistency in wavelength and light emission across the strip. The UV LED strip is designed to produce wavelength output 400-405nm and it is IP20 rated, suitable for indoor applications such as bars and nightclubs illumination and gaming rooms.
Each 5m reel is supplied with an easy-to-follow installation guide and an extra connector (connector end to strip and 15cm wire to power) to power the strip if it is cut into two lengths. 3M backing tape is pre-applied to simplify the installation process.
- Product Feature 1:
- UV Light 400-405nm wavelength
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 60 LEDs per metre
- Product Feature 4:
- 14.4W per metre
- Product Feature 5:
- LED size 50:50
- Availability:
-
52
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
Quick Order Code | 218701 |
---|---|
Barcode | 5055788251798 |
Category | Strips |
Range Name | Single Colour Strip |
Product Type | Colour strip |
Market Segment | Commercial indoor |
Features | UV Strip |
Warranty (Years) | 3 |
Physical Data
Product Width (mm) | 10 |
---|---|
Product Weight (g) | 140 |
Material | PCB |
Construction | LED surface mounted on to strip |
Strip Cut Points (mm) | 100 |
Max Run Length (m) | 5 |
Placement / Application | Decorative indoor |
Strip length (M) | 5 |
Strip Width (mm) | 10 |
Light Data
Beam Angle | 115 |
---|---|
Colour Type | Single Colour |
Instant on (Less than 1 second) | Yes |
LED Size (mm) | 5050 |
LED Type | Surface mounted device (SMD) |
LEDs per meter | 60 |
Lifetime (hours) | 25000 |
Electrical Data
Power Consumption per meter (W/m) | 14.4 |
---|---|
Voltage (V) | 24 |
Voltage Range (v) | 24 |
Watts per metre | 10.1w - 20w |
Dimming | Dimmable |
Driver Included | No |
Electric Current | DC |
EN | EN 62031, EN62471 |
LVD Certified | Yes |
Environmental
EN | EN 62031, EN62471 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Hg 0% (Mercury Free) | Yes |
IP Rating (Ingress Protection) | IP20 |
Lowest Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 45 |
Packaging
Package Weight (g) | 160 |
---|---|
Package Length (mm) | 240 |
Package Width (mm) | 210 |
Package Depth (mm) | 15 |
