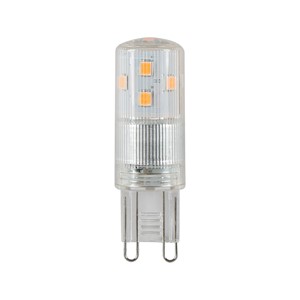

G9 BULB 300LM 2.7W 4000K DIMMABLE 300 BEAM INTEGRAL
Part Number:
ILG9DC014
This Integral LED G9 lamp offers a high lumen output in 4000K. At 3W this smooth dimming capsule lamp is highly efficient compared to the halogen lamps they are designed to replace. Ideal for pendant fittings and accent lighting in domestic, hospitality and retail applications.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 300 Lumens
- Product Feature 3:
- Dimmable with compatible dimmers
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 745854 |
|---|---|
| Barcode | 5055788260509 |
| Category | Lamps |
| Range Name | G9 |
| Product Type | G9 |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 52 |
|---|---|
| Product Width (mm) | 16 |
| Product Weight (g) | 8.5 |
| Diameter (mm) | 16 |
| Base Term | G9 |
| Bulb Base | G9 |
| Construction | Plastic heat-sink, Injection moulded diffuser |
| Globe Finish | Clear |
| Bulb Fixing | Pendant, Wall, Desktop |
| Bulb or Luminaire Shape | Cylindrical |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILG9DC014_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 300 |
| Luminous efficacy (lm/W) | 111 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 300 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | SMD |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 2.7 |
|---|---|
| Power Consumption (W) | 2.7 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 28 |
| Amperage (mA) | 16 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 15 |
|---|---|
| Package Length (mm) | 20 |
| Package Width (mm) | 20 |
| Package Depth (mm) | 54 |
| Qty per euro pallet | 36000 |
