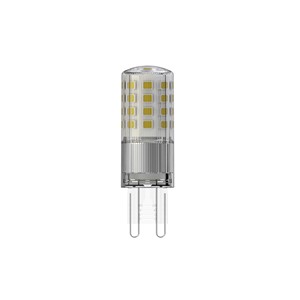

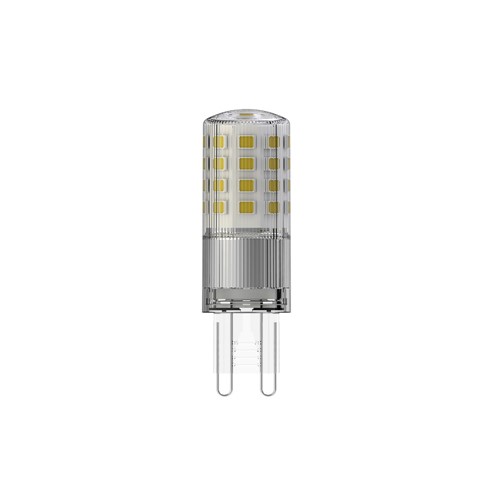

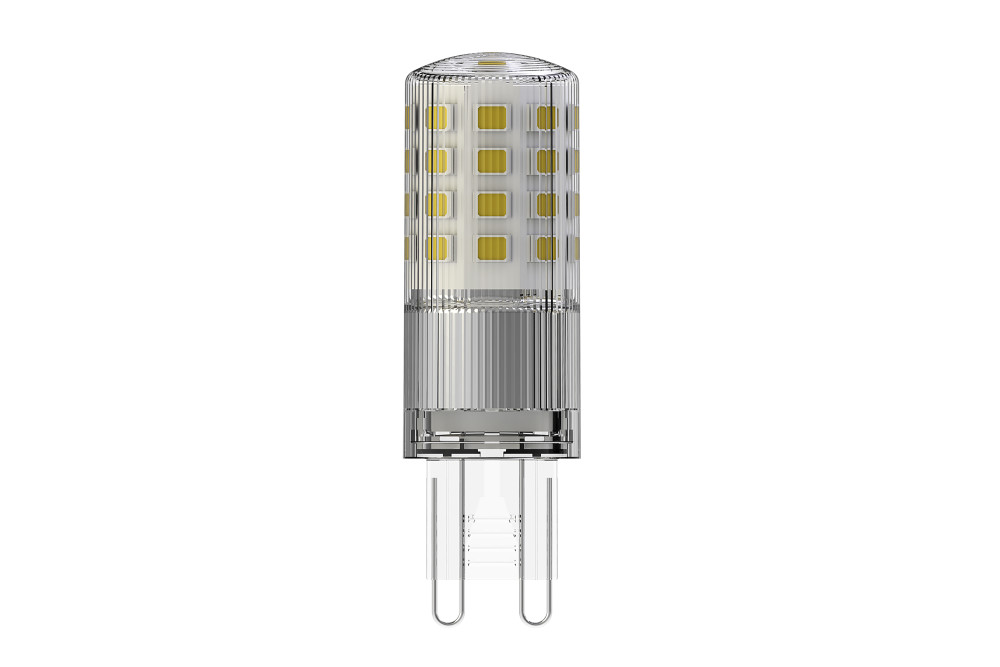

G9 BULB 470LM 4W 2700K DIMMABLE 300 BEAM INTEGRAL
Part Number:
ILG9DC017
This Integral LED G9 lamp offers a high 470lm output in 2700K. At 4W this smooth dimming capsule lamp is highly efficient compared to the halogen lamps they are designed to replace. Ideal for pendant fittings and accent lighting in domestic, hospitality and retail applications.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 470 Lumens
- Product Feature 3:
- Dimmable
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 986407 |
|---|---|
| Barcode | 5055788300038 |
| Category | Lamps |
| Range Name | G9 |
| Product Type | G9 |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 59 |
|---|---|
| Product Depth (mm) | 18 |
| Product Width (mm) | 18 |
| Product Weight (g) | 11 |
| Material | Plastic |
| Base Term | G9 |
| Bulb Base | G9 |
| Construction | Plastic heat-sink, Injection moulded diffuser |
| Globe Finish | Clear |
| Bulb or Luminaire Shape | Cylindrical |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILG9DC017_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 470 |
| Luminous efficacy (lm/W) | 117.5 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 300 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 30000 |
Electrical Data
| Power (W) | 4 |
|---|---|
| Power Consumption (W) | 4 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 40 |
| Amperage (mA) | 24 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 40 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 14 |
|---|---|
| Package Length (mm) | 20 |
| Package Width (mm) | 20 |
| Package Depth (mm) | 54 |
| Qty per euro pallet | 23040 |
