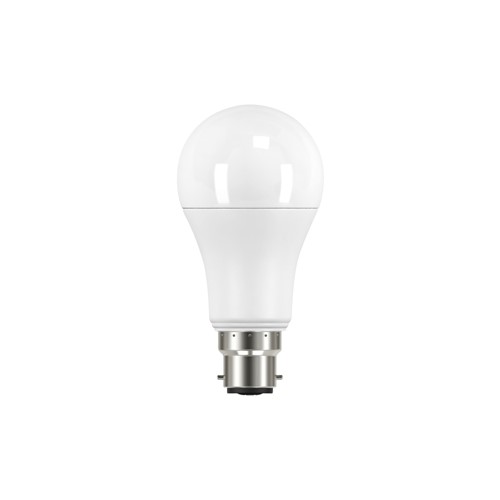

GLS BULB B22 806LM 3.8W 4000K 212LM/W CLASS A NON-DIMM 200 BEAM FROSTED INTEGRAL
Part Number:
ILGLSB22NE167
The Integral LED Max Efficiency GLS range achieves Class A energy rating with 212 lm/W, enabling savings of up to 60% on energy usage compared to other LED lamps. This 3.8W retro-fit Integral LED Max Efficiency GLS delivers a cool white light output equivalent to 60W, offering big energy savings over equivalent incandescent bulbs. With a 806 lumen output and frosted finish this lamp is ideal for rooms with a single pendant fitting, living rooms, hallways and kitchens.
- Product Feature 1:
- Energy Rating A
- Product Feature 2:
- Consumes 3.8W compared to 8.8W for a standard Frosted GLS LED bulb
- Product Feature 3:
- Cool White light
- Product Feature 4:
- 806 Lumens
- Product Feature 5:
- Non-Dimmable
- Availability:
-
100
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 685794 |
|---|---|
| Barcode | 5055788276968 |
| Category | Lamps |
| Range Name | Max Efficiency |
| Product Type | GLS |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 118 |
|---|---|
| Product Width (mm) | 60 |
| Product Weight (g) | 60 |
| Material | Plastic and Aluminium |
| Base Term | Bayonet cap |
| Bulb Base | B22 |
| Construction | Aluminium and Plastic heat-sink, Injection moulded diffuser |
| Globe Finish | Frosted |
| Globe Type | GLS |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILGLSB22NE167_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 806 |
| Luminous efficacy (lm/W) | 212 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 200 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 3.8 |
|---|---|
| Power Consumption (W) | 3.8 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 60 |
| Amperage (mA) | 34 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 60 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | A |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 74 |
|---|---|
| Package Length (mm) | 118 |
| Package Width (mm) | 58 |
| Package Depth (mm) | 58 |
| Qty per euro pallet | 1800 |
Safety Guide
ILGLSB22NE167
