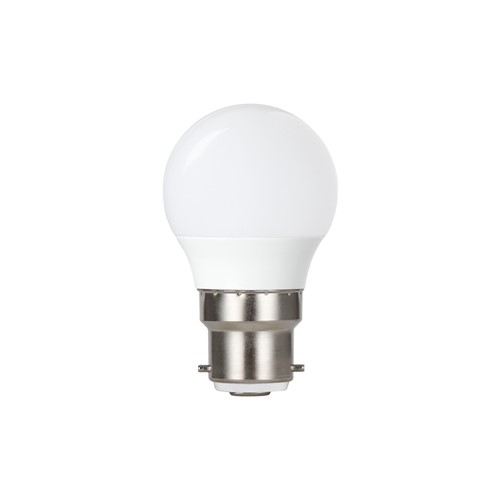

GOLF BALL BULB B22 470LM 4.2W 2700K DIMMABLE 240 BEAM FROSTED INTEGRAL
Part Number:
ILGOLFB22DC057
This 4.2W retro-fit Integral LED Mini Globe (large bayonet base) delivers a warm light and brightness, similar to a 40W filament bulb. It features high output, multi Everlight LEDs and an anti-glare refractor. Ideal for living rooms, dining rooms and bedrooms, in classic or modern wall or floor/table lamp fittings.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 470 Lumens
- Product Feature 3:
- Dimmable with compatible dimmers
- Product Feature 4:
- iWATT IC for exceptional dimming performance
- Availability:
-
500+
More stock due in on 01/03/2025
Details
| Quick Order Code | 569580 |
|---|---|
| Barcode | 5055788259541 |
| Category | Lamps |
| Range Name | Everyday |
| Product Type | Golf Ball |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 75 |
|---|---|
| Product Width (mm) | 45 |
| Product Weight (g) | 22 |
| Diameter (mm) | 45 |
| Material | Aluminium, Plastic |
| Base Term | Bayonet cap |
| Bulb Base | B22 |
| Construction | Plastic and Aluminium heat-sink |
| Globe Finish | Frosted |
| Globe Type | Golf Ball |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILGOLFB22DC057_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 470 |
| Luminous efficacy (lm/W) | 112 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 240 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Single |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 4.2 |
|---|---|
| Power Consumption (W) | 4.2 |
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 40 |
| Amperage (mA) | 22 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 40 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 32 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 50 |
| Qty per euro pallet | 3840 |
