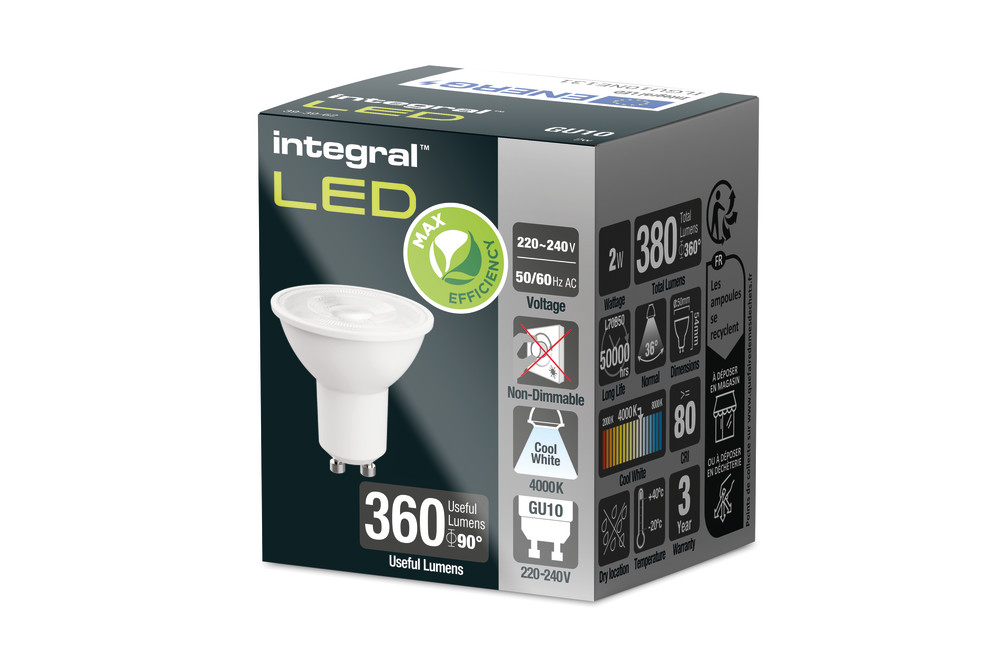

GU10 BULB 360LM 2W 4000K CLASS A NON-DIMM 36 BEAM INTEGRAL
Part Number:
ILGU10NE131
The Integral LED Max Efficiency GU10 range achieves Class A energy rating with up to 212 lm/W, enabling savings of up to 60% on energy usage compared to other LED lamps. By incorporating a stylish engineered lens in an affordable GU10, the Max Efficiency offers directional light with a beam angle that closely mirrors that of familiar halogen lamps along with all the energy-saving and long-life benefits of LED.
- Product Feature 1:
- Energy Rating A
- Product Feature 2:
- Consumes 2W compared to 3.6W for a standard GU10 LED bulb
- Product Feature 3:
- Cool White light
- Product Feature 4:
- 360 Useful Lumens (380 Nominal)
- Product Feature 5:
- Non-Dimmable
- Availability:
-
1000+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788276814 |
|---|---|
| Quick Order Code | 393962 |
| Category | Lamps |
| Range Name | Max Efficiency |
| Product Type | GU10 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 54 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 32 |
| Optic | Designed to give a Classic Look |
| Material | Plastic and Aluminium, Injection moulded diffuser |
| Base Term | GU10 |
| Bulb Base | GU10 |
| Construction | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Globe Finish | Clear |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILGU10NE131_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 380 |
| Luminous efficacy (lm/W) | 212 |
| Peak Intensity (Cd) | 600 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 360 |
Electrical Data
| Power (W) | 2 |
|---|---|
| Power Consumption (W) | 2 |
| Power Factor | 0.4 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 22 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 50 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | A |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788276814 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 41 |
| Package Length (mm) | 62 |
| Package Width (mm) | 48 |
| Package Depth (mm) | 48 |
| Inner Carton Barcode | 05055788276821 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 255 |
| Inner Carton Width (mm) | 105 |
| Inner Carton Depth (mm) | 70 |
| Outer Carton Barcode | 05055788276838 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 550 |
| Outer Carton Width (mm) | 270 |
| Outer Carton Depth (mm) | 165 |
| Qty per euro pallet | 4000 |
Safety Guide
ILGU10NE131
