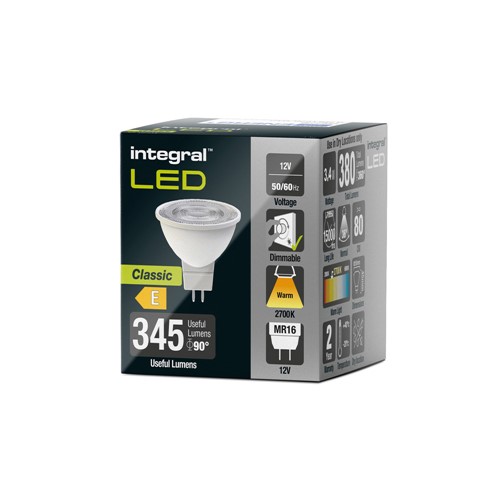

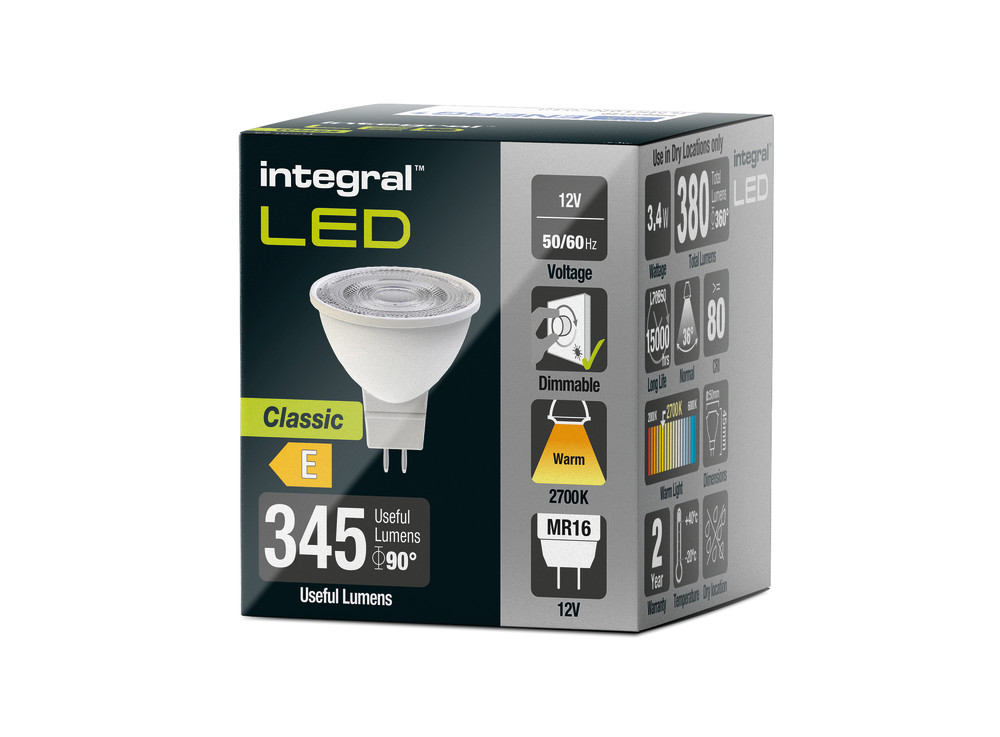

CLASSIC MR16 BULB GU5.3 380LM 3.4W 2700K DIMMABLE 36 BEAM INTEGRAL

Part Number:

ILMR16DC049

The Integral LED Classic MR16 range offers a fantastic ratio of value and performance. By incorporating a stylish engineered lens in an affordable spotlight, the Classic offers directional light with a beam angle that closely mirrors that of familiar halogen lamps along with all the energy-saving and long-life benefits of LED.

Product Feature 1:
Warm Light
Product Feature 2:
345 Useful Lumens (380 Nominal)
Product Feature 3:
Dimmable
Availability:
500+

More stock due in on 05/10/2022

Quick Order Code 738476
Barcode 5055788264064
Category Lamps
Range Name Classic
Product Type MR16
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Warranty (Years) 2
Product Length (mm) 45
Product Weight (g) 34
Diameter (mm) 50
Optic Designed to give a Classic Look
Material Plastic and Aluminium heat-sink, Injection moulded diffuser
Base Term GU5.3
Bulb Base MR16
Construction Plastic White and "Classic look" diffuser lens
Bulb Fixing Downlight
Bulb or Luminaire Shape Round
Placement / Application Indoor, General Lighting
Spot Type SMD with "COB like effect"
Energy Efficiency Label (Image) ILMR16DC049_EU_label
Luminous Flux in Lumens (lm) 380
Luminous efficacy (lm/W) 111
Peak Intensity (Cd) 700
Correlated Colour Temperature (CCT) (K) 2700
Colour Temperature 2700K - Warm
Colour Temperature Name Warm
Beam Angle 36
Colour Rendering Index (CRI) 80
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 15000
Switching Cycles 7500
Useful Lumens (lm) 345
Power (W) 3.4
Power Consumption (w) 3.4
Power Factor 0.9
Wattage equivalent (W) 35
Amperage (mA) 410
Dimming Dimmable
Driver Included No, needs 12V AC Transformer
Electric Current AC
True Wattage Eq (W) 35
EN EN-62560
LVD Certified Yes
EN EN-62560
LVD Certified Yes
CE RoHS Yes
Previous Energy Rating A+
New Energy Rating E
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 54
Package Length (mm) 60
Package Width (mm) 55
Package Depth (mm) 55
Qty per euro pallet 3300

Product Specification Sheet
