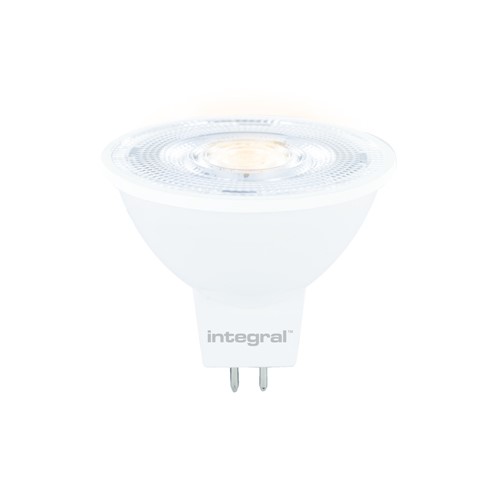

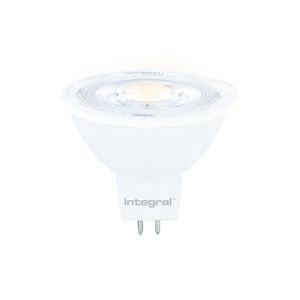

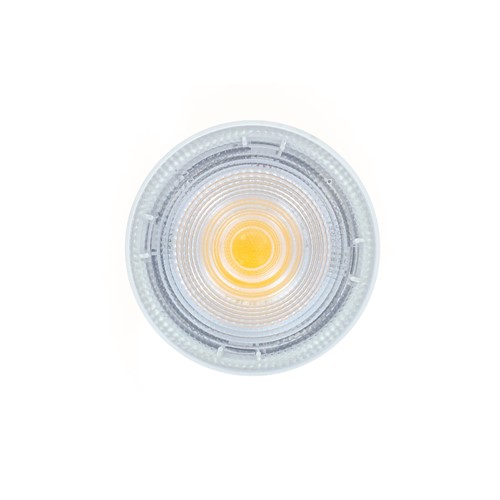

CLASSIC MR16 BULB GU5.3 690LM 6.1W 2700K DIMMABLE 36 BEAM INTEGRAL
Part Number:
ILMR16DC039
The Integral LED Classic MR16 range offers a fantastic ratio of value and performance. By incorporating a stylish engineered lens in an affordable spotlight, the Classic offers directional light with a beam angle that closely mirrors that of familiar halogen lamps along with all the energy-saving and long-life benefits of LED.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- Dimmable
- Product Feature 3:
- 621 Useful Lumens (690 Nominal)
- Availability:
-
500+
More stock due in on 20/05/2025
Details
| Quick Order Code | 294072 |
|---|---|
| Barcode | 5055788230786 |
| Category | Lamps |
| Range Name | Classic |
| Product Type | MR16 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 45 |
|---|---|
| Product Depth (mm) | 50 |
| Product Width (mm) | 50 |
| Product Weight (g) | 36 |
| Diameter (mm) | 50 |
| Optic | Designed to give a Classic Look |
| Material | Plastic and Aluminium heat-sink, Injection moulded diffuser |
| Base Term | GU5.3 |
| Bulb Base | MR16 |
| Construction | Plastic White and "Classic look" diffuser lens |
| Bulb Fixing | Downlight |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILMR16DC039_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 690 |
| Luminous efficacy (lm/W) | 113 |
| Peak Intensity (Cd) | 1100 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 621 |
Electrical Data
| Power (W) | 6.1 |
|---|---|
| Power Consumption (W) | 6.1 |
| Power Factor | 0.4 |
| Voltage Range (v) | 12 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 520 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | No, needs 12V AC Transformer |
| Electric Current | AC |
| True Wattage Eq (W) | 50 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Length (mm) | 55 |
|---|---|
| Package Width (mm) | 55 |
| Package Depth (mm) | 60 |
| Qty per euro pallet | 3300 |
