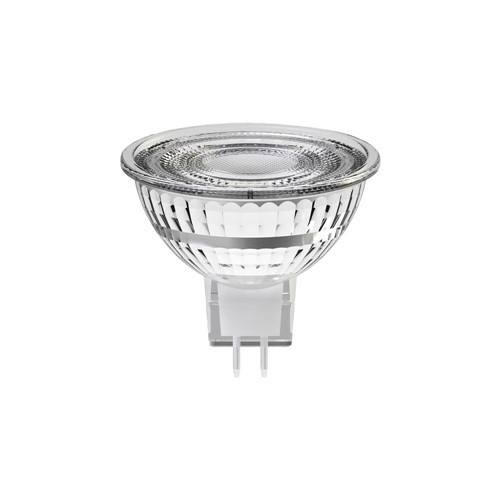

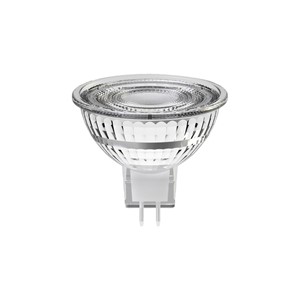

GLASS MR16 BULB GU5.3 380LM 3.4W 4000K NON-DIMM 36 BEAM INTEGRAL
Part Number:
ILMR16NE045
The glass body and cleverly engineered surface mounted LEDs of the Integral LED Glass MR16 range give them an attractive look that is very similar to traditional halogen lamps. These MR16 lamps will retrofit easily into existing fittings and provide significant energy savings and longer lifetime than the halogen lamps they are designed to replace.
- Product Feature 1:
- Cool White Light
- Product Feature 2:
- 345 Useful Lumens (380 Nominal)
- Product Feature 3:
- Non-Dimmable
- Availability:
-
500+
More stock due in on 01/03/2025
Details
| Quick Order Code | 848764 |
|---|---|
| Barcode | 5055788259886 |
| Category | Lamps |
| Range Name | Glass |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 44 |
|---|---|
| Product Width (mm) | 50 |
| Product Weight (g) | 36 |
| Optic | Designed to give a Halogen look |
| Material | Aluminium, Glass |
| Base Term | GU5.3 |
| Bulb Base | MR16 |
| Construction | Glass with Aluminium heat-sink, Injection moulded diffuser |
| Globe Finish | Dichroic look |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD with "COB like effect" |
Light Data
| Energy Efficiency Label (Image) | ILMR16NE045_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 380 |
| Luminous efficacy (lm/W) | 111 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Single |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power Consumption (W) | 3.4 |
|---|---|
| Power Factor | 0.4 |
| Voltage Range (v) | 12 |
| Wattage equivalent (W) | 35 |
| Amperage (mA) | 440 |
| Dimming | Non-Dimmable |
| Driver Included | No, needs 12V AC Transformer |
| Electric Current | AC |
| True Wattage Eq (W) | 35 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 48 |
|---|---|
| Package Length (mm) | 60 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 55 |
