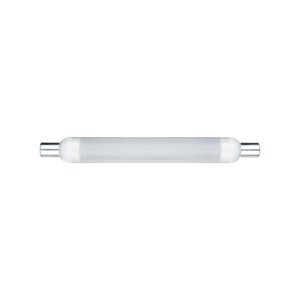

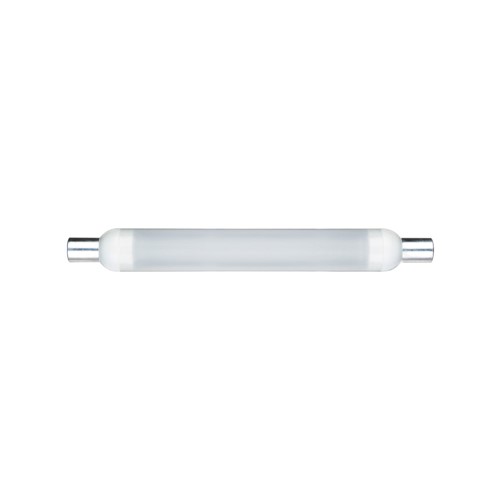

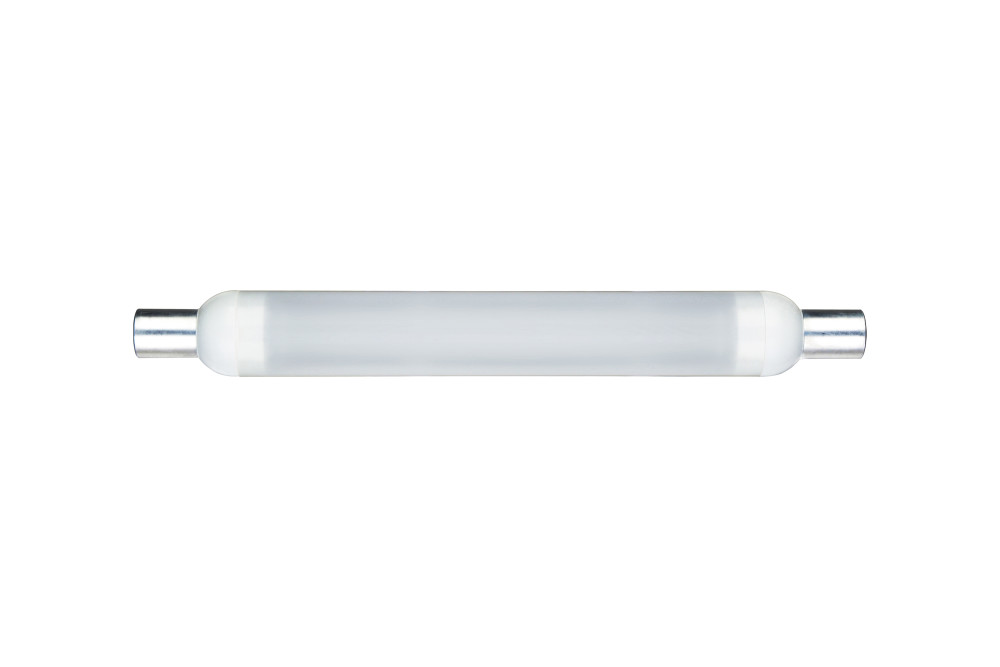

S15 221MM TUBULAR STRIPLIGHT 350LM 3W 2700K NON-DIMMABLE 140 BEAM INTEGRAL
Part Number:
ILS15NC001
Make your home more energy efficient with this S15 LED striplight. A popular solution for picture lights and vanity / shaving lights, the striplight has been designed to replace outdated S15 fluorescent and tungsten models, ensuring you can continue using your existing fittings whilst decreasing energy consumption.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 350 Lumens
- Product Feature 3:
- Non-Dimmable
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788291855 |
|---|---|
| Quick Order Code | 054386 |
| Category | Lamps |
| Range Name | Everyday |
| Product Type | S15 |
| Product Body Finish | Matt white |
| Market Segment | Residential Indoor, Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 221 |
|---|---|
| Product Width (mm) | 26 |
| Product Weight (g) | 26 |
| Material | Plastic and Aluminium, Injection moulded diffuser |
| Base Term | S15 |
| Bulb Base | S15 |
| Construction | Plastic body, Aluminium base |
| Globe Finish | Frosted |
| Globe Type | S15 Striplight |
| Bulb or Luminaire Shape | Tubular |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILS15NC001_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 350 |
| Luminous efficacy (lm/W) | 117 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 140 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 3 |
|---|---|
| Power Consumption (W) | 3 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 32 |
| Amperage (mA) | 28 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| True Wattage Eq (W) | 32 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A+ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -15 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788291855 |
|---|---|
| Package Weight (g) | 44.5 |
| Package Length (mm) | 223 |
| Package Width (mm) | 26 |
| Package Depth (mm) | 26 |
| Qty per euro pallet | 4800 |
