COB HIGH UNIFORMITY PRO STRIP IP20 5M PACK 2400 TO 6000K 24V 15W/M 1303LM/M CRI90+ 512LED/M 10MM WIDTH BUILT-IN STEEL LINING
Part Number:
ILSTCTCA331E

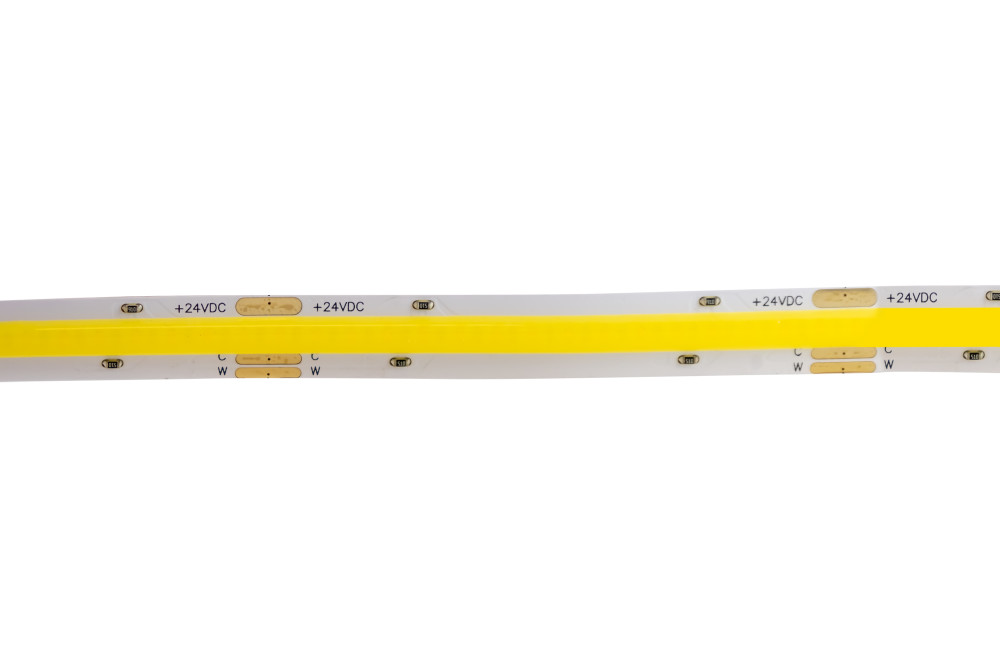

This specialist range LED strip utilises ultra-small LEDs arranged in a close formation to effectively eliminate the visible shadow present in many LED strips. This creates the effect of one continuous line of light, without the need of installation in a profile with frosted diffuser, whilst the integrated thermal management and gold immersion of the conductive material guarantee outstanding longevity and reliability.
This High Uniformity Pro strip is designed to output multiple colour temperature levels from 2400K (Very Warm) to 6000K (Cool Daylight), which makes it an excellent choice for any space that requires both task lighting and mood lighting so you are able to adjust the colour tone to match the activity.
With its high colour rendering (CRI 90), your colours will appear more vibrant and better defined than with a standard LED strip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other products at their best.
Each 5m reel is supplied with an easy-to-follow installation guide and one extra connector to power the strip if it is cut into two lengths.
A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
Additional accessories are available to purchase (see suggested products below).
- Product Feature 1:
- Very-Warm to Cool Daylight
- Product Feature 2:
- 15W per metre
- Product Feature 3:
- 512 LED's per metre
- Product Feature 4:
- 24V DC Constant Voltage
- Product Feature 5:
- Gold-immersed circuit board and solder contacts
- Product Feature 6:
- Integrated stainless steel heat sink
- Product Feature 7:
- 5-metre pack
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 572981 |
|---|---|
| Barcode | 5055788279730 |
| Category | Strips |
| Range Name | High Uniformity Pro |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Spotless |
| Warranty (Years) | 5 |
Physical Data
| Strip Cut Points | 62.5 |
|---|---|
| Product Width (mm) | 10 |
| Material | PCB |
| Construction | LED integrated into strip PCB |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
| Length (m) | 5 |
Light Data
| Luminous efficacy (lm/W) | 87 |
|---|---|
| Lumens per meter (lm/m) | 1303 |
| Correlated Colour Temperature (CCT) (K) | 2400 to 6000 |
| Colour Temperature Name | Colour Temperature Changing |
| Beam Angle | 140 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LEDs per meter | 512 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 15 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 60598, IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 60598, IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 200 |
|---|---|
| Package Length (mm) | 245 |
| Package Width (mm) | 215 |
| Package Depth (mm) | 12 |
