STRIP IP33 5M GREEN 12V 6W/M 60LEDS/M 8MM WIDTH 115 BEAM BOX PACK INTEGRAL
Part Number:
ILSTGREA007W

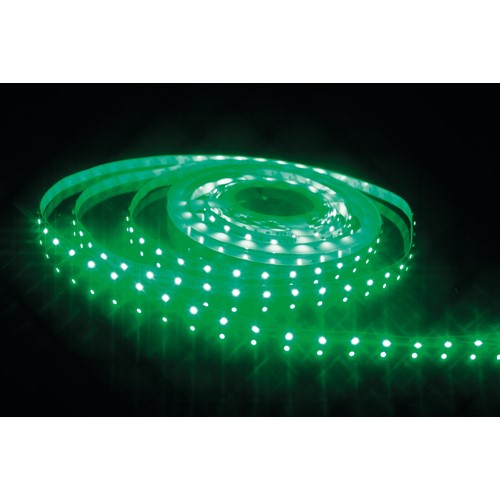

This green LED strip has 60 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and an extra connector (Connector end to strip and 15cm wire to power) to power the strip if it is cut into two lengths. 3M backing tape is pre-applied to simplify the installation process.
Additional accessories are available, to suit specific installation requirements.
- Product Feature 1:
- Green light
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 6W per metre
- Product Feature 4:
- LED size 35:28
- Availability:
-
22
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 971346 |
|---|---|
| Barcode | 5055788200499 |
| Category | Strips |
| Range Name | Single Colour Strip |
| Product Type | Colour strip |
| Market Segment | Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 8 |
|---|---|
| Product Weight (g) | 94 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Luminous efficacy (lm/W) | 40 |
|---|---|
| Lumens per meter (lm/m) | 240 |
| Colour Temperature Name | Green |
| Beam Angle | 115 |
| Colour Type | Single Colour |
| LED Size (mm) | 3528 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 12 |
| Voltage Range (v) | 12 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP33 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 132 |
|---|---|
| Package Length (mm) | 174 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 17 |
